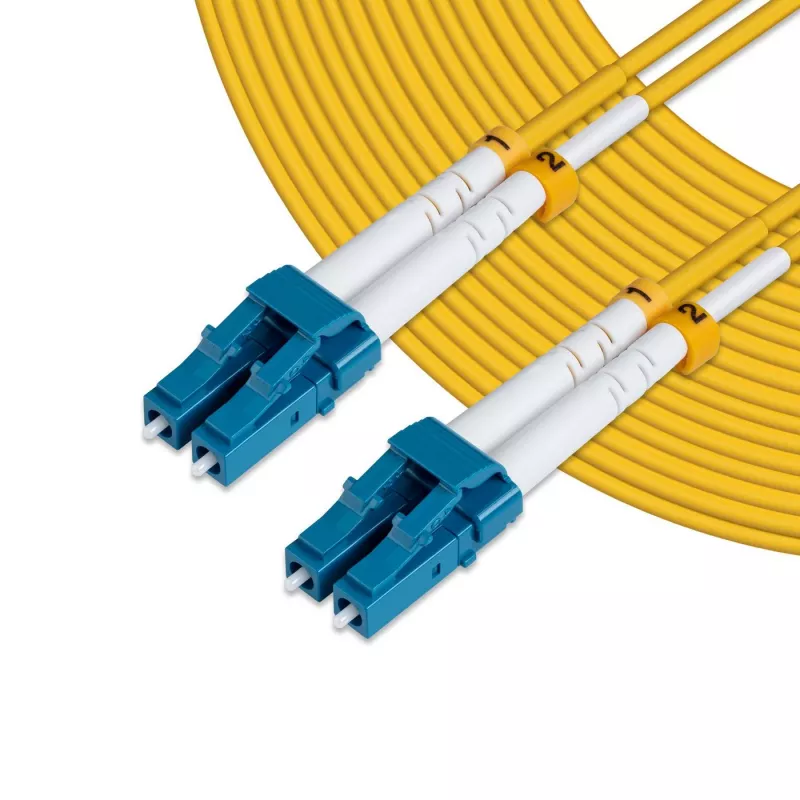

Καλώδιο patch οπτικής ίνας MicroConnect FIB441006 OS2 6 m LC–LC κίτρινο

MicroConnect FIB441006 is a single‑mode fibre optic patch cable with OS2 fibre and LC–LC connectors in a 6 m length. The cable features a 9 µm core diameter and a yellow jacket for easy visual identification in patch panels and cable management systems. Designed for high‑speed Ethernet and InfiniBand links, it supports full‑duplex connections and is built with LSZH jacket material that conforms to common industry standards for data‑centre and telecom environments.

Advantages

This 6 m OS2 patch cable provides low attenuation for long‑reach transmissions and is compatible with 1G/10G/40G/100G Ethernet equipment. The LC–LC connector pair ensures compact duplex connections suitable for high‑density racks and modules. The yellow outer jacket simplifies cable identification while the LSZH construction reduces toxic smoke and corrosive gas emissions in case of fire, making it appropriate for enclosed spaces such as server rooms and telecom closets.

Suitable for

• Data‑centre patching and rack interconnects
• Enterprise network backbone and access links
• Telecom rooms and server farms
• Cloud storage networks and high‑speed point‑to‑point links
• Connections requiring 1G, 10G, 40G or 100G Ethernet

Key specifications

• Fibre type: Single‑mode OS2, 9 µm core diameter
• Connectors: LC to LC, duplex
• Length: 6 m
• Jacket: LSZH (low smoke zero halogen)
• Colour: Yellow
• Typical reach: up to 10 km at 1310 nm, up to 40 km at 1550 nm
• Weight: 0.009 kg

How to use

Route the MicroConnect FIB441006 patch cable between the two LC‑compatible ports, ensuring connectors are clean before insertion to maintain signal integrity. Align the duplex connector clips with the adapter or transceiver and insert until a click confirms engagement. Use proper bend radius practices and secure the cable within cable management trays to avoid stress on the fibre. For removal, depress the connector latch and pull straight out without twisting.

Recommendations

Inspect and clean connector endfaces with suitable fibre cleaning tools before each connection. Maintain minimum bend radius as specified by fibre manufacturer, avoid repeated tight bends, and store unused patch cords in protective reels or holders. Use this OS2 single‑mode cable for long‑reach links and applications that require low attenuation and high bandwidth performance.
