Origin Storage DS3678-ER2F003VZWW Συσκευή ανάγνωσης barcode

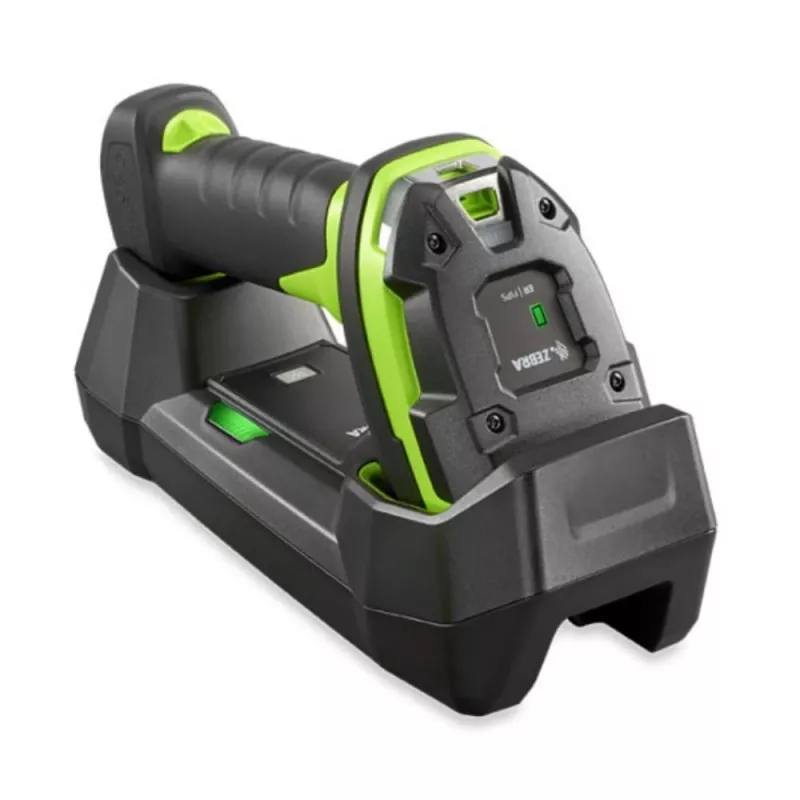

The Zebra DS3678-ER handheld bar code reader is an ultra-rugged 1D/2D scanner designed for demanding warehouse and industrial environments. Available in corded (DS3608-ER family) and cordless (DS3678-ER) configurations, it captures barcodes from near contact to distances up to 70 ft (21.4 m) and supports a wide range of linear and 2D symbologies. The device is dust-tight and rated IP67, with an IP65-sealed cradle for cordless deployments, and offers wired and wireless connectivity plus a long-life 3100 mAh Lithium-Ion battery in cordless models.

Advantages

The DS3678-ER delivers consistent high-performance scanning across a variety of conditions, reading damaged, dirty, poorly printed or shrink-wrapped barcodes as well as small picklist codes and large labels on pallets. Its ultra-rugged construction provides protection against dust, water and impacts appropriate for freezer and warehouse floors. Manageability features include remote configuration and firmware updates, data formatting for direct integration with business applications, and battery monitoring for cordless units.

Suitable for

• Warehouse order picking and pallet handling
• Inventory management in distribution centers
• Receiving and shipping operations
• Cold storage and freezer environments
• Manufacturing floor tracking

Key specifications

• Scanner type: 1D/2D handheld
• Capture range: near contact up to 70 ft / 21.4 m
• Sensor type: Laser
• Connectivity: Wired and wireless (cordless model range up to ~100 m line of sight)
• Battery (cordless): 3100 mAh Lithium‑Ion
• Durability: IP67-rated (scanner), IP65-sealed cradle
• Weight: 0.436 kg
• Supported 1D codes: U.P.C., Plessey, MSI, GS1-128, Code 93, Code 39, Code 128, Code 11, Codabar
• Supported 2D codes: Composite Codes, Aztec, QR Code, Data Matrix, Han Xin, MaxiCode, Micro QR, MicroPDF417, PDF417, TLC-39
• Colour options: Black, Green

How to use

Power on the scanner or cradle according to the supplied quick start instructions and pair the cordless DS3678-ER with its cradle or host system if using wireless mode. Aim the scanner at the barcode and press the trigger; the device will decode barcodes from near contact to long range automatically. For wired use, connect the scanner to the host via the appropriate interface cable. Use the management tools to configure data formatting, prefix/suffix settings and communication parameters before integrating with business applications.

Recommendations

For optimal performance, keep the scanner’s window clean and follow Zebra’s recommended maintenance schedule. Use the cordless model’s battery monitoring and charging cradle to maintain uptime. When scanning small or damaged codes, position the scanner closer and ensure steady aiming; for long-range scans, reduce ambient glare and stable mounting or hand positioning. Configure data formatting in advance to ensure seamless data capture into your systems.
