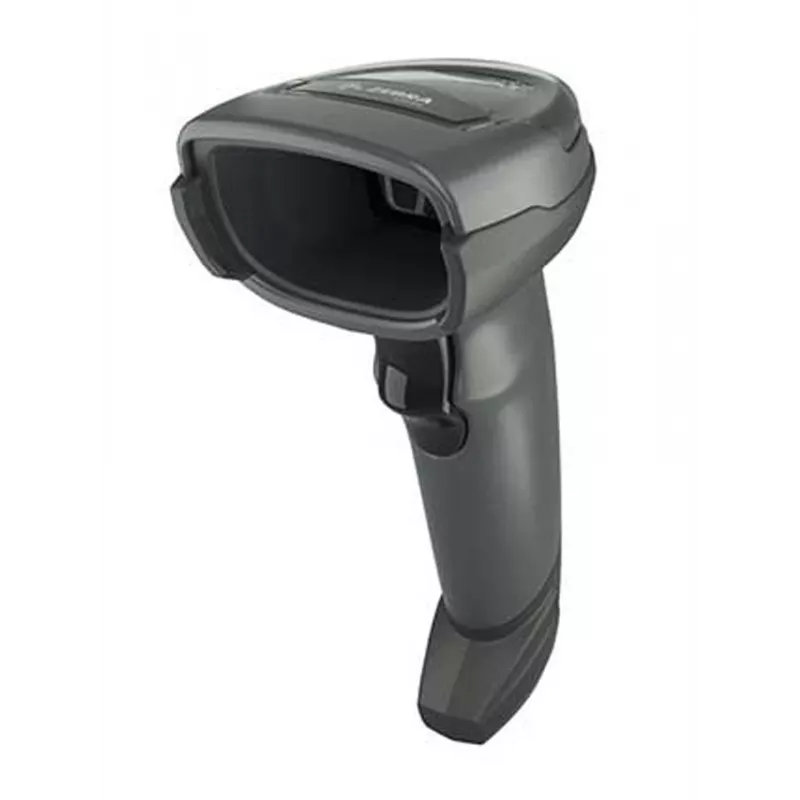

Zebra DS4608-SR Φορητός αναγνώστης barcode 1D/2D LED Μαύρο

The Zebra DS4608-SR handheld bar code reader is a versatile 1D/2D scanner designed for retail environments. Its durable construction with an IP52 rating and lightweight design make it suitable for prolonged use at checkout and around the store. The DS4608-SR captures a wide range of barcodes, reads mobile barcodes and IDs, and offers a long scan range to speed up transactions and reduce line shrink.

Advantages

The DS4608-SR delivers an industry-leading 28-inch scan range on UPC codes and a bright aim dot for quick scanning of bulky items without leaving the register. Its 800 MHz microprocessor, high-resolution imaging sensor and PRZM Intelligent Imaging enable fast, reliable capture of damaged, small or difficult barcodes. Additional capabilities include Intelligent Document Capture for automatic image orientation and enhancement, multi-barcode capture, OCR for travel documents, optional U.S. driver’s license parsing and support for EAS tag deactivation. The unit is wired for reliable connectivity and is lightweight for comfortable handheld use.

Suitable for

• Retail checkout lanes and point-of-sale scanning
• Returns and customer service desks (ID and license scanning)
• Jewellery and small-item barcode capture
• Package and shipping label scanning with wide-format barcodes
• Mobile coupon and smartphone barcode scanning

Key specifications

• Scanner type: 1D/2D
• Sensor type: LED high-resolution megapixel sensor
• Scan range: up to 28 inches on UPC codes
• Processor: 800 MHz microprocessor
• Connectivity: Wired (USB)
• Ingress protection: IP52
• Weight: 0.1619 kg
• Supported 1D codes: Code 93, UPC-E, PDF417, MSI, GS1 DataBar, Code 39, Code 128, Code 11, Codabar
• Supported 2D codes: Composite Codes, TLC-39, QR Code, PDF417, Micro QR Code, MaxiCode, Han Xin, Dot Code A, Data Matrix, Aztec Code
• Colour: Black

How to use

Connect the DS4608-SR to the host device using the supplied USB cable. Position the scanner so the aim dot is visible on the barcode and pull the trigger to capture the code; the scanner will automatically decode 1D and 2D barcodes and send data over the wired connection. For mobile phone barcodes or IDs, position the screen or document within the scanner’s field of view and allow the imager to focus; Intelligent Document Capture will auto-orient and enhance captured images when enabled. Consult the device manual for configuration options like multi-barcode capture and driver’s license parsing.

Recommendations

For best results, keep the scanner’s window clean and avoid extreme angles when reading small or damaged barcodes. Use the bright aim dot to align bulky items in carts without moving them to the counter. Configure multi-barcode or single-barcode extraction according to your workflow to reduce data-entry steps.
