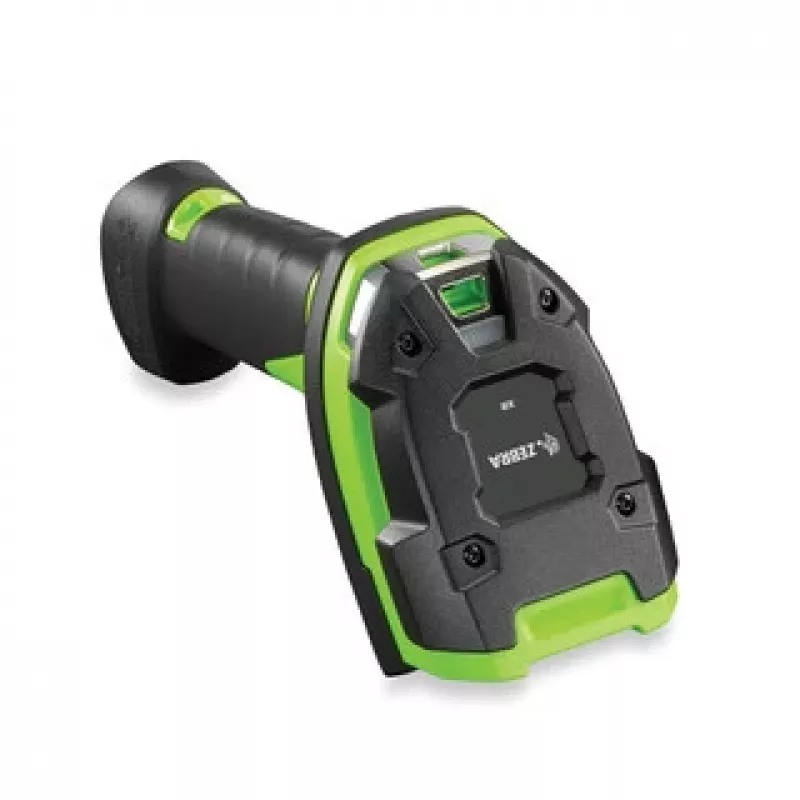

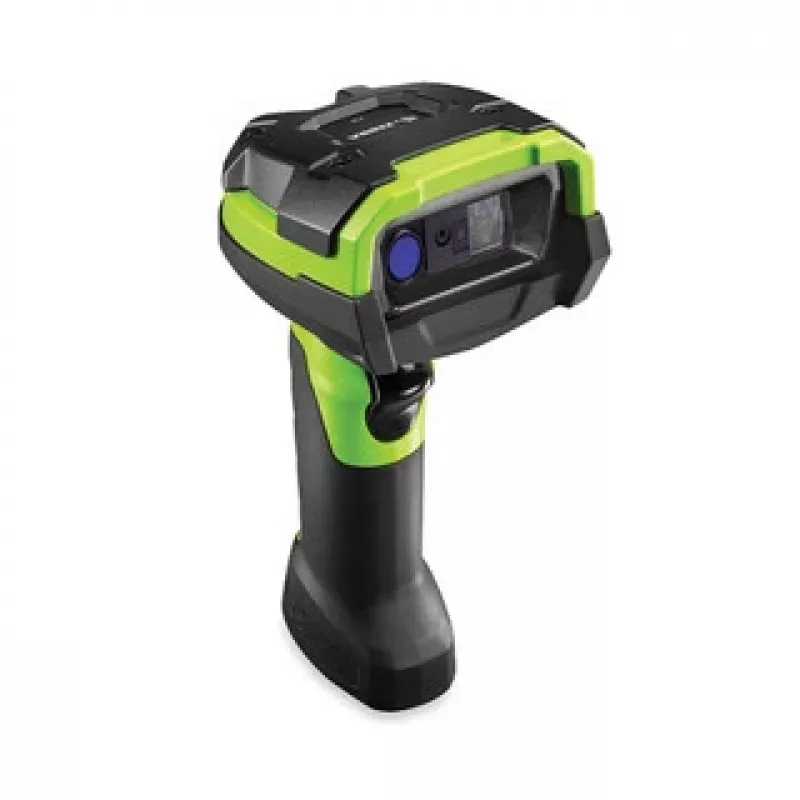

Zebra DS3608-XR3U4602ZVW Σαρωτής barcode φορητός σαρωτής barcode 1D/2D Οπτικός Μαύρο, Πράσινο

The Zebra DS3608-XR is a rugged handheld 2D imager barcode scanner supplied as a USB kit and TAA compliant. Designed for extended-range scanning, it captures both 1D and 2D barcodes from labels and screens, including in harsh industrial environments. The kit includes a USB interface cable and supports multi-interface connectivity for RS232, keyboard wedge and USB, with an IP67 rating and enhanced vibration resistance for reliable operation in warehouses, logistics and retail settings.

Advantages

The DS3608-XR provides extended-range imaging capability using the SE5800 engine, enabling accurate capture of small, dense and high-density barcodes as well as barcodes at greater distances. Its durable construction meets IP67 ingress protection and resists vibration, reducing downtime in demanding environments. Multi-interface support simplifies integration with existing systems, and the included USB cable allows quick setup as a plug-and-play USB kit.

Suitable for

• Warehouse inventory and pallet scanning
• Dock and logistics barcode reading at varying distances
• Retail point-of-sale and backroom scanning
• Industrial environments requiring rugged, IP67-rated devices

Key specifications

• Model: Zebra DS3608-XR (MPN: DS3608-XR3U4602ZVW)
• Imager: 2D imager, SE5800 (extended range)
• Connectivity: multi-interface (RS232, keyboard wedge, USB); USB cable included (2 m)
• Compliance: TAA compliant
• Protection: IP67-rated; enhanced vibration resistance
• Color: black with green accents

How to use

Connect the scanner to a host using the included 2 m USB cable or configure it for RS232 or keyboard wedge operation if required. Point the imager at the barcode and press the trigger to scan; the SE5800 extended-range engine will acquire 1D and 2D codes from labels, screens or at distance. Use the device programming guides and configuration barcodes from Zebra to set interface modes, symbologies and beeper/LED feedback preferences before deployment.

Recommendations

For reliable long-range performance, ensure the scanner is used within the recommended working distances for the SE5800 engine and keep the imager window clean. In harsh environments, mount or store the scanner to minimize exposure to impacts when not in use, and verify host interface settings during initial setup to prevent integration issues.
