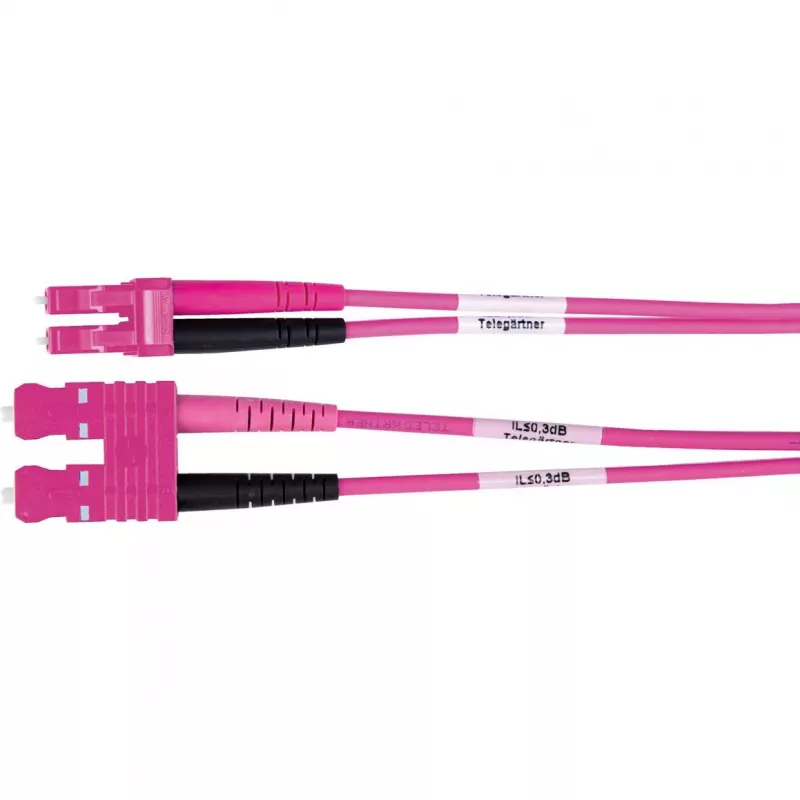

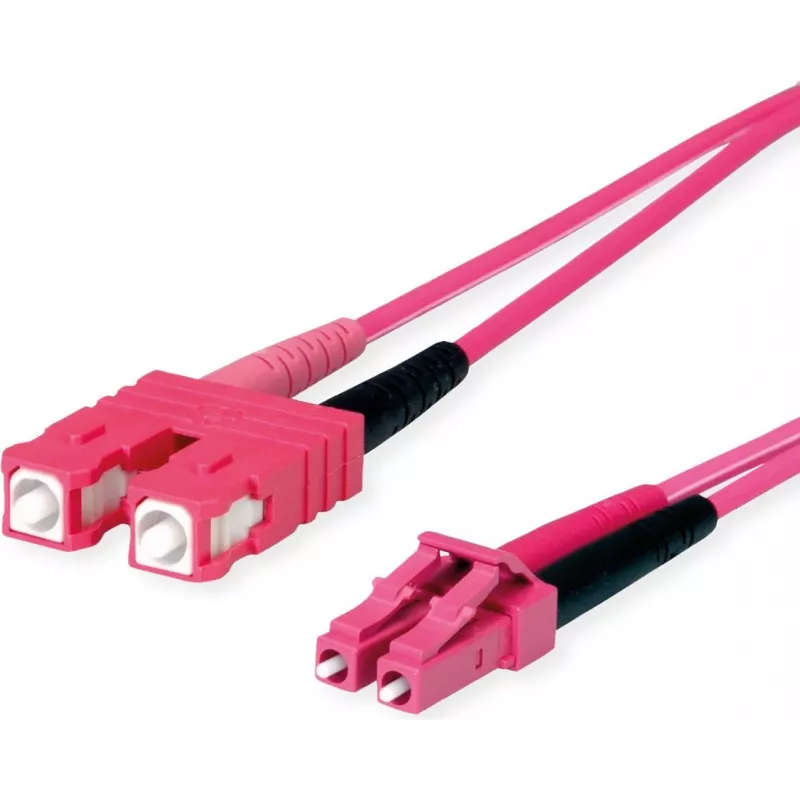

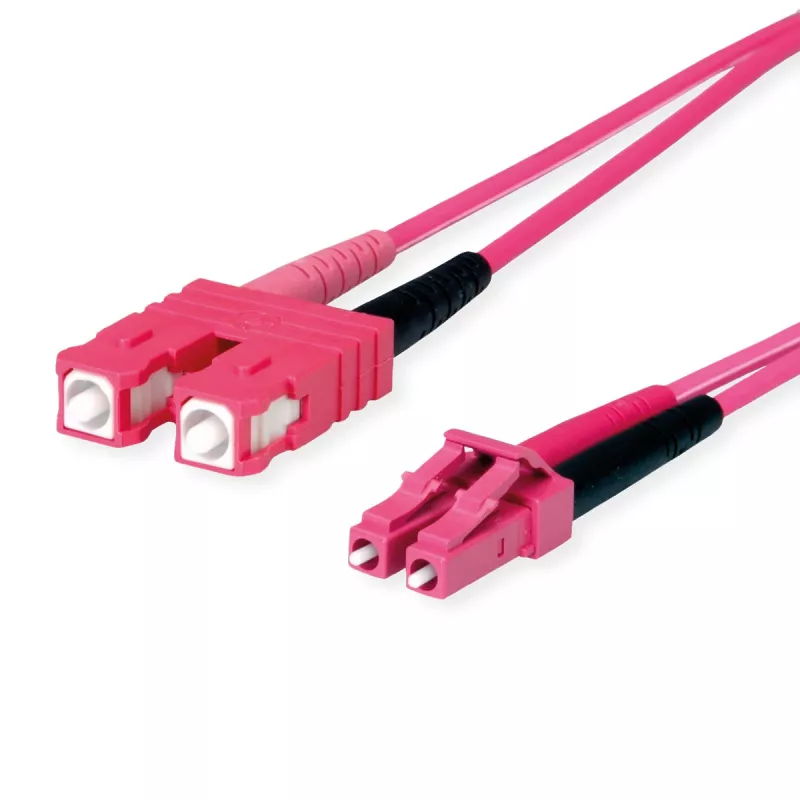

Telegärtner L00890A0111 Καλώδιο οπτικής ίνας OM4 Duplex, SC σε LC, LSZH, Μωβ, 1 m

In data centers and high-speed enterprise networks, this 1-meter Telegärtner OM4 fiber patch cable links SC and LC duplex ports with minimal signal loss. Its violet LSZH jacket meets strict indoor fire-safety requirements, and the 50/125 µm multimode core supports 4700 MHz·km bandwidth at 850 nm for 10G/40G/100G Ethernet links.

Key specifications

• Length: 1 m
• Fiber type: OM4 multimode, 50/125 µm
• Connectors: SC duplex to LC duplex
• Jacket: LSZH, violet
• Insertion loss: ≤ 0.3 dB per connector
• Return loss: ≥ 20 dB
• Bandwidth: 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Operating temperature: -10°C to +60°C

Why choose it

OM4 fiber supports longer reach at 10G and enables 40G/100G up to 150 m, making it a future-ready choice. The LSZH jacket emits low smoke and no halogen in case of fire, essential for confined spaces.

Ideal use cases

• Data center patching between switches, servers, and storage
• High-speed backbone links in enterprise LANs
• Connecting equipment with mixed SC and LC interfaces

Good to know

The cable construction I-K(ZN)H indicates an indoor cable with non-metallic strain relief and halogen-free materials. Duplex design provides two fibers for bidirectional communication.
