Telegärtner L00892A0073 OM4 Duplex καλώδιο patch οπτικών ινών, LC σε 2x ST, 3 m, μωβ

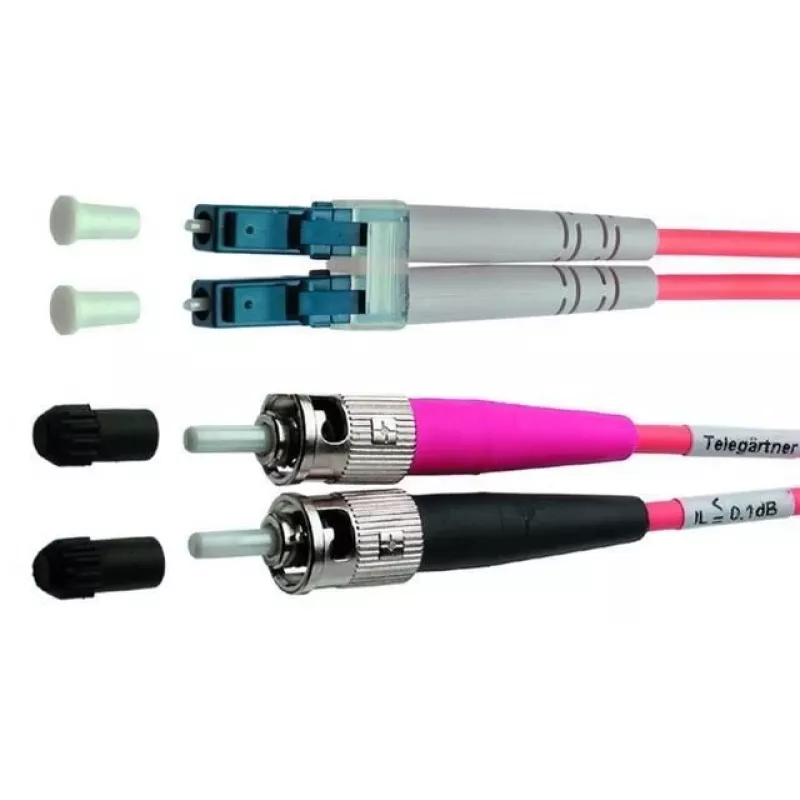

Connect high-speed network equipment in data centers and enterprise backbones with this Telegärtner fiber optic patch cable. It links an LC-duplex port on a switch or transceiver to two separate ST-simplex ports on a patch panel or media converter, supporting OM4 multimode performance over a 3-meter run.

Key specifications

• Connector A: LC-duplex
• Connector B: 2x ST-simplex
• Fiber type: OM4 multimode, 50/125 µm
• Length: 3 m
• Jacket: LSZH, violet
• Insertion loss: ≤0.3 dB
• Return loss: ≥30 dB
• Operating temperature: -10°C to +70°C

Why choose it

OM4 fiber supports 10/40/100 GbE over longer distances than OM3, making it suitable for backbone links. The LSZH jacket reduces toxic smoke in case of fire, and the violet color identifies OM4 per industry standard.

Ideal use cases

• Data center interconnects
• Enterprise backbone cabling
• Connecting LC-based switches to ST-based patch panels

Good to know

The cable has a duplex construction with two fibers, each terminated with LC on one end and ST on the other. Minimum bend radius is 30 mm.
