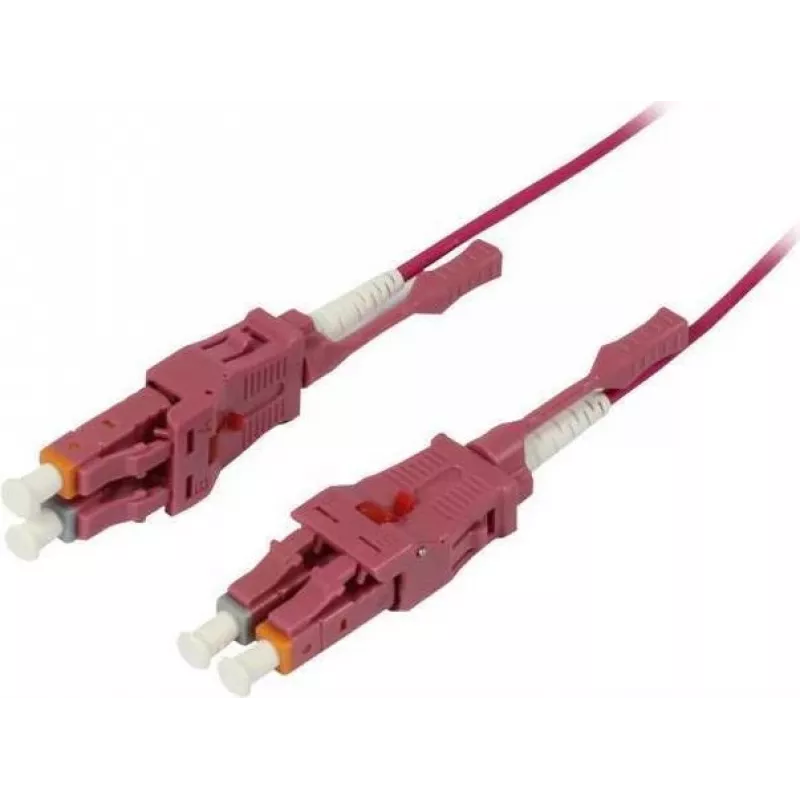

SYNERGY21 Καλώδιο Patch Οπτικής Ίνας 15m LC-LC Duplex OM4 Uniboot Περιστρεφόμενο Push/Pull 2mm - Multimode Fiber (S215558)

The SYNERGY21 S215558 is a high-performance 15-meter fiber optic patch cable designed for demanding data center and enterprise network environments. Featuring LC duplex Uniboot connectors with rotatable polarity and push-pull tabs, this OM4 multimode cable ensures reliable, high-speed data transmission with minimal insertion loss. The 2mm LSZH jacket provides durability and safety, making it ideal for high-density installations.

Advantages

Optimized for 40G and 100G Ethernet applications, this OM4 cable supports longer link distances compared to OM3. The rotatable Uniboot design allows for easy polarity reversal without additional adapters, simplifying installation and maintenance. The push-pull connector mechanism facilitates easy handling in tight spaces, while the LSZH jacket ensures compliance with fire safety regulations.

Suitable for

• Data center interconnects
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• FTTx deployments
• High-speed backbone cabling

Key specifications

• Cable length: 15 m
• Connector type: LC duplex Uniboot to LC duplex Uniboot
• Fiber type: Multimode OM4 (50/125 µm)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Aqua
• Outer diameter: 2 mm
• Insertion loss: < 0.3 dB typical
• Return loss: > 30 dB typical
• Operating temperature: -20°C to +70°C
• Standards: IEC 61754-20, TIA/EIA-568-C.3, RoHS, REACH

Recommendations

For optimal performance, pair this cable with OM4-compatible transceivers and ensure proper handling to maintain low insertion loss. Ideal for high-density patching areas where space is limited.
