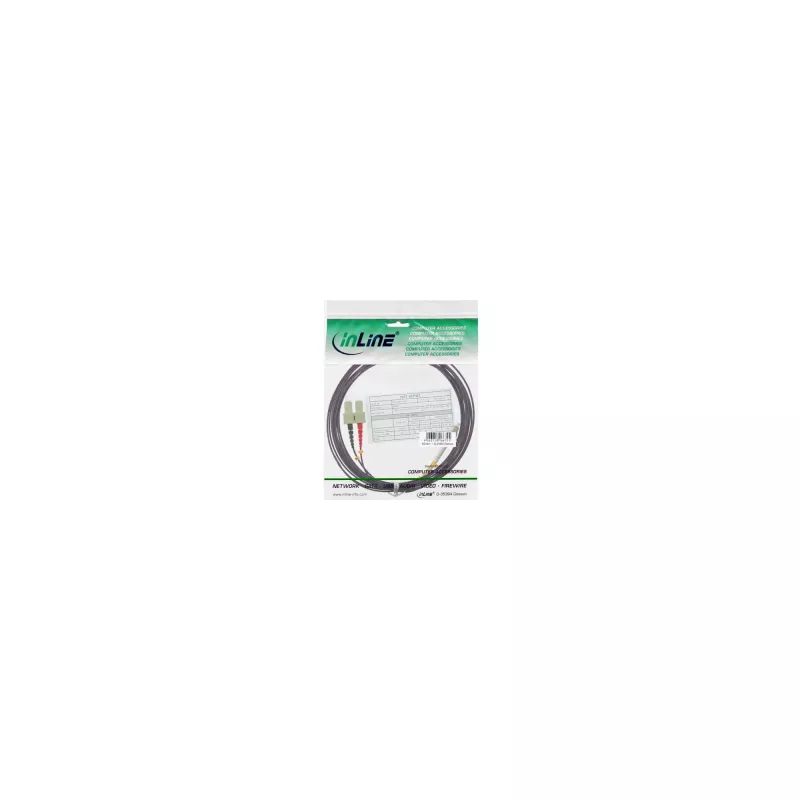

Καλώδιο οπτικής ίνας duplex LC/SC InLine 88640P 10m OM4 50/125µm

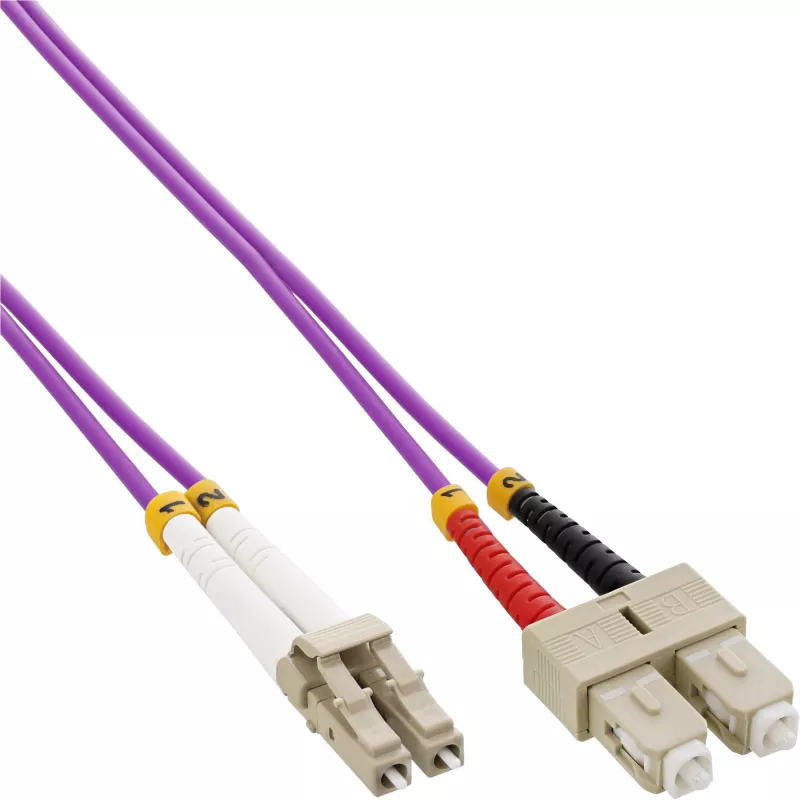

The InLine Fiber Optical Duplex Cable LC/SC 88640P 10m OM4 50/125µm provides a high-bandwidth multimode link for short-range, high-speed data transmission. Featuring an LC connector at one end and an SC connector at the other, this 10-meter duplex cable supports full duplex operation over a 50/125 µm core diameter and OM4-grade fiber optimized for increased modal bandwidth. It is intended for reliable interconnection of network equipment in data centers, server rooms and office environments where low insertion loss and consistent signal integrity are required.

Advantages

This OM4 multimode duplex cable offers enhanced bandwidth and lower modal dispersion compared with lower-grade multimode fibers, enabling support for higher data rates at typical short-range distances. The LC and SC connector combination provides compatibility with a broad range of transceivers and patch panels. The cable construction reduces signal attenuation across the 10 m length and is suitable for rack-to-rack or equipment-to-equipment links where predictable optical performance is necessary.

Suitable for

• Short-range high-speed links in data centers and server rooms
• Patching between switches, transceivers and optical modules
• Office backbone and structured cabling where multimode fiber is specified
• Equipment interconnects requiring LC-to-SC duplex connections

Key specifications

• Fiber type: OM4 multimode
• Core/cladding diameter: 50/125 µm
• Connector A: LC duplex
• Connector B: SC duplex
• Length: 10 m
• Transmission: full duplex
• Typical application range: short-reach multimode links

How to use

Inspect connectors and patch panel ports for cleanliness before connection. Align and insert the LC connector into the corresponding LC port and the SC connector into the SC adapter or port until secure. Avoid sharp bends and maintain the manufacturer’s minimum bend radius during routing. For best performance, keep the cable free from kinks and strain; use cable management in racks or conduits to prevent mechanical stress. When disconnecting, remove connectors by depressing the latch (for LC) or releasing the SC coupling mechanism and pull straight out without twisting.

Recommendations

Use with compatible multimode transceivers and modules designed for OM4 fiber to achieve expected bandwidth and reach. Clean connectors with appropriate fiber cleaning tools before each connection. For installations in critical environments, test the link with an optical power meter or certified test equipment to verify insertion loss and end-to-end performance.
