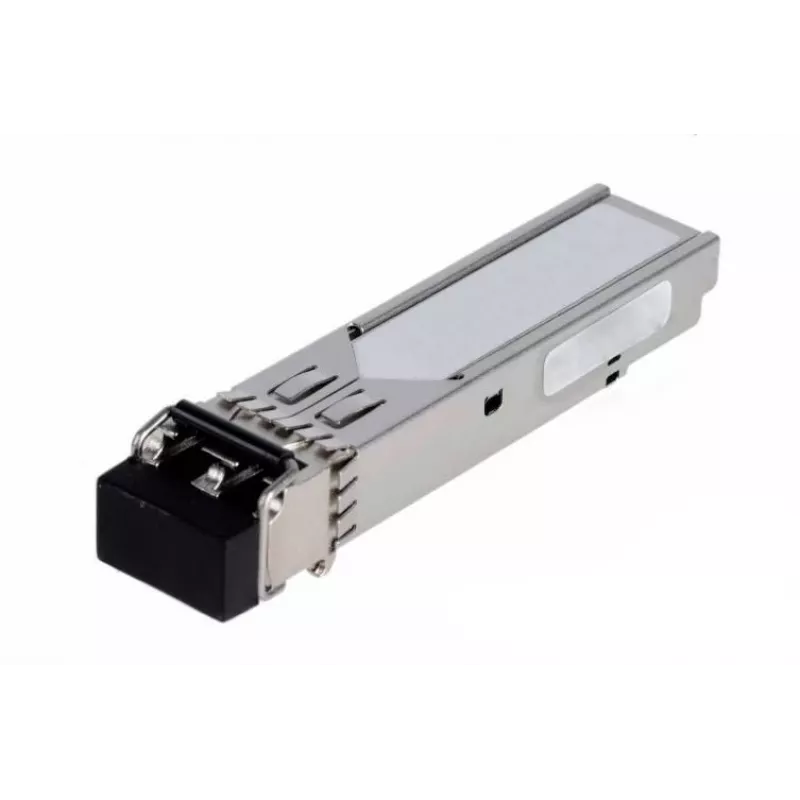

Μονάδα πομποδέκτη δικτύου Lanview MO-G-S85123-3CLM οπτική ίνα 1000 Mbit/s SFP 850 nm

Lanview MO-G-S85123-3CLM is a compact MicroOptics SFP fiber optic transceiver designed for short-range multimode links. The module supports a data rate of up to 1000 Mbit/s and operates at an 850 nm wavelength, fitting standard SFP interfaces and providing a small form-factor solution for network uplinks and switch ports. Its dimensions make it suitable for dense installations where space is limited, and it is compatible with a range of network devices that accept SFP modules.

Advantages

This transceiver delivers gigabit performance over multimode fiber with a compact SFP form factor that complies with common MSA specifications. It offers straightforward integration into SFP-capable ports, low power consumption typical for small optical modules, and physical dimensions that facilitate deployment in rack-mounted switches and uplink modules. The 850 nm wavelength is optimized for short-range multimode applications and supports reliable data transfer in local network environments.

Suitable for

• Short-range multimode fiber uplinks between switches and servers
• Gigabit connections in campus and data-center access layers
• Replacing or expanding SFP ports in compatible network equipment
• Dense installations where small form-factor transceivers are required

Key specifications

• Interface type: SFP (small form-factor pluggable)
• Maximum data transfer rate: 1000 Mbit/s (1 Gbit/s)
• Operating wavelength: 850 nm for multimode fiber
• Form factor: compact SFP module suitable for standard SFP slots
• Intended link range: short-range multimode fiber applications
• Typical applications: network uplinks, switch-to-switch and switch-to-server links

How to use

Insert the SFP transceiver into a compatible SFP slot on the switch, router or network adapter while the host device is powered according to the device manufacturer’s instructions. Secure the module until it clicks into place and connect the multimode fiber cable to the optical port, observing proper fiber handling and connector cleanliness. After installation, verify link status and speed in the host device’s management interface and configure network settings as required for the environment. Follow standard safety precautions when working with optical transceivers and fibers to avoid contamination or damage.

Recommendations

Use multimode fiber patch cords and connectors rated for 850 nm operation and maintain clean fiber endfaces. Check compatibility lists for your switch or network device model before installation and monitor link status after inserting the module. For best results in dense installations, plan airflow and power budgets to accommodate multiple small-form-factor transceivers.
