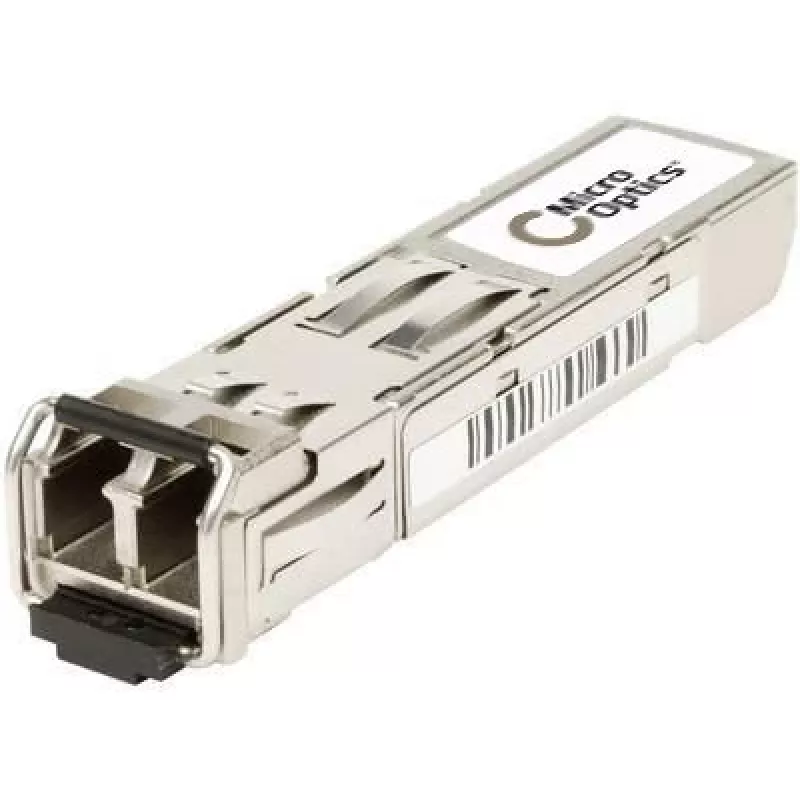

Lanview MO-L-S85123-3CLM μονάδα πομποδέκτη δικτύου οπτική ίνα 1000 Mbit/s SFP 850 nm

The Lanview MO-L-S85123-3CLM is an MSA-certified SFP fiber optic transceiver module designed for 1 Gbit/s network links. Operating at an 850 nm wavelength, it provides compatibility with Linksys/Cisco MGB-SX1 and MGBSX1 devices and fits standard SFP ports for seamless integration into existing network hardware. The compact module measures 13.4 mm × 56.5 mm × 8.5 mm and is intended for short-range multimode fiber connections.

Advantages

This SFP transceiver supports a maximum data transfer rate of 1000 Mbit/s and follows industry MSA specifications for interoperability. Its 850 nm operation makes it suitable for multimode fiber applications, and compatibility with Linksys/Cisco MGB-SX1 and MGBSX1 ensures straightforward replacement or upgrade. The compact dimensions allow installation in confined chassis or switch ports without special adapters.

Suitable for

• 1 Gbit/s multimode fiber links
• Replacing or upgrading Linksys/Cisco MGB-SX1 and MGBSX1 SFP modules
• Switches, routers and network devices with SFP ports

Key specifications

• Brand: MicroOptics
• Model / MPN: MO-L-S85123-3CLM
• Form factor / Interface type: SFP
• Wavelength: 850 nm
• Maximum data transfer rate: 1000 Mbit/s
• Compatibility: Linksys/Cisco MGB-SX1, MGBSX1
• Certifications: MSA compliant
• Dimensions: 13.4 mm (W) × 56.5 mm (D) × 8.5 mm (H)
• EAN: 5711045424618

How to use

Insert the Lanview MO-L-S85123-3CLM SFP module into an available compatible SFP slot on your switch or router until it clicks into place. Connect appropriate multimode fiber patch cables to the module’s fiber interface following device polarity. Verify link lights and network interface settings on the host device and configure speed and duplex if required. To remove, release the module’s latch and gently pull it out.

Recommendations

Use the module with multimode fibers matched to 850 nm operation and within the supported distance range of your network equipment. Avoid touching optical interfaces; keep protective caps on when not in use and follow ESD precautions during handling and installation.
