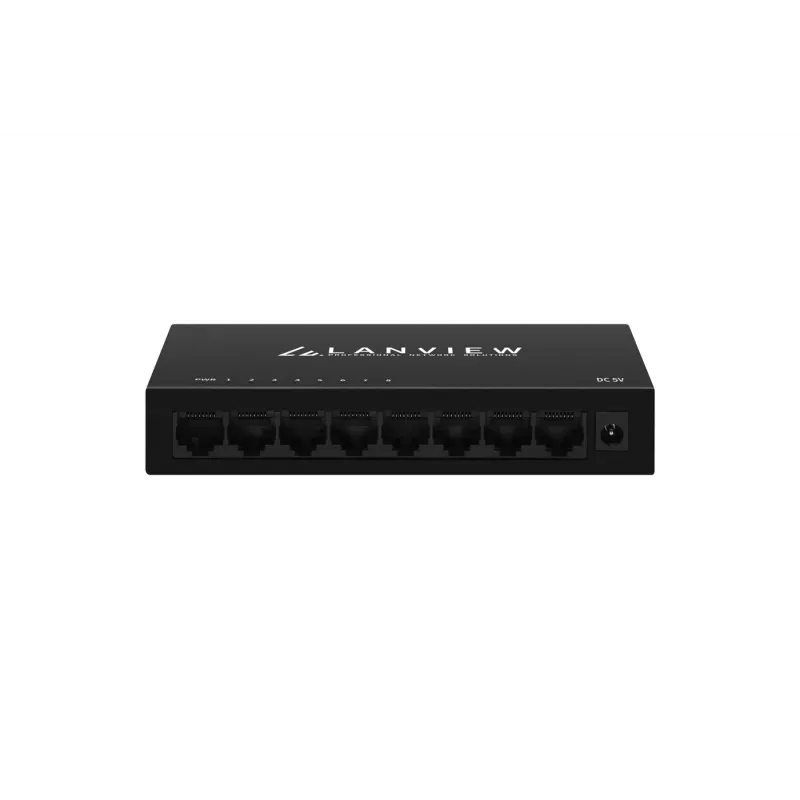

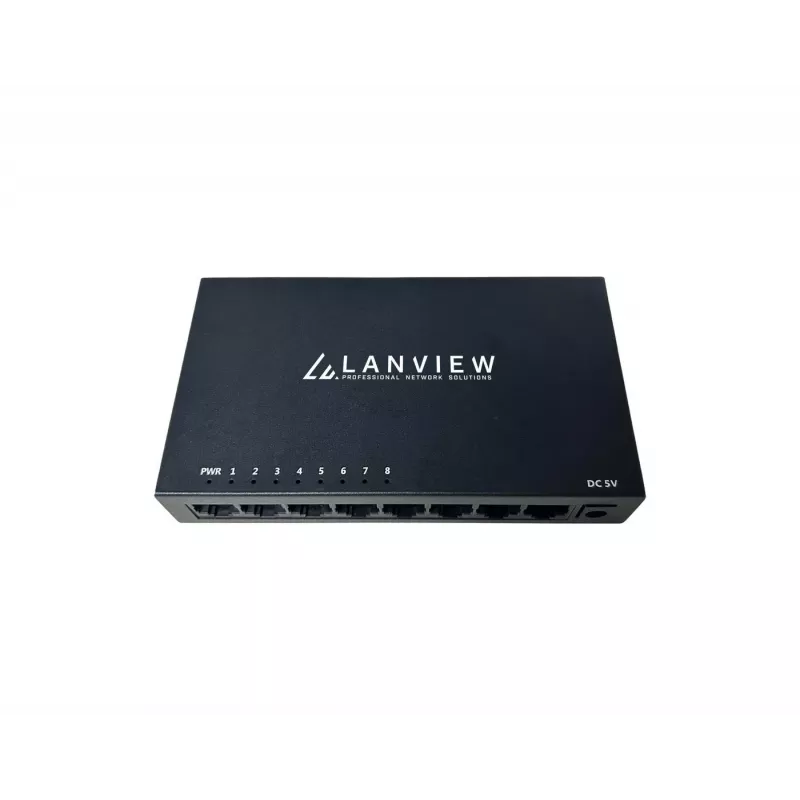

Unmanaged Switch Lanview LVN-DESK-8PORT-1G — 8-Port 1 Gbps Ethernet Desktop Switch

The Lanview LVN-DESK-8PORT-1G — 8-Port 1 Gbps Ethernet Desktop Switch is an unmanaged network switch offering eight Gigabit RJ45 ports for straightforward wired connectivity. Designed for desktop or small-rack placement, it provides plug-and-play operation with no configuration required, enabling immediate expansion of existing home or small office networks. The compact metal or plastic housing (desktop form factor) supports quiet operation and simple cable management while delivering full-duplex Gigabit throughput to connected devices.

Advantages

This unmanaged switch delivers eight 10/100/1000 Mbps ports that automatically negotiate speed and duplex, simplifying installation and maintenance. With no software or setup needed, it reduces deployment time and user effort. The device supports store-and-forward switching to help maintain link stability and minimize packet loss. Its compact footprint and low power consumption make it suitable for locations where space and energy efficiency are important.

Suitable for

• Small office networks requiring additional wired ports for PCs and printers
• Home networks that need stable Gigabit connections for media servers and NAS
• Workgroups and meeting rooms where multiple wired devices must be connected
• Temporary network extensions for events or short-term projects

Key specifications

• Number of ports: 8 x RJ45 Gigabit Ethernet (10/100/1000 Mbps)
• Switching mode: Unmanaged, plug-and-play operation
• Throughput: Full-duplex Gigabit per port with auto MDI/MDIX
• Latency and buffering: Store-and-forward switching with MAC address table support

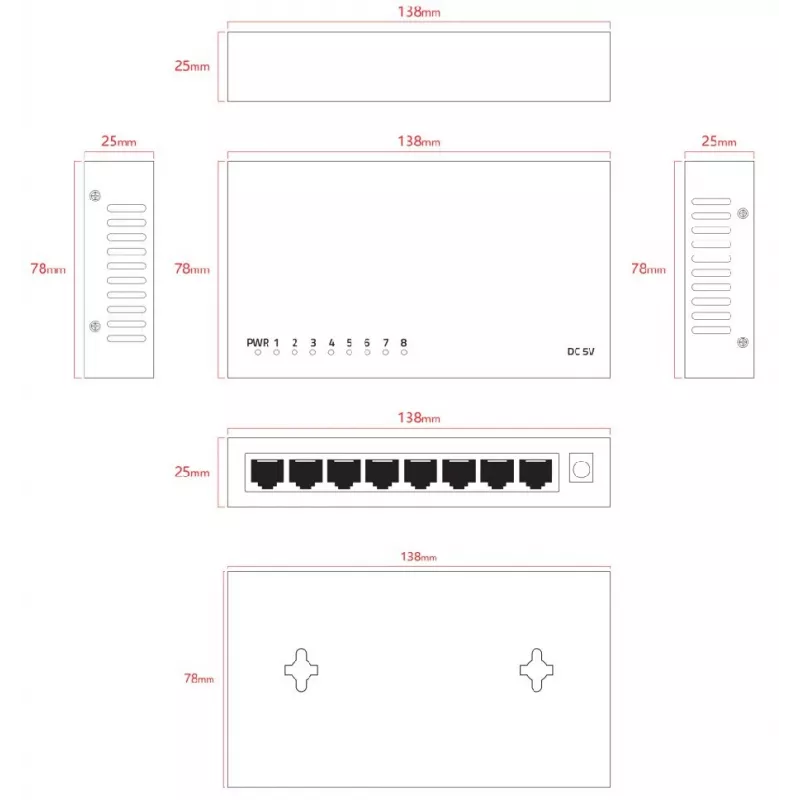

• Form factor: Desktop compact housing for small spaces
• Power: External or internal low-voltage power supply (desktop adapter)
• Noise and cooling: Fanless design for quiet operation

How to use

Place the switch on a stable, ventilated surface near the network devices to be connected. Connect each device to the switch using standard Ethernet cables (Cat5e or Cat6 recommended for Gigabit performance). Plug the switch into a power source using the supplied adapter and verify that the corresponding link/activity LEDs indicate a successful connection. Since the switch is unmanaged, no configuration is required; connected devices obtain network connectivity according to the existing network topology and DHCP settings from your router or server.

Recommendations

For optimal Gigabit performance, use Cat5e or Cat6 cabling and ensure connected devices have Gigabit-capable network interfaces. Place the switch away from strong heat sources and maintain a few centimeters of clearance for passive cooling. For networks with heavy multicast or specialized QoS needs, consider a managed switch alternative; for straightforward port expansion and reliable wired connections, this unmanaged 8-port switch is appropriate.
