Μονάδα Keystone LogiLink NK4010

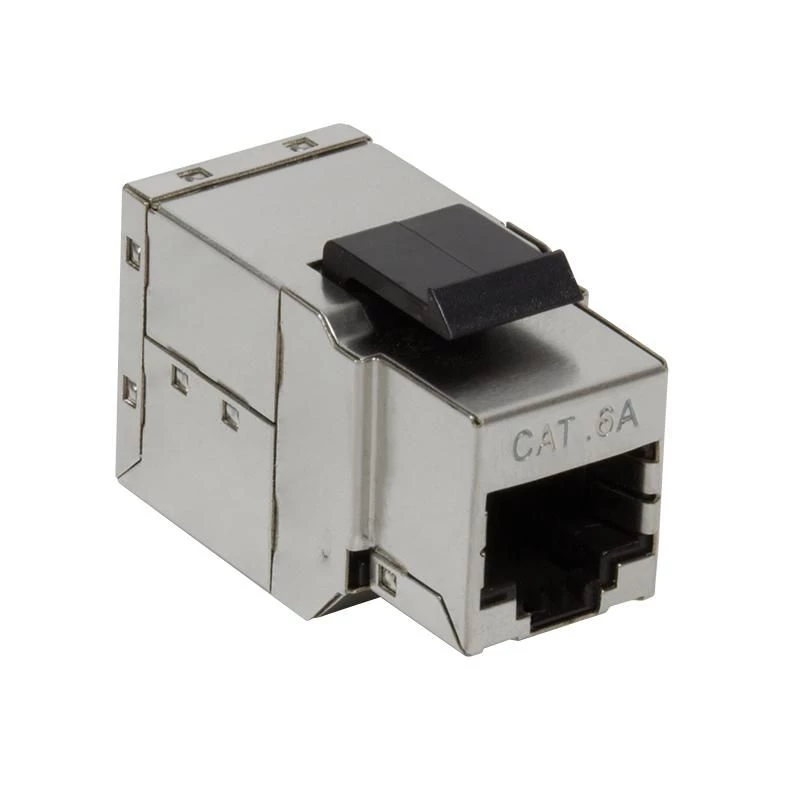

The LogiLink NK4010 is a silver keystone module with dual fully shielded RJ45 jacks, designed for inline coupling in structured cabling installations. It supports up to 6A Class EA (500 MHz) performance and complies with ISO/IEC 11801 and TIA/EIA 568C.2 standards. The compact snap-in module (17.1 mm × 35.2 mm × 21.2 mm, approx. 40 g) provides a space-saving solution for panel and wall-plate mounting where secure, shielded Ethernet connections are required.

Advantages

The module provides fully shielded connections through two RJ45 ports, reducing electromagnetic interference in environments requiring STP/FTP cabling. Its 6A Class EA 500 MHz rating ensures support for high-speed Ethernet applications within its category. Snap-in mounting simplifies installation in keystone-compatible panels and wall plates, and the compact silver housing conserves space while matching standard installation aesthetics.

Suitable for

• Structured cabling panels and patch panels
• Wall plates and outlet inserts for shielded Ethernet
• Inline coupling of two RJ45 shielded cables
• Applications requiring compliance with ISO/IEC 11801 and TIA/EIA 568C.2

Key specifications

• Model: LogiLink NK4010
• Connector 1: RJ45 (shielded)
• Connector 2: RJ45 (shielded)
• Performance class: 6A Class EA, 500 MHz
• Standards: ISO/IEC 11801, TIA/EIA 568C.2
• Mounting: Snap-in keystone
• Dimensions (W × D × H): 17.1 mm × 35.2 mm × 21.2 mm
• Weight: 40 g
• Colour: Silver
• Pin configuration: 1:1

How to use

Insert the LogiLink NK4010 into a compatible keystone opening until the module snaps into place. Connect shielded RJ45 plugs to each jack to couple two Ethernet cables or to create a pass-through on a panel or wall plate. Ensure that cable shielding is properly terminated to the module and that grounding practices follow your local installation guidelines to maintain the effectiveness of the shielding.

Recommendations

For optimal performance, use shielded twisted-pair (STP/FTP) cables and maintain proper grounding throughout the installation. Verify compatibility with your patch panels or wall plates before installation and follow relevant cabling standards (ISO/IEC 11801, TIA/EIA 568) for best results.
