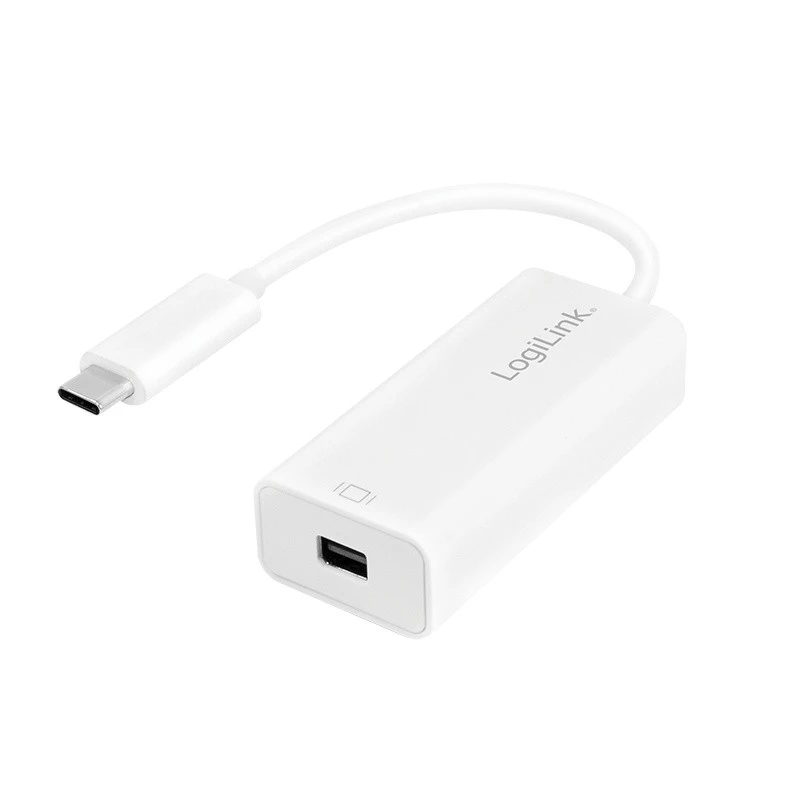

The LogiLink UA0360 is a compact 0.15 m video adapter cable that connects a USB-C port on a laptop or other device to a monitor or TV with a Mini DisplayPort input. It supports DisplayPort Alternate Mode (DP Alt Mode) over USB-C and delivers video up to 4K at 60 Hz without requiring an external power supply. The adapter features a reversible USB Type-C plug and a Mini DisplayPort female connector, and is compliant with USB 3.2 Gen 1x1 specifications.

Advantages

The USB-C to Mini DisplayPort adapter enables high-resolution 4K/60 Hz output via a short, travel-friendly cable. Its compact white design is easy to carry and store, and the reversible USB-C connector simplifies plugging in. Compatibility with DP Alt Mode devices such as MacBook and Chromebook ensures a straightforward connection for mirroring or extending the desktop.

Suitable for

• Connecting a USB-C laptop (MacBook, Chromebook, Windows) to a Mini DisplayPort monitor or TV
• Extending or mirroring the desktop for work or presentations
• Playing 4K video content at 60 Hz on an external display

Key specifications

• Input: 1× USB-C male (USB Type-C reversible plug)

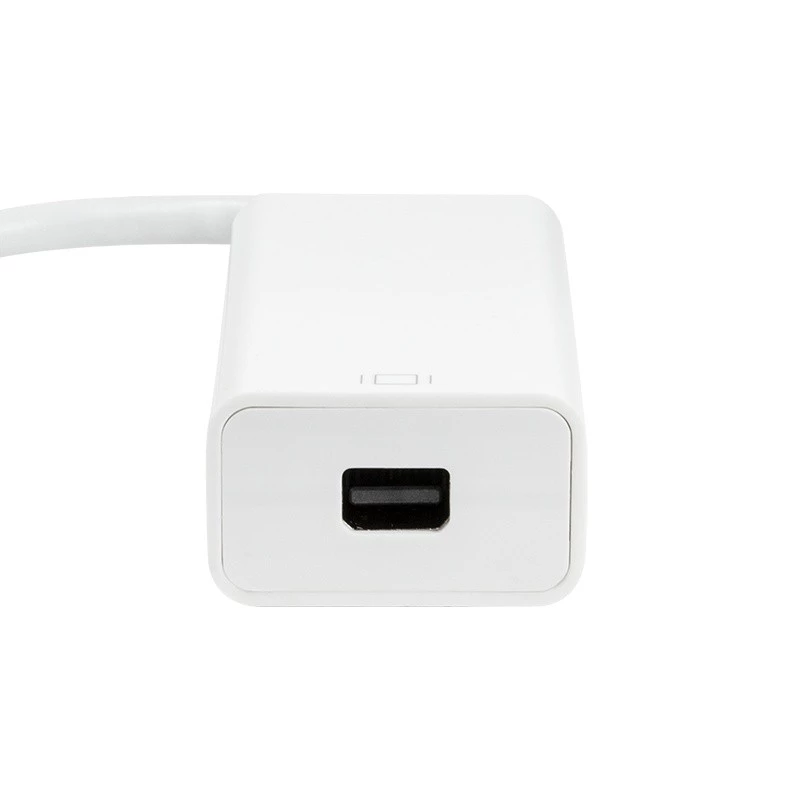

• Output: 1× Mini DisplayPort female
• Video resolution: Up to 4K (3840×2160) at 60 Hz
• USB standard: Compliant with USB 3.2 Gen 1x1
• Cable length: 0.15 m
• Colour: White

How to use

Connect the USB-C male end of the adapter to a USB-C port on your source device that supports DisplayPort Alternate Mode. Plug a Mini DisplayPort cable from the adapter’s Mini DisplayPort female connector to the external monitor or TV. Power on the display and select the appropriate input; the external screen can be used as a mirrored or extended desktop. No additional power adapter is required.

Recommendations

Ensure the source device’s USB-C port supports DP Alt Mode; if video is not detected, check the device display output settings and try reconnecting the cable. For optimal performance with 4K/60 Hz, use a quality Mini DisplayPort cable and confirm the monitor’s firmware and settings support the specified resolution and refresh rate.
