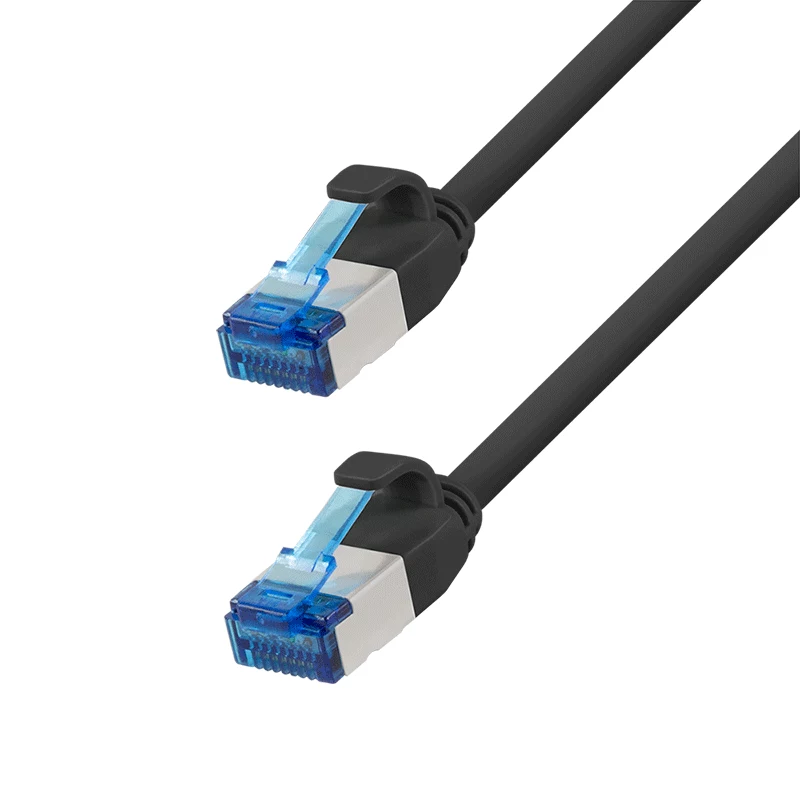

LogiLink Καλώδιο patch Cat.6A Slim S/FTP LSZH, Μαύρο, 3 m, SlimLine

High-density network installations often struggle with bulky cables that block airflow and complicate cable management. The LogiLink SlimLine Cat.6A patch cable solves this by combining a slim 3.8 mm diameter with full 10 Gigabit performance, making it ideal for data centers, server rooms, and office environments where space is at a premium.

Who is it for

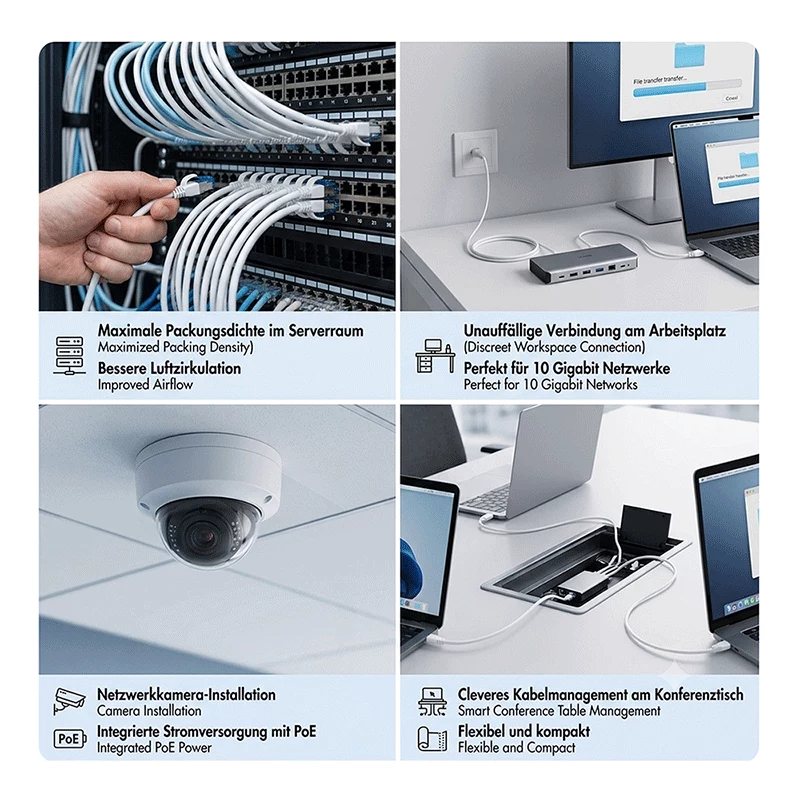

This cable is built for IT professionals, system integrators, and businesses that require reliable high-speed connectivity without sacrificing rack space. It suits 10GBASE-T Ethernet applications, PoE-powered devices, and any setup where cable volume must be minimized.

Main features

• Cat.6A performance with 500 MHz bandwidth supports 10 Gigabit Ethernet up to 100 meters.

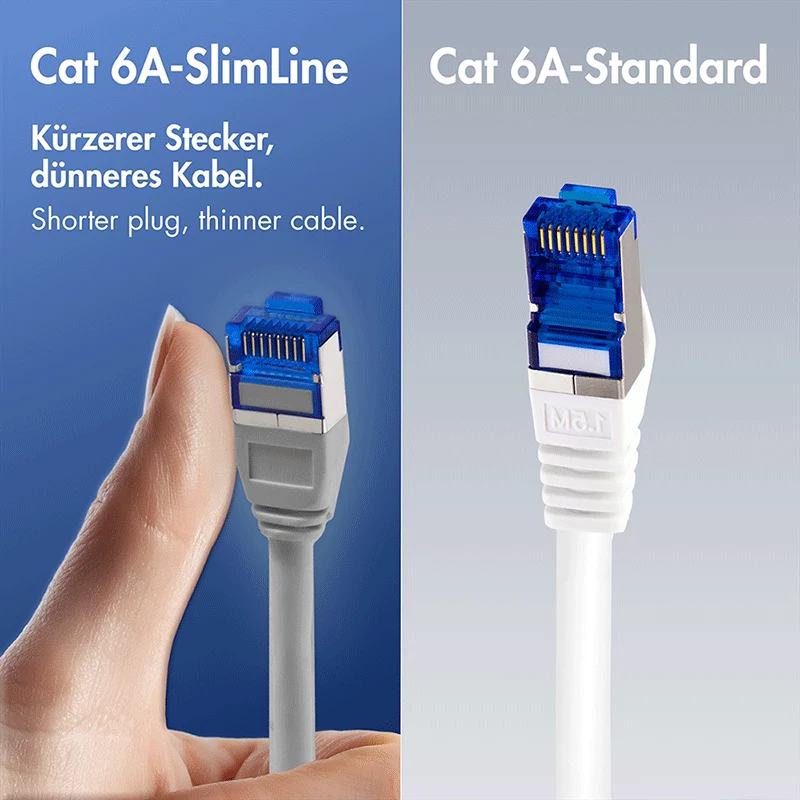

• SlimLine design with only 3.8 mm outer diameter reduces cable bulk by up to 50% compared to standard Cat.6A cables.
• S/FTP shielding: individual pairs wrapped in metal foil plus overall braid for superior protection against EMI and crosstalk.
• LSZH (Low Smoke Zero Halogen) jacket emits low smoke and no toxic halogens in case of fire, enhancing safety.
• Gold-plated RJ45 connectors (50 µm) ensure corrosion resistance and reliable signal integrity.
• Stranded copper conductors (AWG 30) provide flexibility for easy routing in tight spaces.
• Supports Power over Ethernet (PoE, PoE+, PoE++) for powering devices like IP cameras and wireless access points.
• Compliant with TIA/EIA 568B wiring standard and RoHS/CE certified.

Specifications

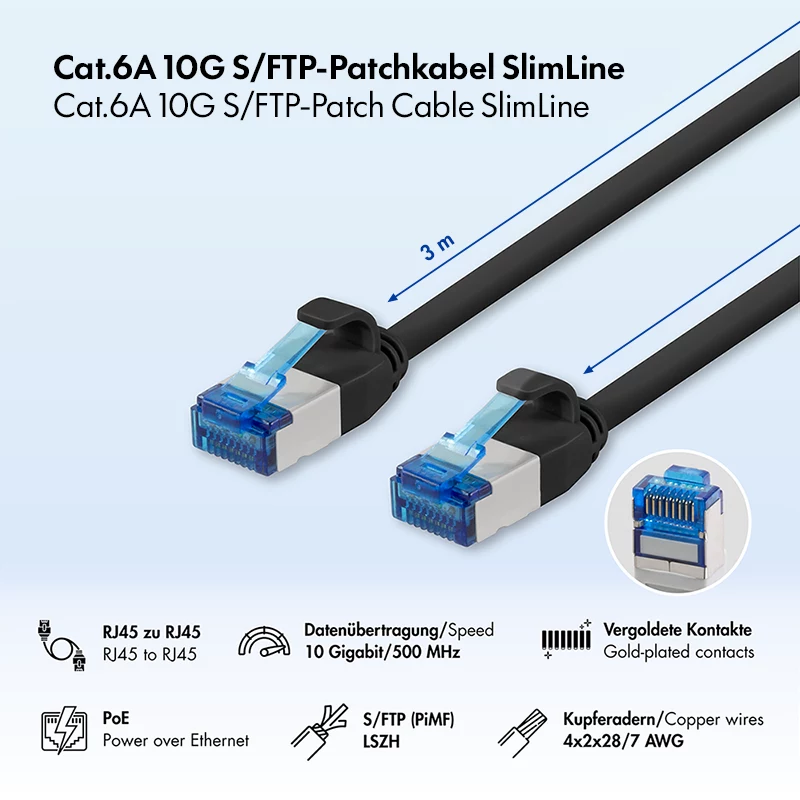

• Cable type: Cat.6A S/FTP patch cable
• Length: 3.00 m
• Colour: Black
• Connector type: RJ45 male to RJ45 male
• Conductor material: Copper, stranded
• Conductor gauge: AWG 30
• Shielding: S/FTP (PiMF + overall braid)
• Jacket material: LSZH (halogen-free, flame retardant)
• Bandwidth: Up to 500 MHz
• Data transfer rate: 10 Gbps
• Cable diameter: Approx. 3.8 mm
• Operating temperature: -20°C to 60°C
• PoE support: PoE, PoE+, PoE++
• Certifications: RoHS, CE

Tips

For optimal performance, avoid bending the cable beyond its minimum bend radius (typically 4x the cable diameter). When bundling multiple cables, use Velcro straps instead of zip ties to prevent over-compression. Pair with LogiLink patch panels and keystone jacks for a complete high-density cabling solution.
