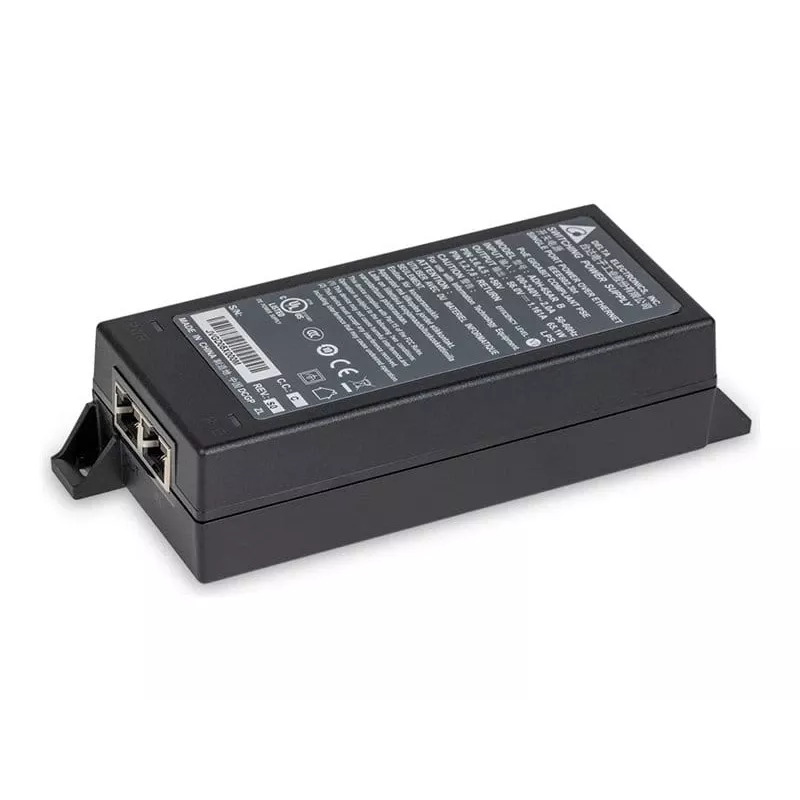

LANCOM 10G PoE++ Injector EU 10 Gigabit Ethernet 65W Power

The LANCOM 10G PoE++ Injector EU is a compact power injector that delivers up to 65 W to PoE devices while preserving 10 Gigabit Ethernet transmission speeds. It supports IEEE 802.3bt (PoE++), IEEE 802.3at (PoE+) and IEEE 802.3af (PoE) and provides multi‑Gigabit link speeds (1G / 2.5G / 5G / 10G). With an integrated power supply and standard IEC connector included, the injector supplies access points up to 100 m away and allows placement of devices in locations without a local power outlet.

Advantages

The injector supplies full power for modern access points and other PoE devices while maintaining up to 10 Gbps data throughput. Backwards compatibility with older PoE standards and support for multi‑Gigabit links ensures flexible use with a wide range of switches and devices. Integrated protections cover overcurrent, overheating and short circuits, and the built‑in power supply reduces cabling and space requirements.

Suitable for

• Supplying Wi‑Fi 7 and other high‑performance access points with PoE++ (IEEE 802.3bt)
• Adding PoE power to switches that lack PoE capability
• Deployments requiring up to 10 Gbps network performance between switch and device
• Installations where access points must be placed up to 100 m from the power source

Key specifications

• Power output: up to 65 W (IEEE 802.3af/at/bt)
• Data rates: multi‑Gigabit (1G / 2.5G / 5G / 10G)
• PoE standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
• Ports: 2 × RJ‑45 Ethernet
• Product colour: Black
• Integrated power supply with IEC connector included
• Maximum cable distance to powered device: up to 100 m

How to use

Connect the injector between a non‑PoE or PoE switch and the powered device: plug one RJ‑45 port into the switch and the other into the access point or PoE device. Attach the supplied IEC power cord to the injector and a mains outlet. The device requires no configuration; power and data are delivered over the Ethernet cable automatically. Observe correct cable types (CAT5e or higher recommended for multi‑Gigabit and 10G links) and maintain cable runs within the 100 m limit.

Recommendations

For reliable 10G and PoE++ operation use high‑quality shielded or unshielded twisted‑pair cables rated for the required speeds (CAT6A or CAT7 for long 10G runs), ensure proper ventilation around the injector, and verify device power requirements to avoid overloading a single injector.
