LANCOM LX-7300 (Bulk 5)

The LANCOM LX-7300 (Bulk 5) is a Wi‑Fi 7 access point designed for medium-sized, demanding wireless networks. It supports simultaneous operation in the 2.4 GHz, 5 GHz and 6 GHz bands and delivers an aggregated maximum data rate of up to 9,300 Mbit/s. The device combines multi‑gigabit Ethernet, PoE power delivery and a compact, dust‑resistant enclosure with certified fire resistance to provide a robust solution for professional indoor deployments. Built‑in BLE 5.1 and a USB 2.0 interface extend support for IoT endpoints and peripherals, while multiple management options enable cloud, controller or stand‑alone operation.

Advantages

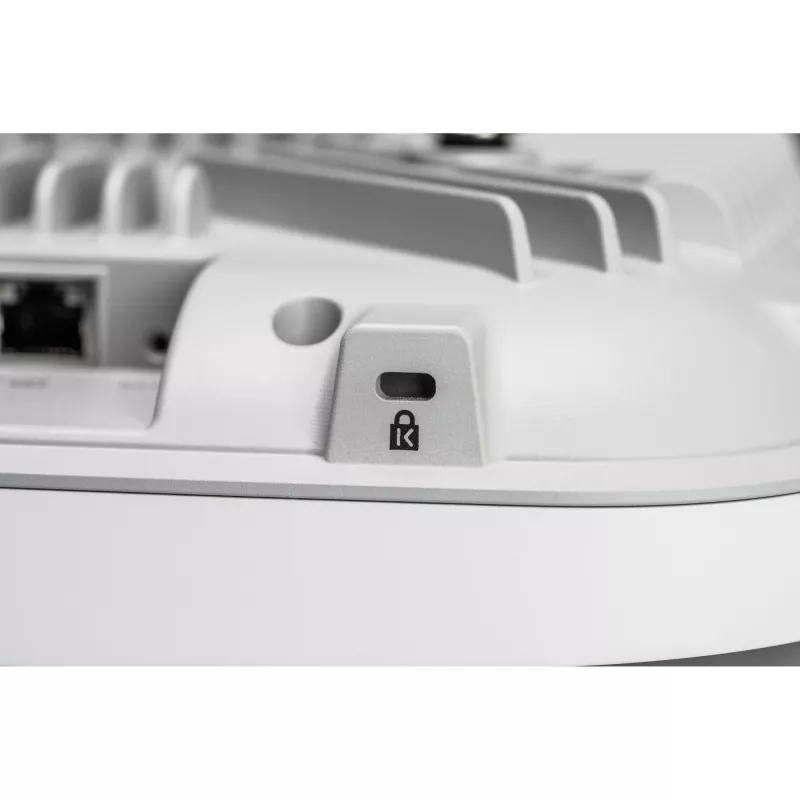

The LANCOM LX-7300 offers high throughput and low-latency operation by using Wi‑Fi 7 features such as wider channels and higher modulation density. The dedicated 6 GHz band provides an interference‑free spectrum for time‑critical applications and large data flows. Integrated security features and LANCOM’s firmware engineered in Germany ensure controlled updates, secure boot and protection against backdoors. The device is designed for efficient energy use with support for LANCOM Active Power Control and detailed energy monitoring, and its housing and mounting options simplify installation and theft protection.

Suitable for

• High‑density office environments with mixed client types
• Time‑sensitive applications such as VoIP, real‑time video and interactive services
• Locations requiring multi‑gigabit backhaul and PoE deployment
• Professional IoT installations using BLE sensors or USB‑connected peripherals

Key specifications

• Tri‑band Wi‑Fi: simultaneous 2.4 GHz, 5 GHz and 6 GHz operation
• Aggregated maximum data rate: up to 9,300 Mbit/s
• Per‑band peak data rates: 2.4 GHz ~575 Mbit/s, 5 GHz ~2,882 Mbit/s, 6 GHz ~5,765 Mbit/s
• Wi‑Fi standards: IEEE 802.11be (Wi‑Fi 7), 802.11ax/ac/n/a/b/g
• Radio efficiency features: OFDMA and MU‑MIMO
• Security algorithms: AES‑CCMP, AES‑GCMP, EAP‑TLS, EAP‑TTLS, PEAP, TKIP

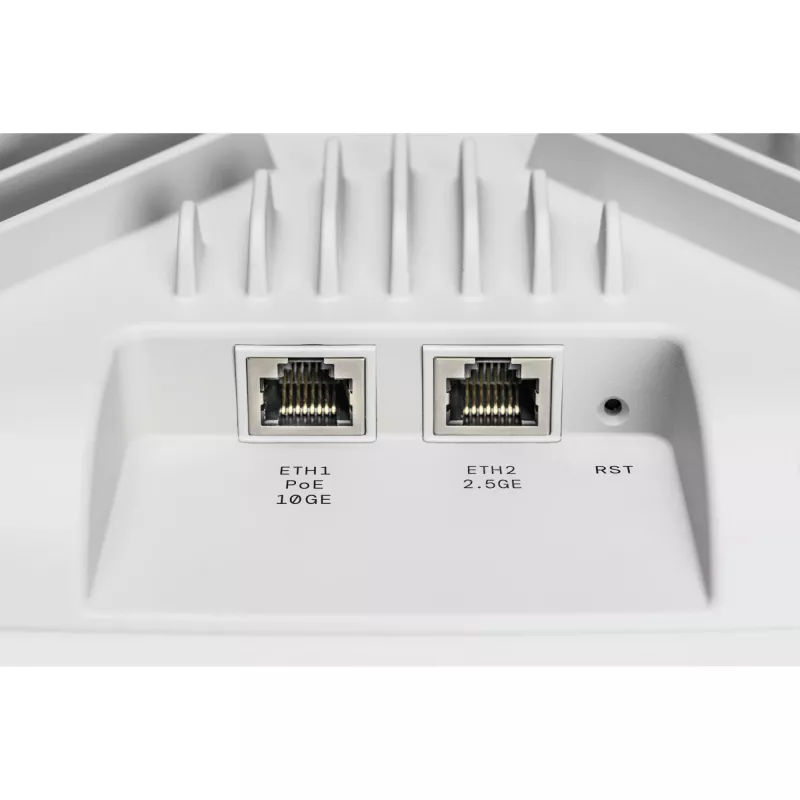

• Ethernet ports: multi‑gigabit support including 10 Gbit/s and 2.5 Gbit/s rates
• Power: Power over Ethernet (PoE) support; maximum power consumption 29 W

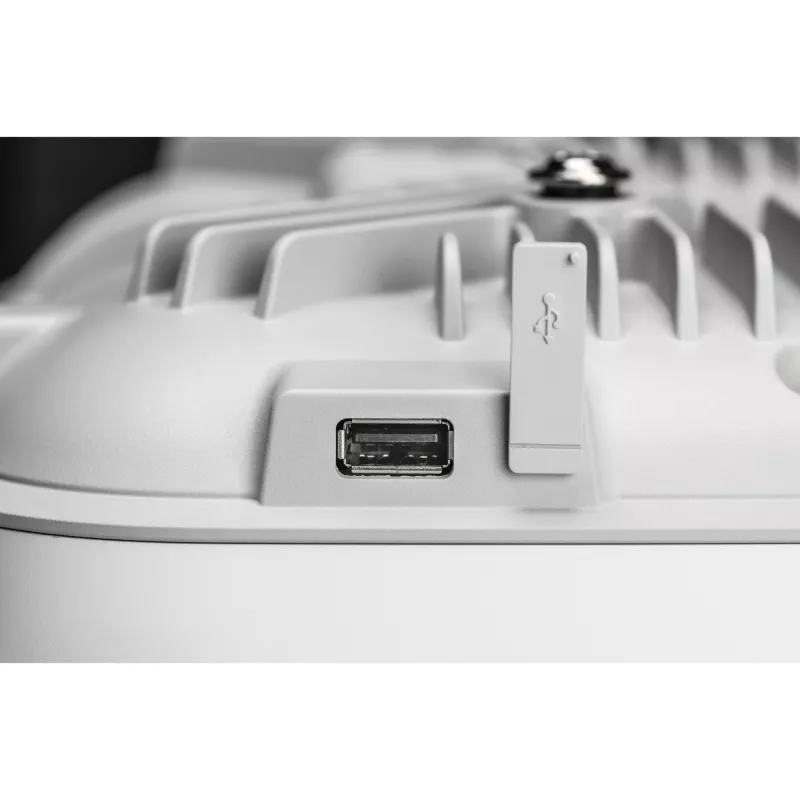

• IoT interfaces: Bluetooth Low Energy 5.1 and USB 2.0
• Enclosure: dust‑protected (IP50) and certified low‑smoke / fire resistance (UL‑2043)

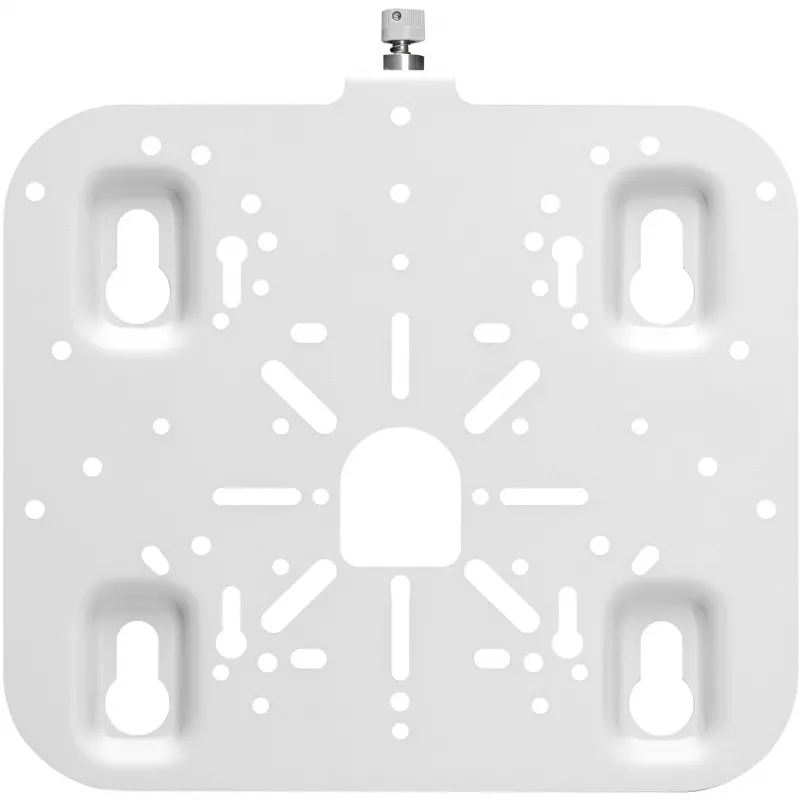

• Mounting: compact bracket with mounting lock and automatic wall/ceiling detection

How to use

Mount the access point on a ceiling or wall using the supplied mounting plate and secure the bracket with the integrated mounting lock. Connect the device to a PoE++ capable switch or injector to supply power and multi‑gigabit backhaul via the Ethernet port. Choose one of the supported management modes: register the unit in the LANCOM Management Cloud for zero‑touch provisioning and centralized monitoring, configure it via WEBconfig for stand‑alone operation, or manage it through a WLAN controller for centralized on‑premises control. Use the management interface to assign SSIDs, apply security policies and enable IoT functions such as BLE or USB peripherals.

Recommendations

The LANCOM LX-7300 performs best when 6 GHz capable clients are placed on the 6 GHz band while legacy devices remain on 2.4 GHz or 5 GHz. Enable LANCOM Active Radio Control and Active Power Control for automated radio optimization and energy savings. For installations with high client density, plan access point placement to ensure adequate overlapping coverage and use the cloud or controller mode to keep firmware and security settings up to date.
