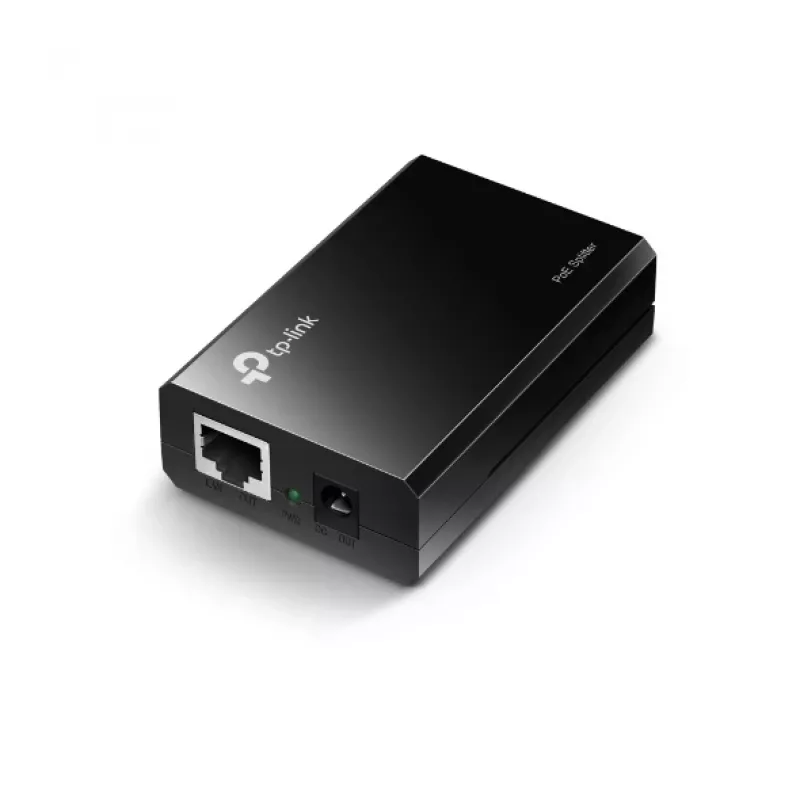

TP-Link TL-POE10R v4 Gigabit Ethernet

The PoE Splitter TL-POE10R is compliant with the IEEE 802.3af standard and separates power and data from a PoE source to supply devices that lack a nearby power outlet. It accepts power over Ethernet from any IEEE 802.3af PoE-capable PSE or PoE adapter and provides a regulated 12V DC or 5V DC output for devices such as access points, IP cameras, or IP phones located up to 100 meters from the power source.

Advantages

The TL-POE10R works with standard IEEE 802.3af PoE switches and adapters, requires no configuration and is ready to use. It enables installation of network devices in places without power lines by delivering both data and a selectable 12V or 5V DC power output. The device supports power delivery up to 100 meters over Ethernet cable.

Key specifications

• Standard: IEEE 802.3af compliant
• Maximum cable distance for power delivery: 100 meters
• Output voltages: 12V DC or 5V DC (selectable)
• Compatibility: works with IEEE 802.3af PSE or PoE adapters (e.g., TL-SF1008P, TL-POE150S or equivalent)
• Operation: Plug-and-Play, no configuration required

How to use

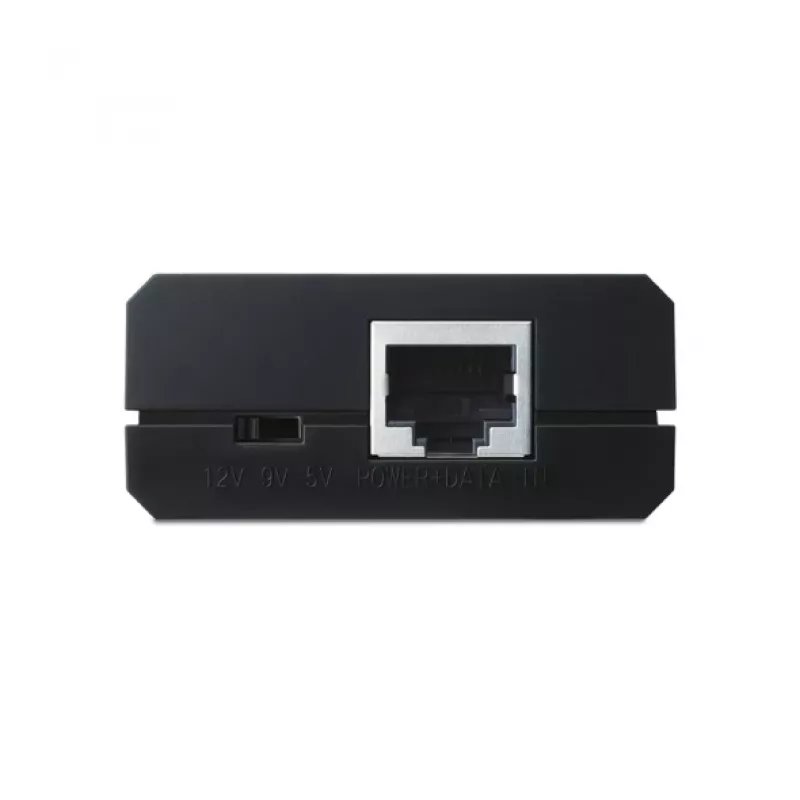

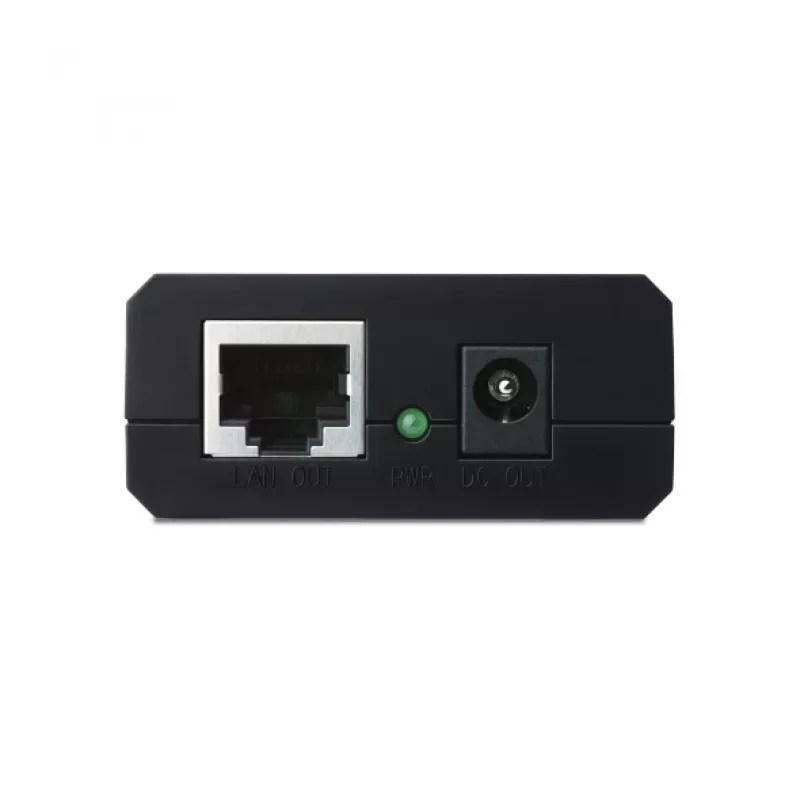

Connect the Ethernet cable from an IEEE 802.3af PoE-enabled switch or PoE adapter to the PoE input of the TL-POE10R. Select the required output voltage (12V or 5V), then connect the device to be powered (for example, an access point, IP camera, or IP phone) to the DC output. The splitter separates data and power, supplying the connected device while passing data over the Ethernet link.

Recommendations

Use a compliant IEEE 802.3af PoE switch or adapter and quality Ethernet cable to ensure stable power delivery. Verify the power requirements of the connected device and set the splitter to the matching output voltage (12V or 5V).
