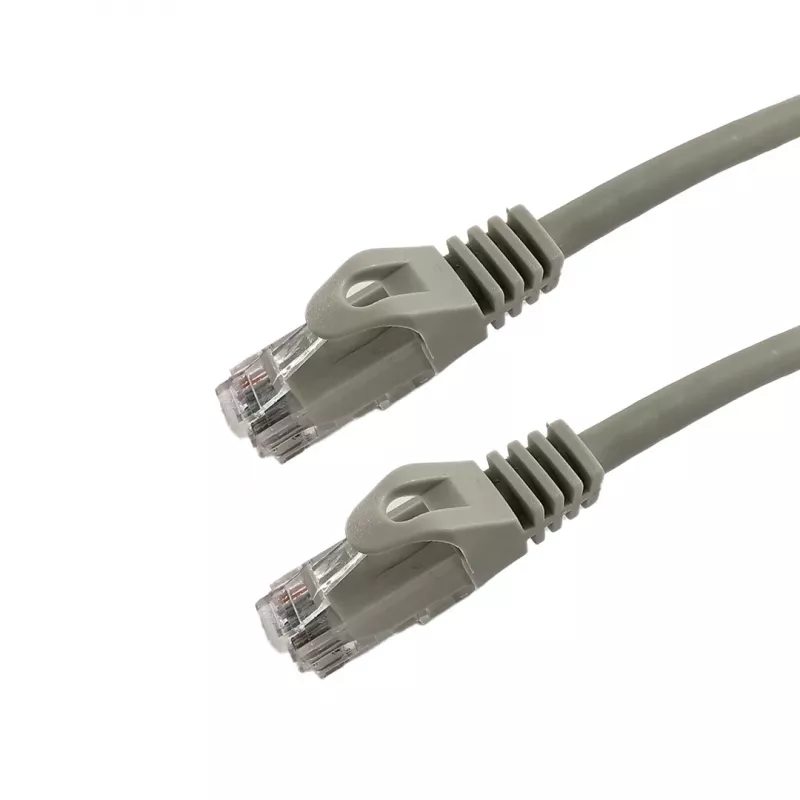

Grafenthal Καλώδιο Patch CAT6 U/UTP CU LSZH 1,00m Γκρι

The Grafenthal Patch Cable CAT6 U/UTP CU LSZH 1.00m Grey is a high-performance Ethernet cable designed for reliable network connections. Manufactured with pure copper conductors and Low Smoke Zero Halogen (LSZH) jacket, it ensures safety and excellent data transmission.

Advantages

This patch cable offers superior signal integrity and reduced crosstalk thanks to its U/UTP shielding and 26 AWG stranded conductors. The snagless boot design protects the RJ45 connectors during installation and removal. LSZH jacket minimizes toxic smoke in case of fire, making it ideal for public and enclosed spaces.

Suitable for

• Connecting computers, switches, routers, and other network devices in LAN environments
• Data centers, offices, and home networks requiring reliable Gigabit and 10 Gigabit Ethernet
• Installations where fire safety and low smoke emission are critical

Key specifications

• Cable Type: Patch Cable
• Ethernet Category: CAT6
• Shielding: U/UTP (Unshielded Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 1.0 meter
• Colour: Grey
• Connectors: RJ45 Male to RJ45 Male
• Wiring Standard: TIA/EIA-568B
• Conductor Gauge: 26 AWG
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 250 MHz
• Number of Conductors: 8 (4 Twisted Pairs)
• Boot Type: Snagless
• Compliance: RoHS, CE
• Operating Temperature: -20°C to 60°C
• Outer Diameter: Approx. 6.0 mm
• Insulation Material: HDPE

Recommendations

For optimal performance, use with CAT6 compatible devices and avoid sharp bends or kinks during installation. This cable supports PoE applications, making it suitable for powering devices like IP cameras and wireless access points.
