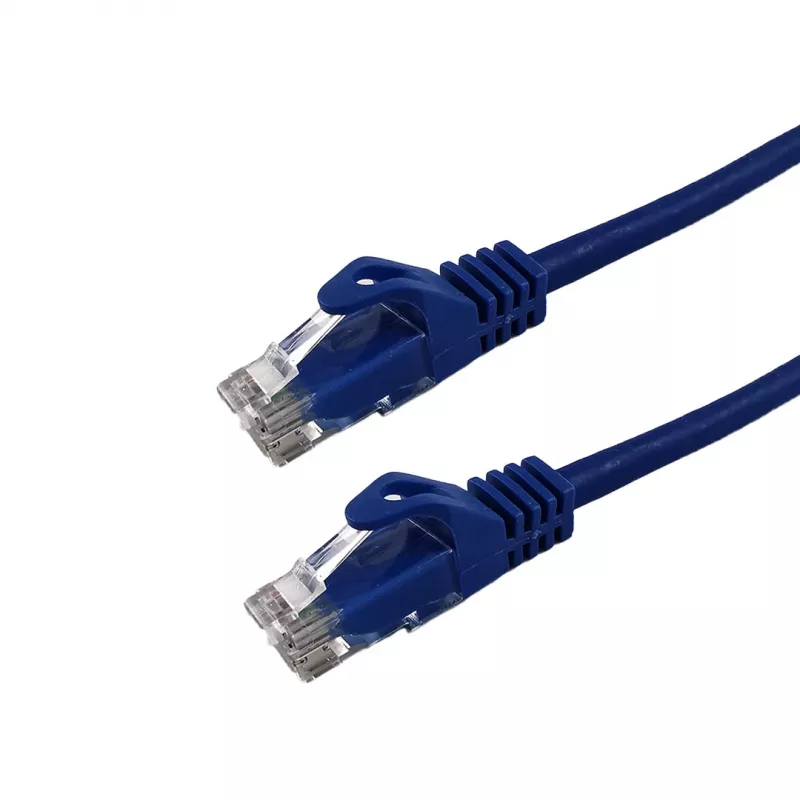

Grafenthal Καλώδιο patch CAT6 S/FTP CU LSZH 1,0m μπλε

The Grafenthal Patch Cable CAT6 S/FTP CU LSZH 1.0m Blue is a high-performance Ethernet patch cable designed for reliable network connections in data centers, server rooms, and professional environments. With S/FTP shielding and pure copper conductors, it ensures excellent signal integrity and protection against electromagnetic interference.

Advantages

This cable offers superior data transmission speeds up to 10 Gbps, making it ideal for bandwidth-intensive applications. The LSZH jacket provides enhanced safety by emitting low smoke and zero halogen in case of fire, suitable for enclosed spaces. Gold-plated connectors ensure corrosion resistance and optimal conductivity.

Suitable for

• Connecting network devices such as computers, switches, routers, and patch panels
• 10GBASE-T Ethernet networks requiring high-speed data transfer
• Installations where fire safety is a priority (LSZH jacket)
• Shielded environments to minimize crosstalk and EMI

Key specifications

• Cable Type: Patch Cable
• Cable Category: CAT6
• Shielding Type: S/FTP (Screened/Foiled Twisted Pair)
• Conductor Material: Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Length: 1.0 meter
• Color: Blue
• Connector Type: RJ45 Male to RJ45 Male
• Conductor Gauge: AWG 27/7 Stranded
• Bandwidth: Up to 250 MHz
• Data Transfer Rate: Up to 10 Gbps
• Wiring Standard: TIA/EIA-568B
• Number of Pairs: 4 Twisted Pairs
• Outer Diameter: Approx. 6.0 mm
• Connector Plating: Gold-plated
• Application: Network Connection, Ethernet
• Compliance: RoHS, CE
• Fire Rating: LSZH
• Operating Temperature: -20°C to 60°C

Recommendations

For optimal performance, use this cable with CAT6 or higher compatible devices. Ensure proper cable management to avoid bending beyond the recommended radius. Ideal for structured cabling systems requiring reliable and safe connections.
