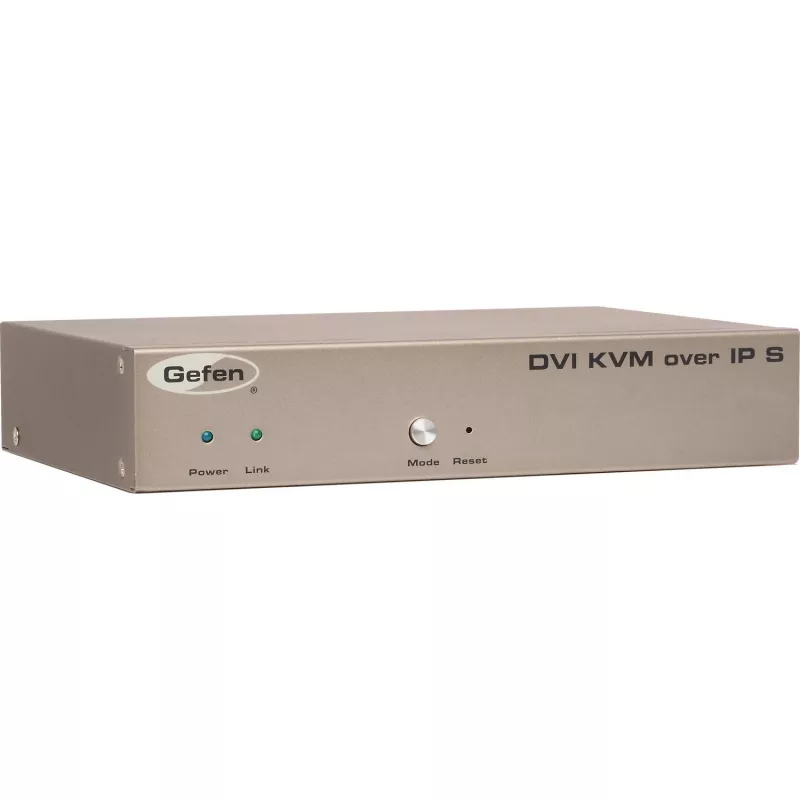

Gefen DVI KVM Over IP Πακέτο πομπού - Επέκταση Video/Audio/IR/USB/Serial

The Gefen EXT-DVIKVM-LANTX DVI KVM Over IP Sender Package enables seamless extension of DVI video, USB 2.0, analog audio, RS-232, and IR signals over a standard Gigabit Ethernet LAN. This transmitter unit is ideal for extending a KVM workstation up to 100 meters or more over a network, providing near-zero latency and full HD support.

Advantages

Extend your KVM setup over existing network infrastructure without dedicated cabling. Supports high-resolution video up to 1920x1200 (WUXGA) or 1080p Full HD. Bi-directional IR and RS-232 allow remote control of devices. USB 2.0 ensures compatibility with peripherals. HDCP compliant for protected content.

Suitable for

• Extending a DVI KVM workstation to a remote location
• Control rooms, digital signage, and broadcast environments
• Remote access to servers or computers over LAN

Key specifications

• Product Type: KVM Over IP Extender (Sender/Transmitter)
• Video Input: 1x DVI-I (Single Link)
• Max Resolution: 1920x1200 (WUXGA) or 1080p
• USB: 1x USB Type B (host), USB 2.0 for peripherals
• Audio: 1x 3.5mm Stereo Mini-Jack (input)
• Serial: 1x DB9 (Female) RS-232
• IR: Bi-directional via 3.5mm jack
• Network: 1x RJ-45 Gigabit Ethernet
• Power: 5V DC locking connector
• HDCP: Yes
• Mounting: Surface-mountable, optional rack kit

Recommendations

Use with a compatible Gefen receiver (EXT-DVIKVM-LANRX) for a complete extension solution. For best performance, use a dedicated Gigabit network switch.
