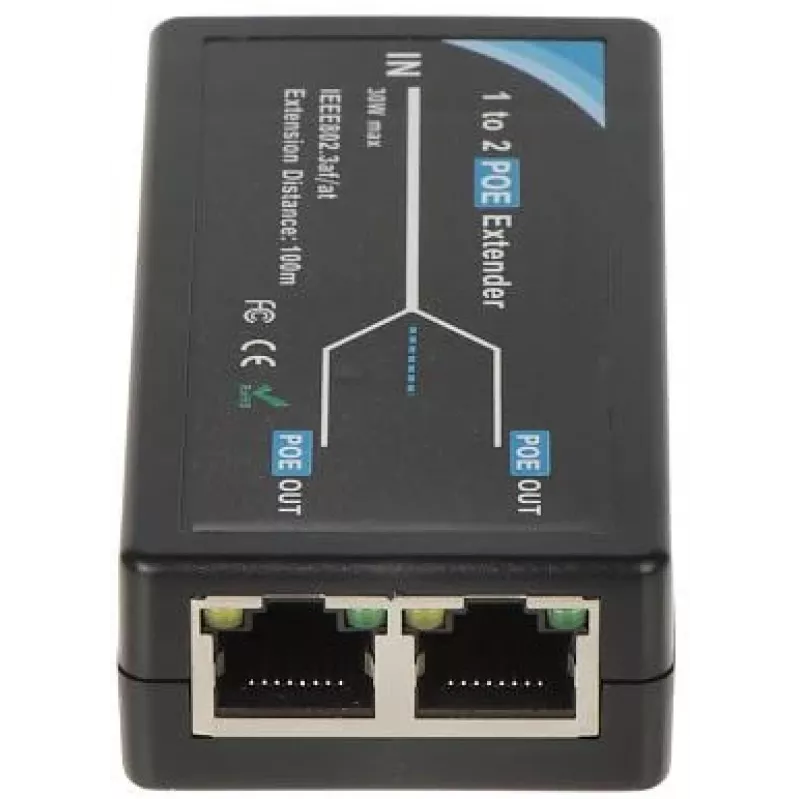

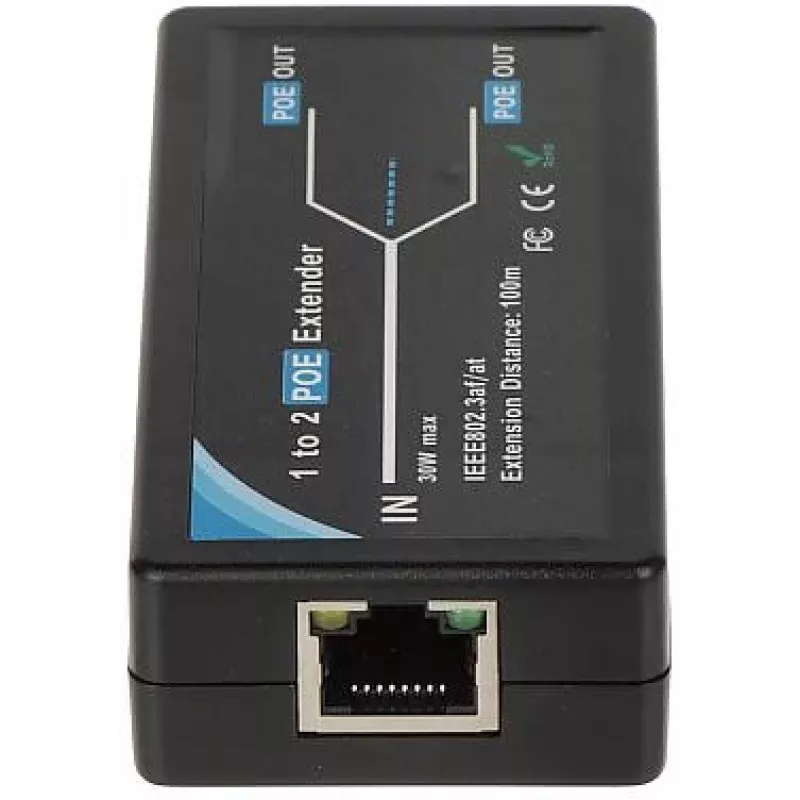

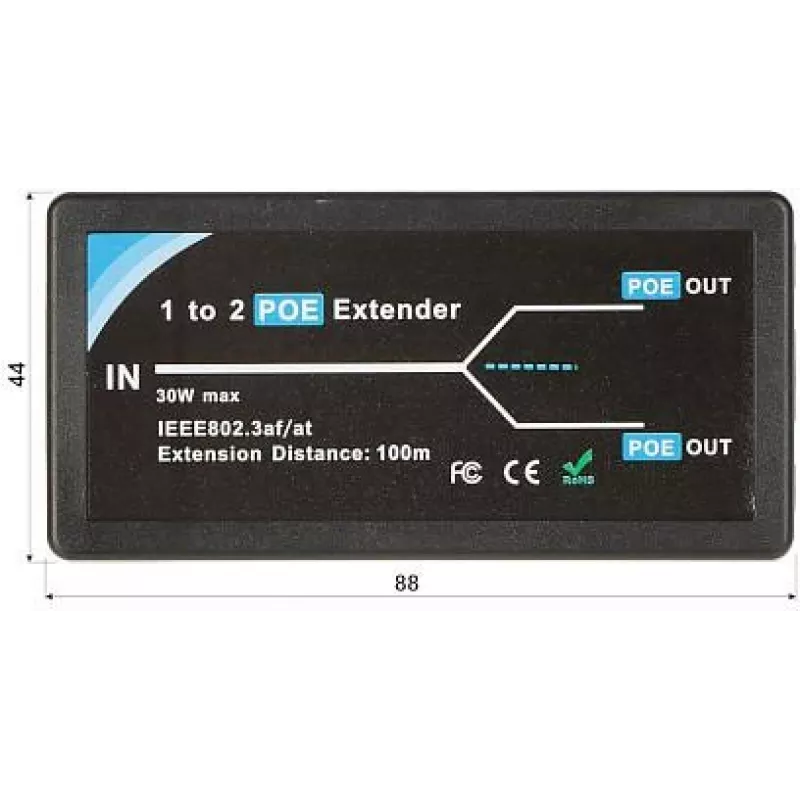

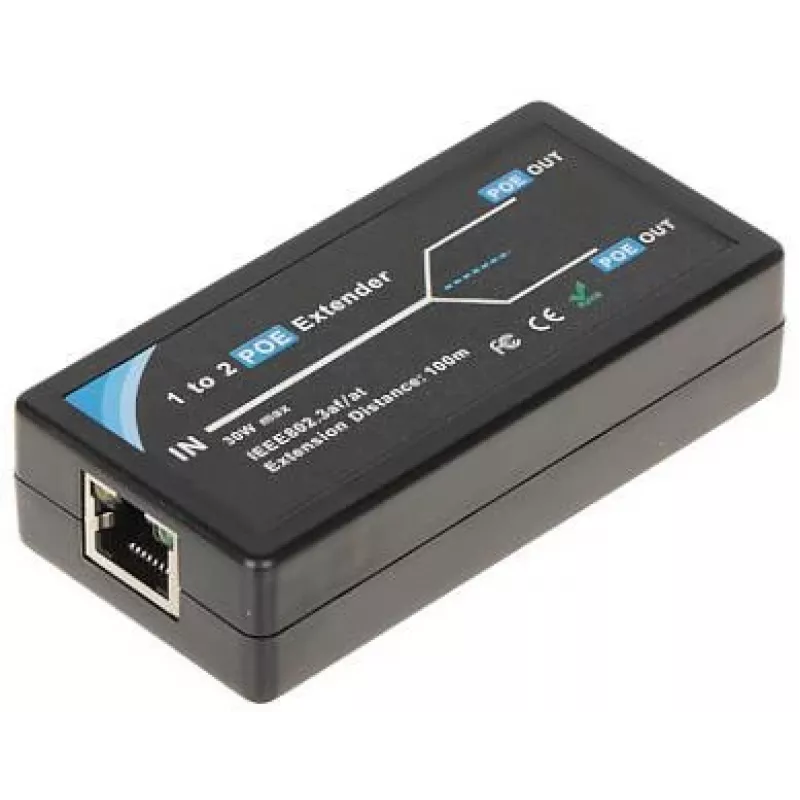

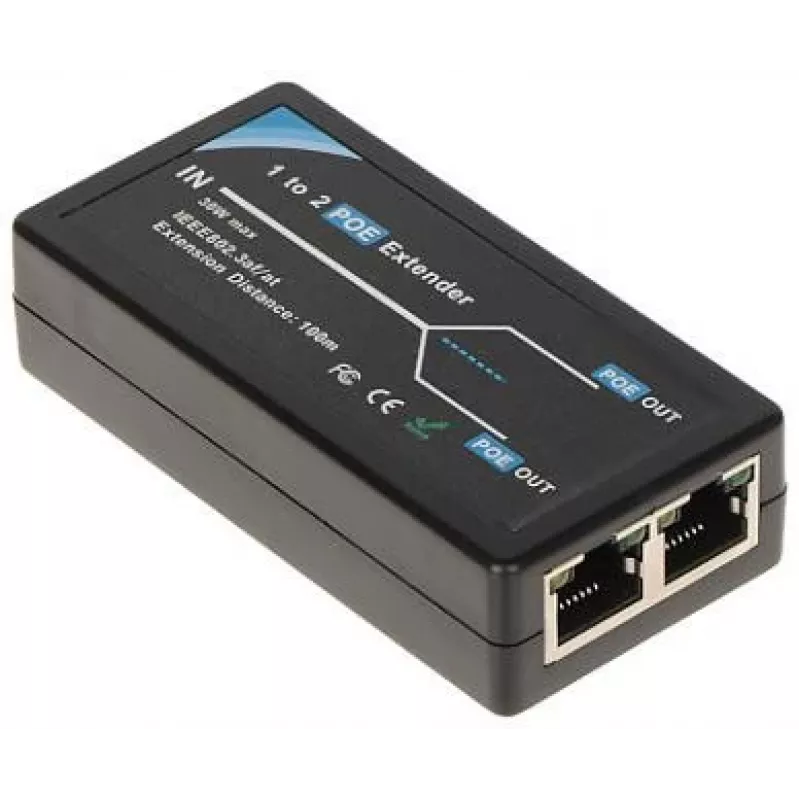

DELTA PoE Extender PFT1320 3 θυρών

The DELTA PoE Extender PFT1320 is a compact and reliable solution for extending Power over Ethernet (PoE) connections beyond the standard 100-meter limit. With three ports (one PoE input, two PoE outputs), it allows you to power and connect IP cameras, access points, and other PoE devices in remote locations without the need for additional power outlets.

Advantages

Extends Ethernet and PoE transmission distance up to 300 meters when used with ePoE NVR/Switch, or up to 200 meters with standard PoE switch. Supports IEEE 802.3af/at PoE input and provides up to 15.4W per PoE output port, with a total output power of 30W. Metal casing ensures durability and heat dissipation, while built-in ESD and surge protection safeguard connected equipment.

Suitable for

• Extending PoE connections for IP cameras in surveillance systems
• Powering wireless access points in hard-to-reach areas
• Deploying network devices where AC power is not available

Key specifications

• Product Type: PoE Extender
• Number of Ports: 3 (1x PoE In, 2x PoE Out)
• PoE Input Standard: IEEE 802.3af/at
• PoE Output Standard: IEEE 802.3af
• Data Rate: 10/100 Mbps
• Max PoE Output Power per Port: 15.4W
• Max Total PoE Output Power: 30W (when input is 802.3at)
• Max Transmission Distance (Standard): 100m
• Max Transmission Distance (with ePoE NVR/Switch): 300m
• Max Transmission Distance (with standard PoE switch): 200m
• Power Supply: PoE Powered (no external power required)
• Operating Temperature: -30°C to +65°C
• Storage Temperature: -40°C to +80°C
• Humidity: 5% to 95% RH (non-condensing)
• Protection: ESD, Surge Protection
• Casing Material: Metal
• Installation: Wall-mount, Junction Box Mount
• LED Indicators: Power, Link/Act, PoE Status
• Certifications: CE, FCC

Recommendations

For optimal performance, use with ePoE NVR/Switch to achieve maximum distance of 300 meters. Ensure the PoE input source provides sufficient power (at least 30W) for full output capability.
