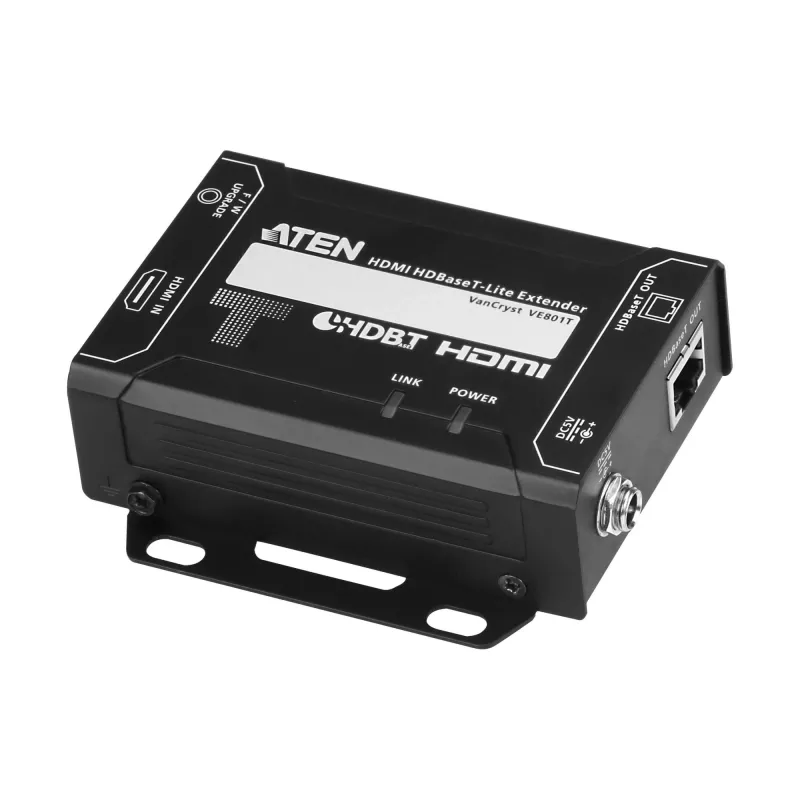

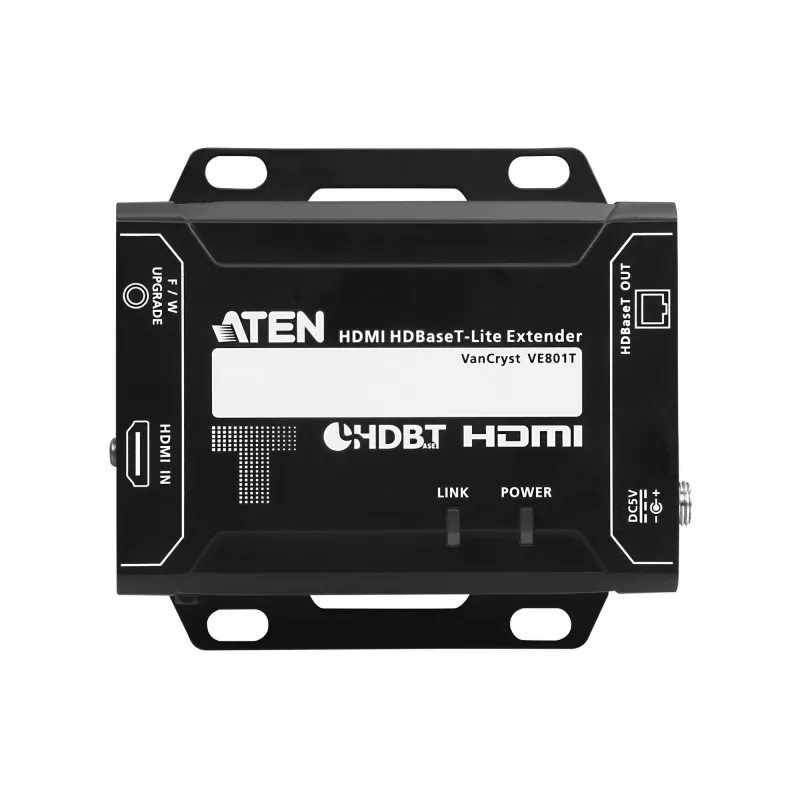

ATEN HDMI HDBaseT-Lite (Class B) πομπός (70m)

The ATEN VE801T-AT-G HDMI HDBaseT-Lite transmitter extends HDMI signals up to 70 m over a single Cat5e/6/6a cable while supporting 4K (3840 x 2160) resolution, 3D, Deep Color and HDCP. It transmits multichannel audio including Dolby Digital 5.1 and DTS HD and features a compact all-in-one housing with slip-resistant side grooves and visible LED status indicators for convenient mounting and installation.

Advantages

The AV transmitter provides long-distance HDMI extension with minimal setup using a single RJ-45 connection. Its support for high-resolution video and multichannel audio preserves source quality over extended runs. The compact, lightweight design (87 x 103 x 30 mm, 240 g) and slip-resistant grooves simplify installation and improve handling, while low power consumption (typical 1.85 W) makes it suitable for continuous operation.

Suitable for

• Extending HDMI signals to displays in digital entertainment centers
• Connecting source devices to remote projectors or TVs up to 70 m away
• AV installations in classrooms, meeting rooms and small commercial spaces

Key specifications

• Type: AV transmitter
• Model: VE801T-AT-G

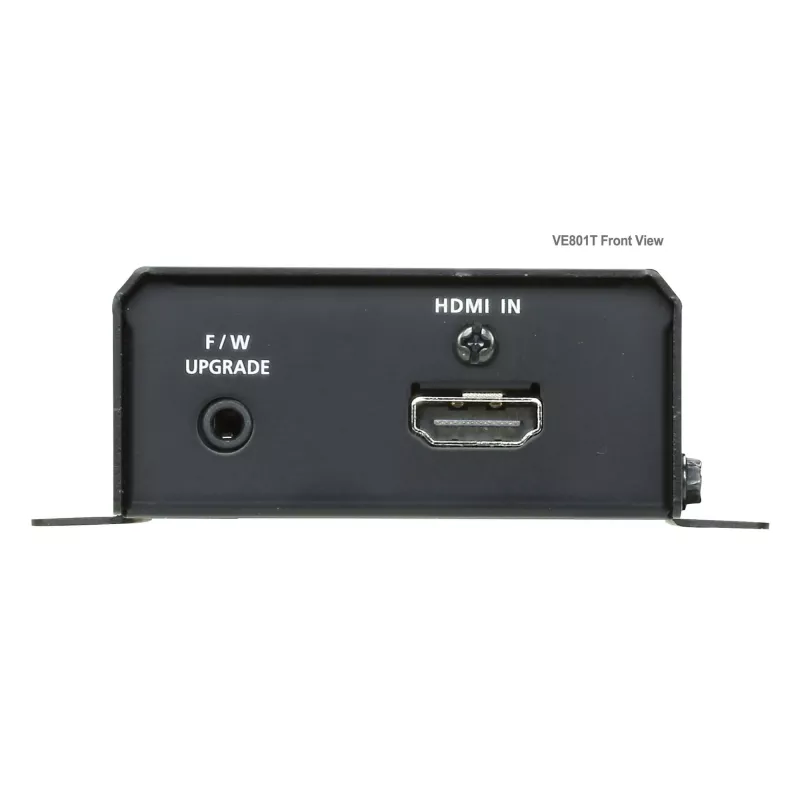

• HDMI in: 1

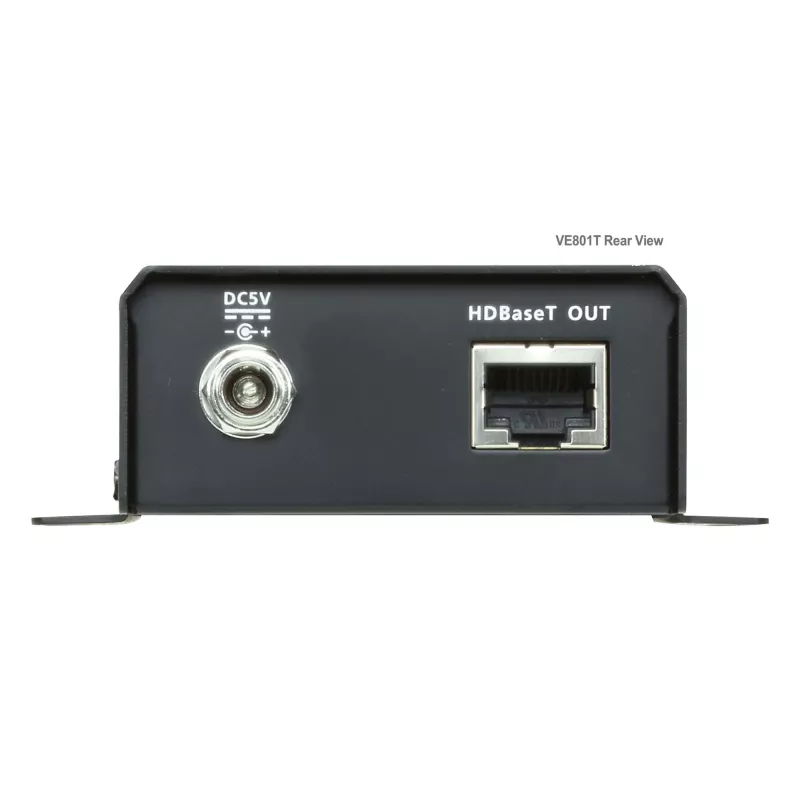

• RJ-45 output ports: 1
• Maximum resolution: 3840 x 2160 (4K)
• Maximum transfer distance: 70 m (over Cat5e/6/6a)
• Cable types supported: Cat5e, Cat6, Cat6a
• Product colour: Black
• Weight: 0.24 kg
• Typical power consumption: 1.85 W

How to use

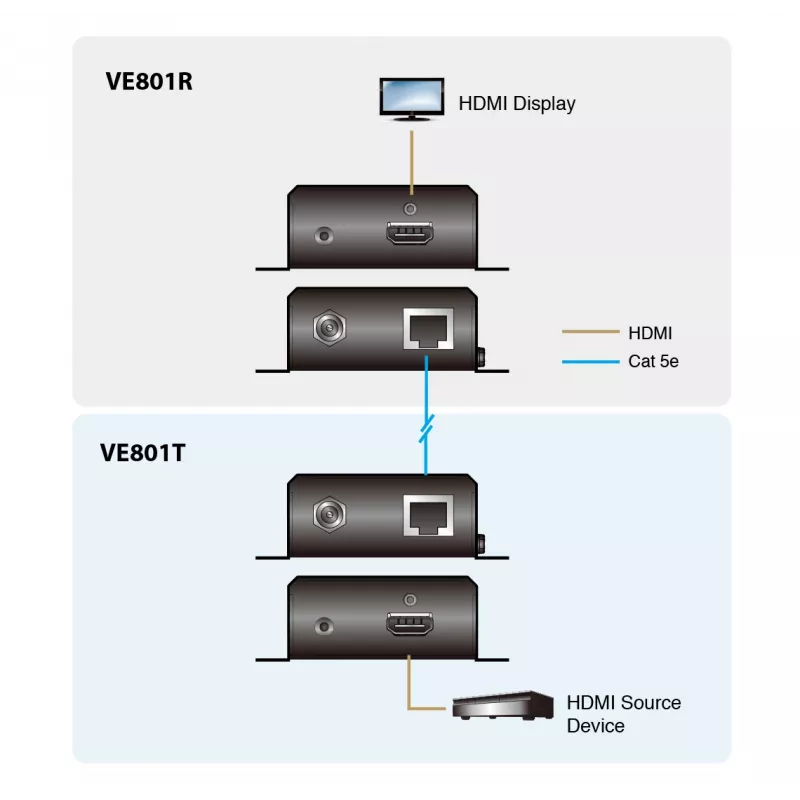

Connect the HDMI source (Blu‑ray player, set‑top box, PC, etc.) to the VE801T HDMI input, then run a single Cat5e/6/6a cable from the transmitter’s RJ-45 output to a compatible HDBaseT receiver such as the VE801R at the display end. Power on both units and the display; LED indicators on the transmitter show link and power status. Ensure HDCP and display settings on the source are compatible with the receiver and display for correct resolution and audio pass‑through.

Recommendations

Use quality Cat6 or Cat6a cable for the most reliable 4K performance over longer runs, keep cable runs within the specified 70 m limit, and pair the VE801T with a compatible HDBaseT receiver (for example VE801R) to ensure full video and audio compatibility.
