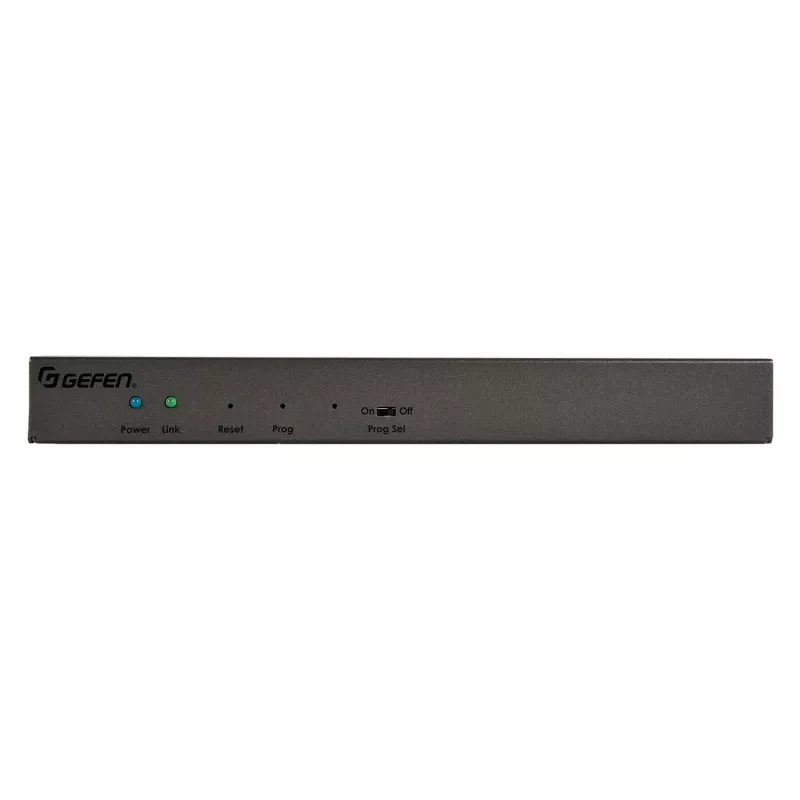

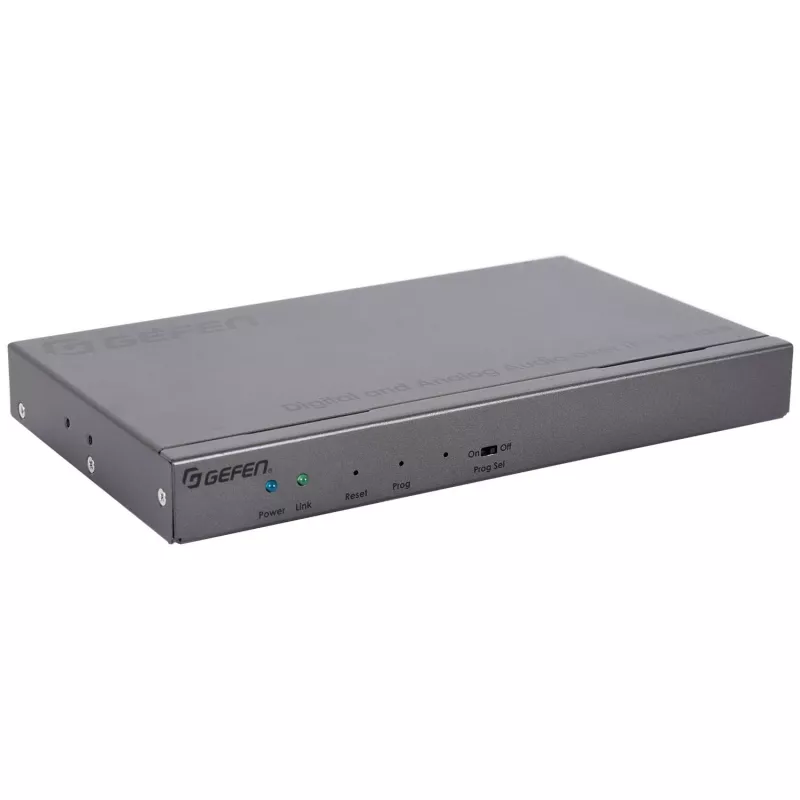

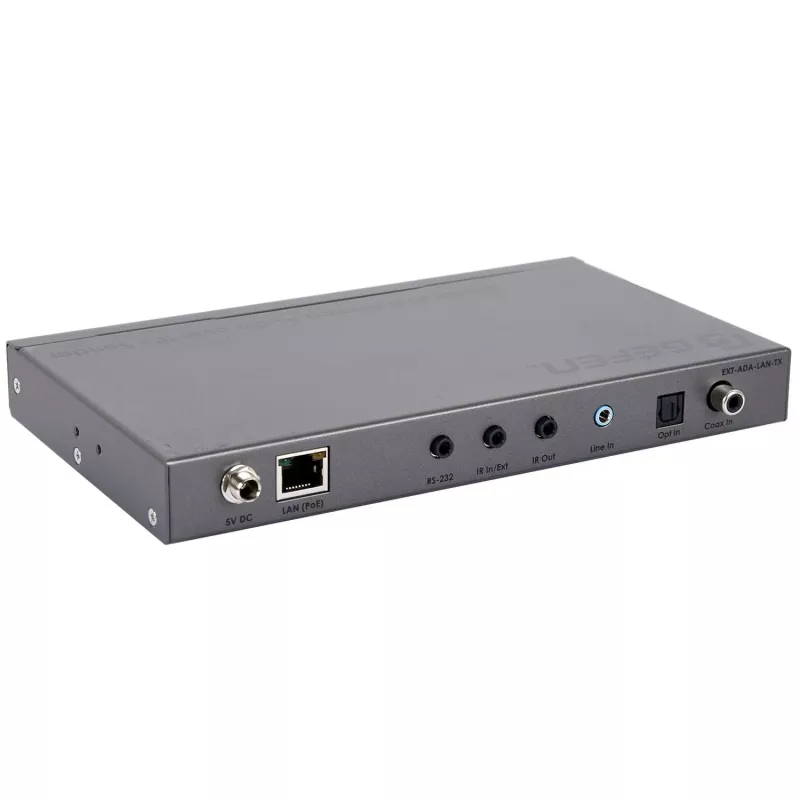

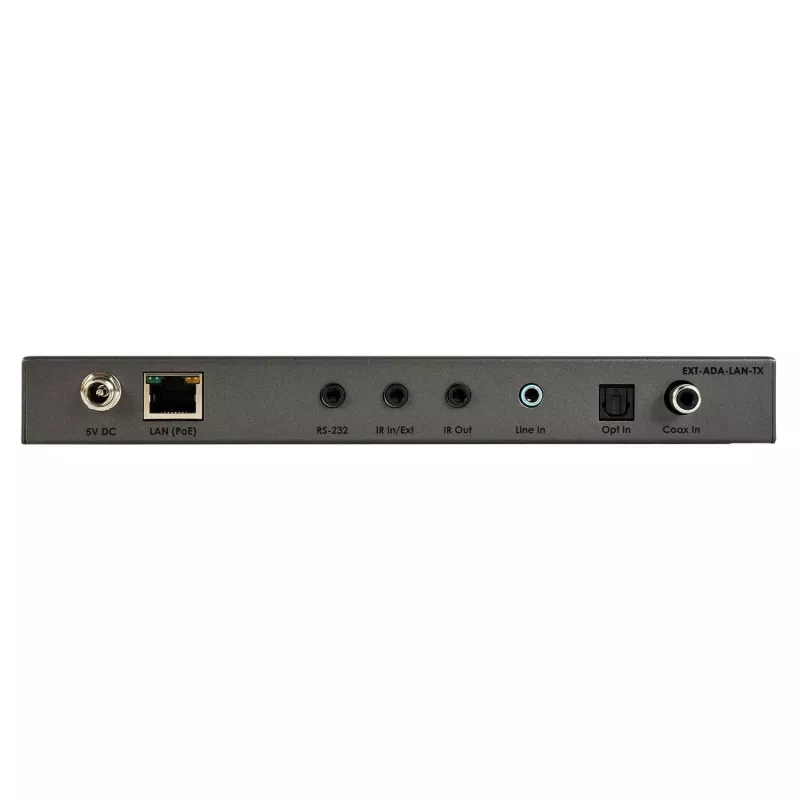

Gefen EXT-ADA-LAN-TX Πομπός Επέκτασης Audio/Serial RS-232 over IP

The Gefen EXT-ADA-LAN-TX is a professional Audio/Serial RS-232 over IP Extender Transmitter that enables the transmission of analog stereo audio and RS-232 serial signals over a standard IP network. Designed for reliable and high-quality signal extension, this transmitter works seamlessly with the Gefen EXT-ADA-LAN-RX receiver to extend audio and control signals up to 100 meters per network segment, limited only by your network infrastructure.

Advantages

This extender transmitter offers a cost-effective and flexible solution for extending audio and RS-232 signals over existing Ethernet cabling. It eliminates the need for long, expensive analog cable runs and provides easy integration into any IP-based network. The compact metal enclosure ensures durability and reliable performance in professional environments.

Suitable for

• Extending analog stereo audio from a source to a remote location over IP
• Controlling remote devices via RS-232 serial commands over a network
• Integration into AV systems, digital signage, and industrial control applications
• Use with Gefen EXT-ADA-LAN-RX receiver for a complete point-to-point or multi-point extension system

Key specifications

• Product Type: Audio/RS-232 over IP Extender Transmitter
• Signal Type: Analog Stereo Audio, RS-232 Serial
• Transmission Technology: IP (Ethernet)
• Network Interface: 1 x RJ-45 (100BaseT)
• Audio Input Connector: 1 x 3.5mm Stereo Mini-Jack
• RS-232 Input Connector: 1 x DB-9 Female
• Max Distance: Limited by network infrastructure (up to 100m per segment)
• Audio Frequency Response: 20 Hz - 20 kHz
• Audio Sample Rate: 44.1 kHz, 48 kHz
• Audio Bit Depth: 16-bit
• RS-232 Baud Rate: Up to 115200 bps
• Control Methods: IP (Telnet, Web GUI), RS-232
• Power Supply: 5V DC
• Power Consumption: 5W (max)
• Enclosure Material: Metal
• Operating Temperature: 0 to +40 °C
• Compatibility: Gefen EXT-ADA-LAN-RX Receiver

Recommendations

For optimal performance, pair this transmitter with the Gefen EXT-ADA-LAN-RX receiver. Ensure your network supports 100BaseT and that the total cable distance between transmitter and receiver does not exceed 100 meters per segment. Use shielded CAT5e or CAT6 cables for best signal integrity.
