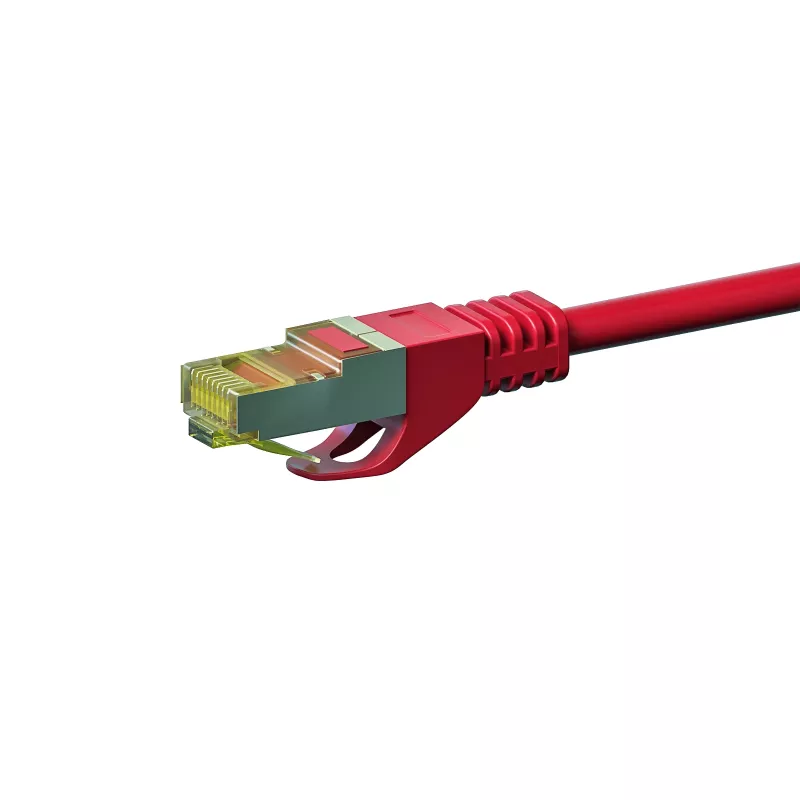

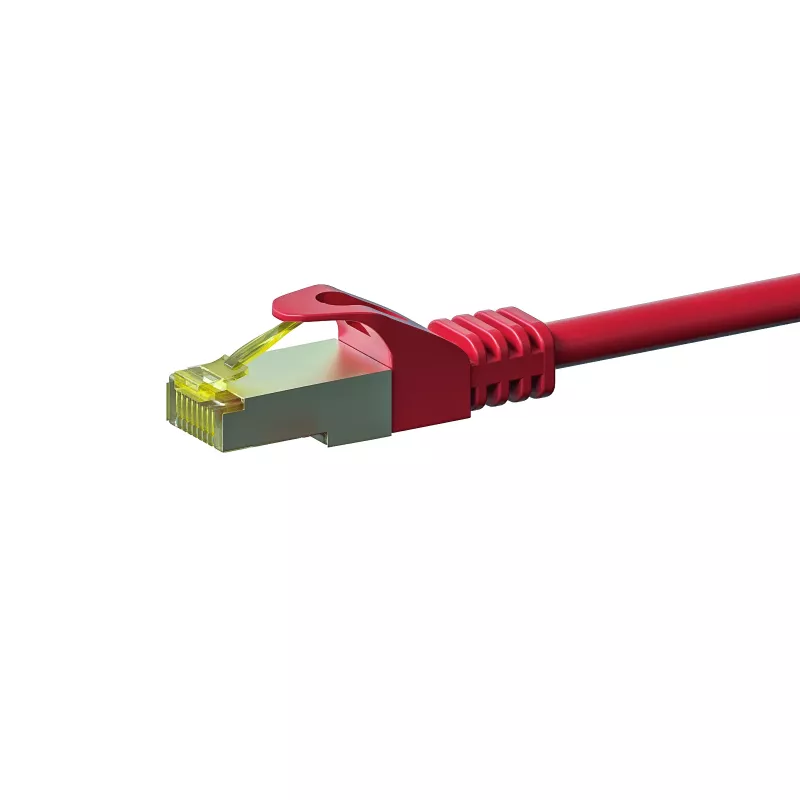

DSIT Cat.7 S/FTP PiMF RJ45 Καλώδιο δικτύου, Κόκκινο, 50 m (DC-75-500)

For installations where signal integrity cannot be compromised, the DSIT DC-75-500 delivers a 50-meter Cat.7 link built around individually foil-shielded pairs (PiMF) inside an overall braid — a construction that virtually eliminates alien crosstalk in dense cable trays. Unlike many Cat.7 patch cords that use solid conductors and become stiff, this reel uses stranded AWG 26/7 copper, so it remains flexible enough for clean routing through racks, conduits, and around corners while still supporting 10GBASE-T up to the full 600 MHz bandwidth.

Highlights

• 50 m red Cat.7 S/FTP cable with PiMF shielding for maximum noise immunity
• Stranded AWG 26/7 copper conductors balance performance and flexibility
• Gold-plated RJ45 connectors (50 µm) on both ends for reliable contact
• 10 Gigabit Ethernet support with 600 MHz bandwidth, backward compatible
• PVC jacket rated for -20 °C to 60 °C, RoHS compliant

In daily use

Terminate this cable into patch panels, wall outlets, or directly between switches and servers. The S/FTP design keeps your 10G links stable even when bundled with power cables, and the red jacket makes it easy to identify critical runs. Because it is supplied as a 50 m reel, you can cut to exact length and add your own connectors or keystone jacks, reducing waste in structured cabling projects. The stranded conductors survive repeated bending, so it is also suitable for temporary setups or equipment that gets moved.

Full specifications

• Cable standard: Category 7 (Cat.7)
• Shielding: S/FTP (Screened Foiled Twisted Pair), PiMF (Pairs in Metal Foil)
• Connectors: RJ45 male to RJ45 male, gold-plated (50 µm)
• Length: 50 meters
• Colour: Red
• Data rate: up to 10 Gbps (10GBASE-T)
• Bandwidth: 600 MHz
• Conductor: stranded copper, AWG 26/7
• Jacket: PVC
• Impedance: 100 Ohm
• Operating temperature: -20 °C to 60 °C
• Wiring standard: TIA/EIA 568B
• Compatibility: Cat.6a, Cat.6, Cat.5e
• Certifications: RoHS

Final note

Choose the DSIT DC-75-500 when you need a high-performance Cat.7 cable that combines PiMF shielding, stranded flexibility, and a generous 50 m length — all ready for 10G networks today and tomorrow.
