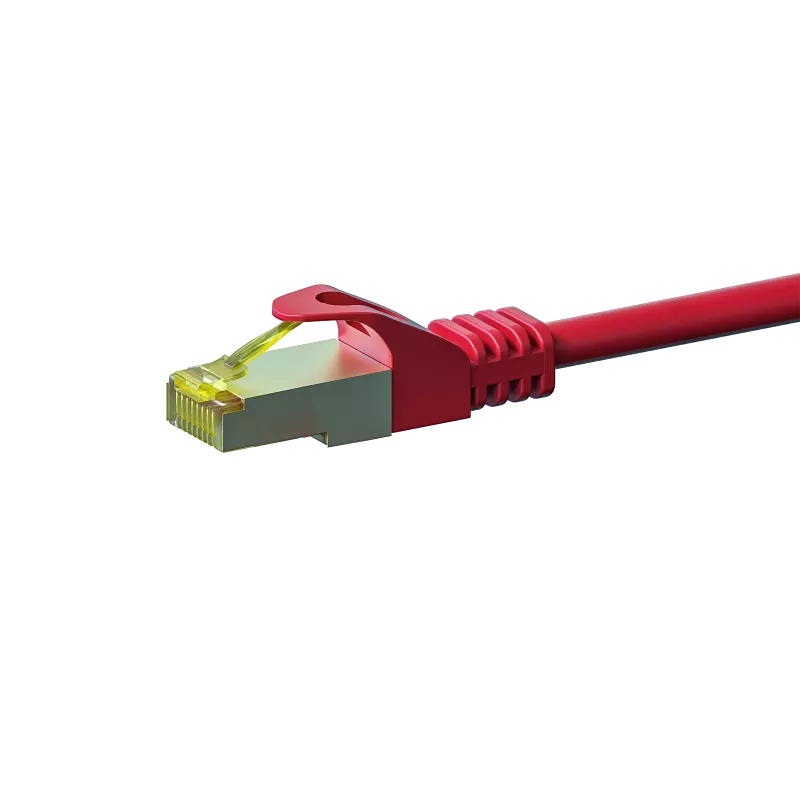

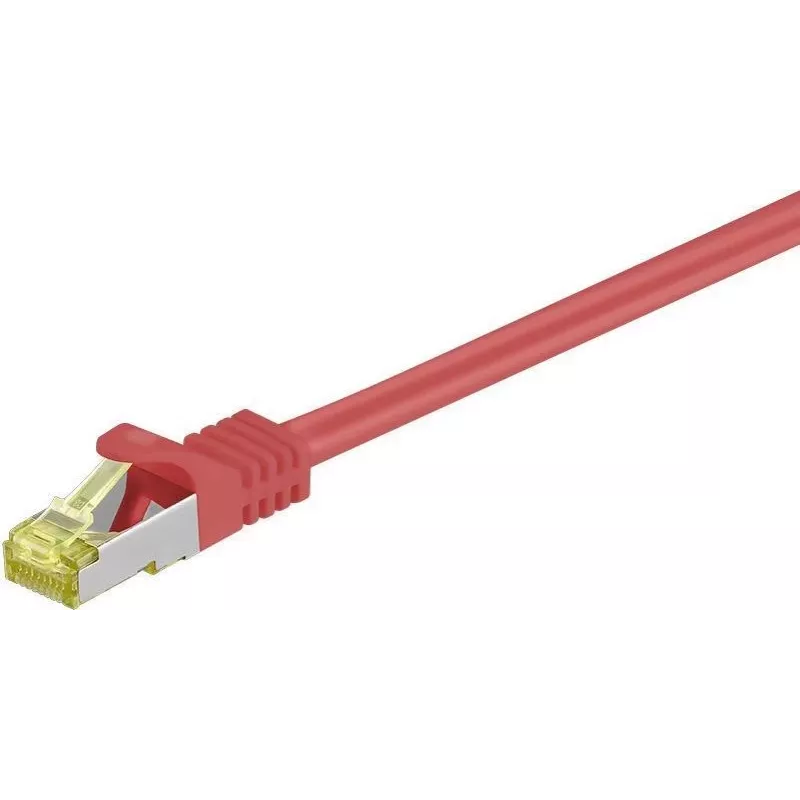

DSIT Καλώδιο δικτύου Cat.7 S/FTP PiMF RJ45 - 7,5 m κόκκινο

Where lesser Cat.6 cables fall short, the DSIT Cat.7 S/FTP PiMF cable steps in with individually foil-wrapped pairs and an overall braid shield. This construction virtually eliminates crosstalk and electromagnetic interference, making it a dependable choice for 10 Gigabit Ethernet in demanding environments. The 7.5-meter length bridges the gap between rack and workstation, while the red LSZH jacket adds visibility and safety.

Highlights

• Cat.7 raw cable construction with S/FTP shielding (PiMF) for maximum noise immunity
• Supports 10GBASE-T Ethernet up to 600 MHz bandwidth
• Pure copper conductors (23 AWG) ensure optimal conductivity and PoE support
• Gold-plated RJ45 connectors with snagless boots for reliable, durable connections
• LSZH jacket: low smoke, zero halogen for enhanced fire safety
• Backward compatible with Cat.6a, Cat.6, Cat.5e, and Cat.5 networks

In daily use

This cable is ideal for data centers, server rooms, and high-density office environments where 10G links are required. The robust shielding maintains signal quality even near power lines or other interference sources. The red color aids in cable management and identification. The snagless boot protects the locking tab during installation and removal, extending the cable's life in frequently changed setups.

Full specifications

• Product Type: Network Cable (Patch Cable)
• Cable Category: Cat.7 (Raw Cable)
• Connector Type: RJ45 Male to RJ45 Male
• Shielding: S/FTP (Screened Foiled Twisted Pair) with PiMF
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth / Frequency: Up to 600 MHz
• Cable Length: 7.5 meters
• Color: Red
• Conductor Material: Pure Copper (Cu)
• Conductor Gauge: 23 AWG
• Number of Pairs: 4 Twisted Pairs
• Wiring Standard: TIA/EIA-568B
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Connector Plating: Gold-plated contacts (50µm)
• Boot Type: Snagless / Strain Relief Boot
• Backward Compatibility: Cat.6a, Cat.6, Cat.5e, Cat.5
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Final note

For high-speed networking where signal integrity is paramount, the DSIT Cat.7 S/FTP PiMF cable delivers 10 Gigabit performance with superior shielding. Unlike standard Cat.6 cables, this cable uses individually foil-wrapped pairs (PiMF) plus an overall braid shield, virtually eliminating crosstalk and EMI. The 7.5-meter length offers flexibility for rack-to-workstation runs, while the red LSZH jacket adds visibility and safety in commercial environments.
