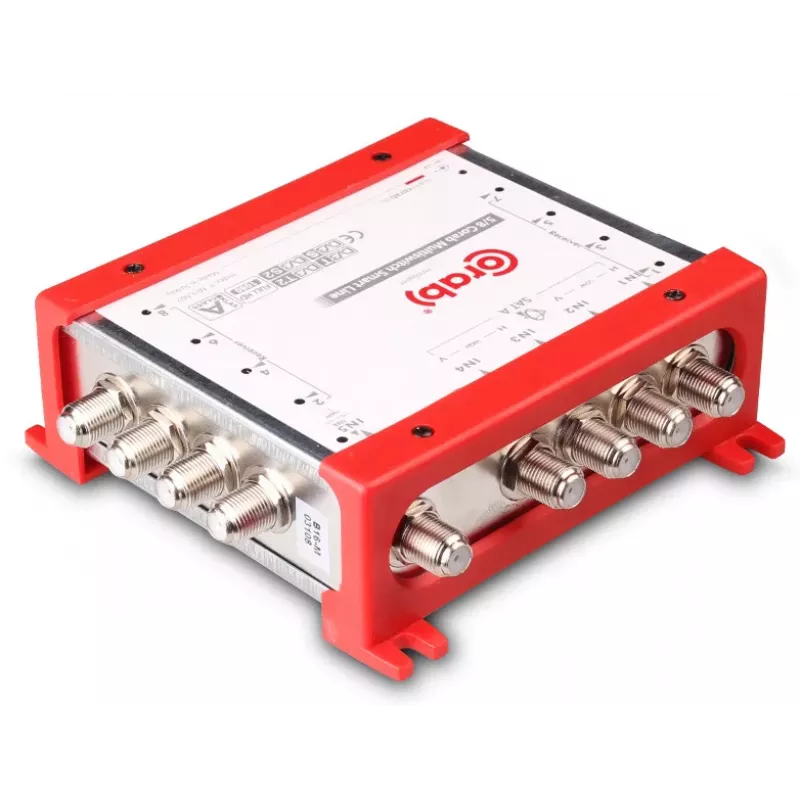

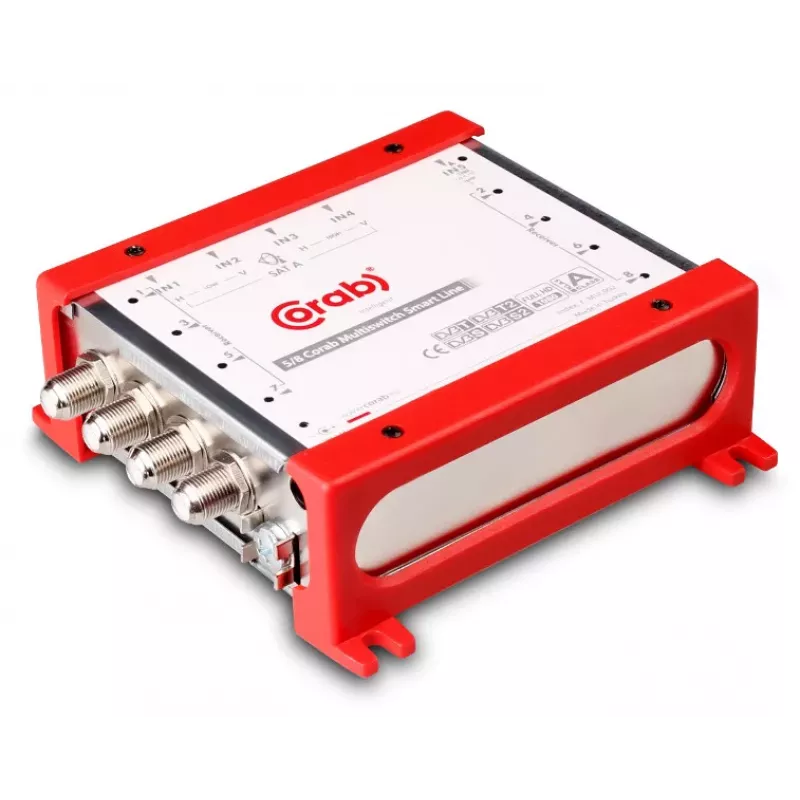

CORAB MULTISWITCH SMART LINE 5/8

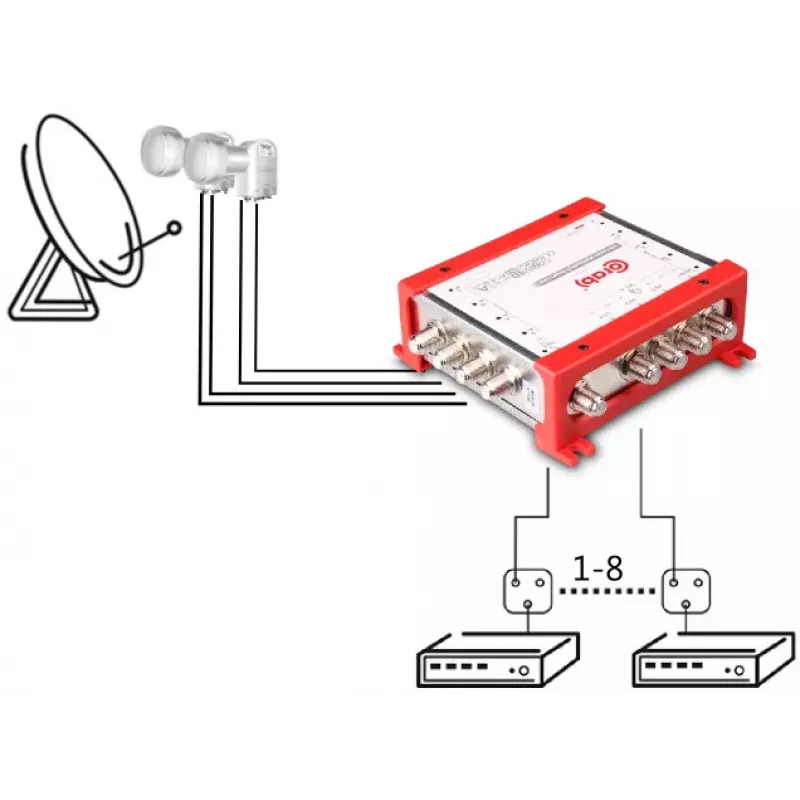

The CORAB MULTISWITCH SMART LINE 5/8 is a high-performance satellite multiswitch designed for distributing satellite and terrestrial signals to up to 8 receivers. Ideal for single or multi-dwelling installations, it supports Quattro LNB systems and offers reliable signal distribution with low insertion loss and high isolation.

Advantages

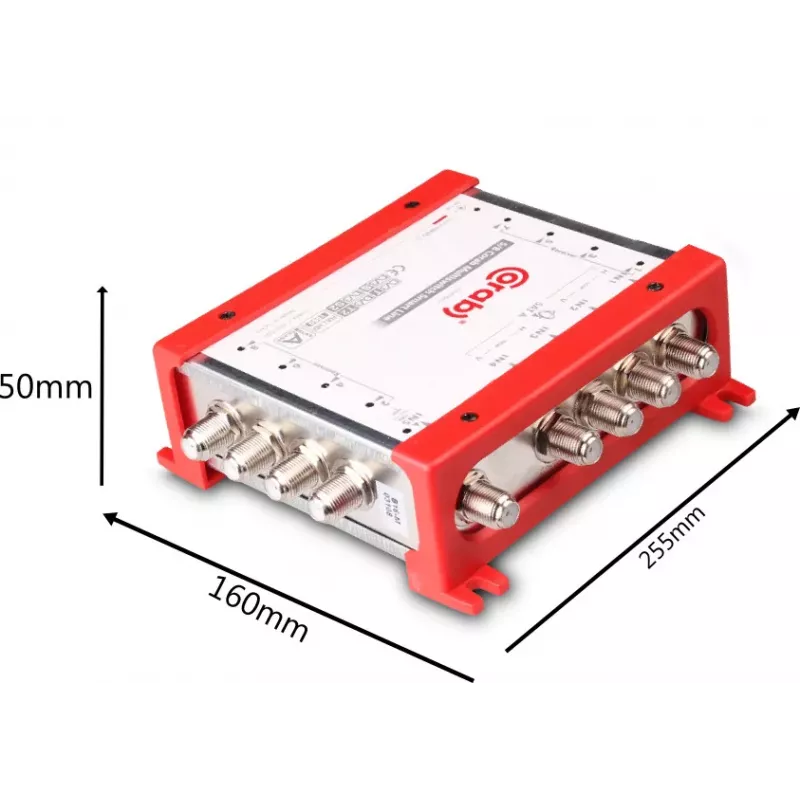

This multiswitch ensures excellent signal quality with minimal loss, thanks to its low insertion loss values of -3 dB (SAT trunk) and -2 dB (SAT receiver output). High isolation between outputs (>25 dB) prevents interference, making it suitable for demanding installations. The compact design and external 18V DC power supply simplify integration.

Suitable for

• Satellite TV distribution in apartments, hotels, and office buildings
• Systems using Quattro LNB and DiSEqC 2.0 control
• Combined satellite and terrestrial signal distribution

Key specifications

• Product Type: Satellite Multiswitch
• Number of Satellite Inputs: 4 (for Quattro LNB)
• Number of Terrestrial Inputs: 1
• Number of Outputs (Receivers): 8
• Satellite Frequency Range: 950 - 2150 MHz
• Terrestrial Frequency Range: 47 - 862 MHz
• Control Protocol: DiSEqC 2.0 (compatible with 1.0)
• Switching Signals: 13/18V, 0/22kHz
• Input/Output Connectors: F-type
• Satellite Insertion Loss (Trunk): -3 dB
• Terrestrial Insertion Loss (Trunk): -2 dB
• Satellite Insertion Loss (Receiver Output): -2 dB
• Terrestrial Insertion Loss (Receiver Output): -2 dB
• Isolation (SAT/SAT): >25 dB
• Isolation (SAT/TER): >25 dB
• Isolation (Output/Output): >25 dB
• Max Output Level (SAT): 95 dBµV
• Max Output Level (TER): 85 dBµV
• Power Supply: External 18V DC (adapter usually included)
• Operating Temperature: -20°C to +50°C

Recommendations

For optimal performance, use with a Quattro LNB and ensure proper grounding. The multiswitch is compatible with DiSEqC 2.0 receivers and can be cascaded for larger installations.
