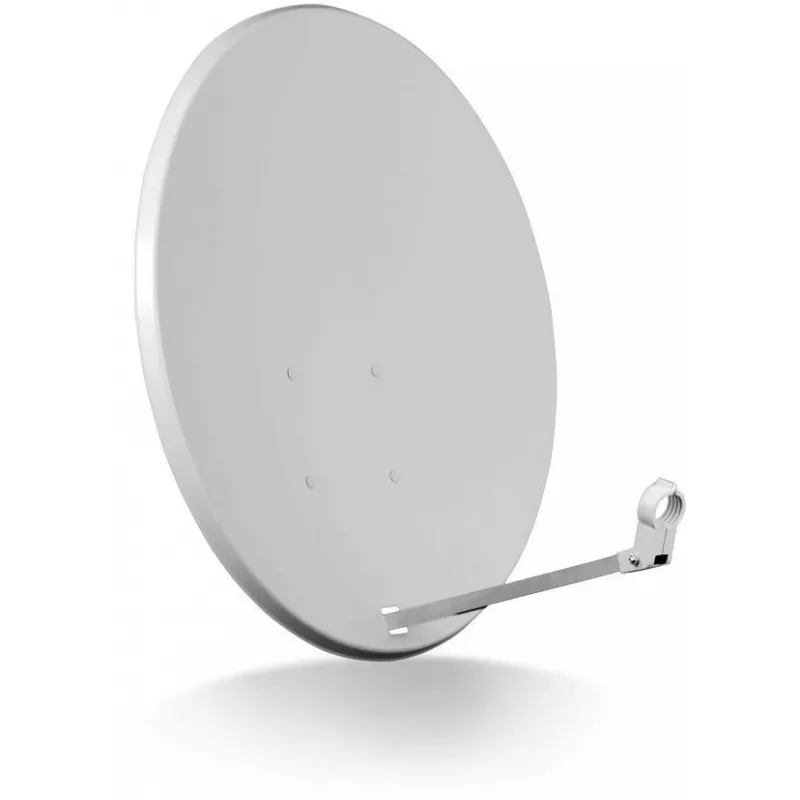

CORAB Offset Δορυφορικό Πιάτο 80 cm Ανοιχτό Γκρι (COR-800SAE-J)

The CORAB COR-800SAE-J is a high-quality offset satellite dish with a nominal diameter of 80 cm, designed for reliable Ku-band reception. Manufactured from galvanized steel with a powder-coated finish in light grey (RAL 7035), this dish offers excellent durability and weather resistance. Ideal for both residential and commercial satellite installations, it provides high gain and stable performance even in challenging conditions.

Advantages

Robust galvanized steel construction with powder coating ensures long-lasting protection against corrosion and UV radiation. The offset design minimizes snow and rain accumulation, maintaining signal quality. With a wind load resistance of up to 200 km/h and an operating temperature range from -40°C to +60°C, this dish is built to withstand extreme environments. Easy to install with a pole mount compatible with 32-60 mm poles.

Suitable for

• Satellite TV reception (Ku-band)
• Broadband satellite internet
• Data communication systems
• Residential and small commercial installations

Key specifications

• Dish Type: Offset
• Nominal Diameter: 80 cm
• Reflector Material: Galvanized Steel
• Coating: Powder Coated
• Colour: Light Grey (RAL 7035)
• Dimensions (W x H): 720 x 800 mm
• Frequency Range: 10.7 - 12.75 GHz
• Gain: 38.5 dB @ 10.75 GHz, 39.5 dB @ 12.75 GHz
• Offset Angle: 26°
• F/D Ratio: 0.6
• LNB Clamp Diameter: 40 mm

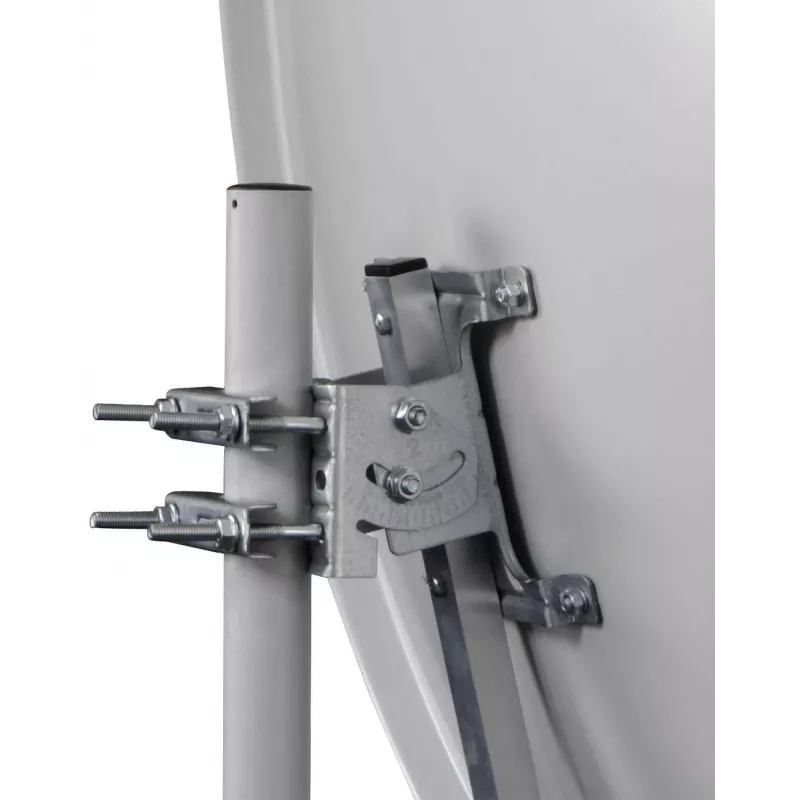

• Mounting: Pole Mount (pole diameter 32-60 mm)
• Elevation Adjustment: 10° - 80°
• Wind Load Resistance: up to 200 km/h
• Operating Temperature: -40°C to +60°C

Recommendations

For optimal performance, pair this dish with a high-quality LNB and use proper cable connections. Ensure the mounting pole is securely fixed and aligned to the satellite position. Regular maintenance of the reflector surface will help maintain signal strength over time.
