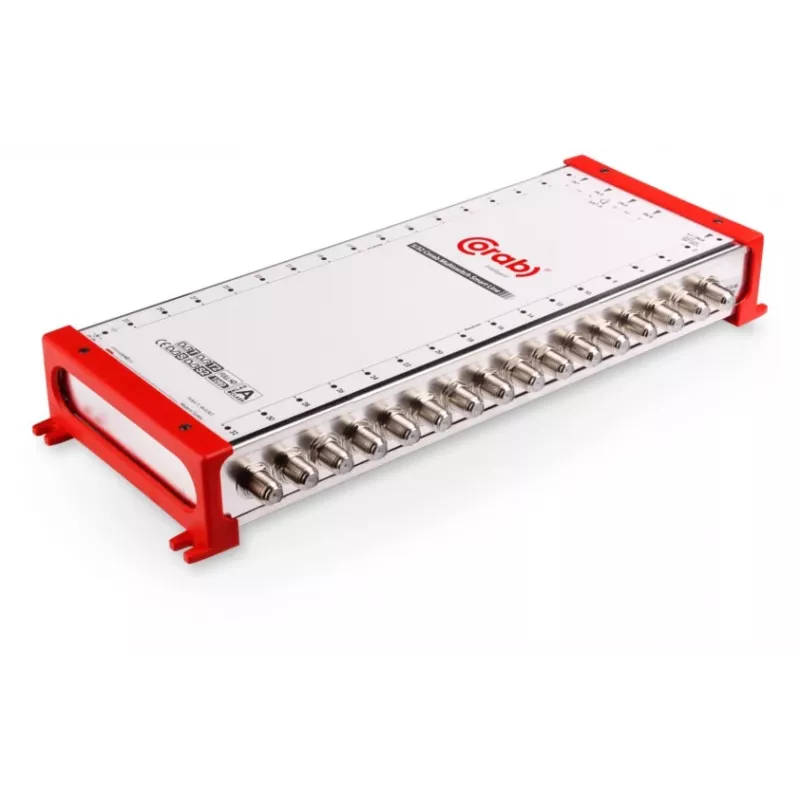

MULTISWITCH SMART LINE 5/32 CORAB

The CORAB MULTISWITCH SMART LINE 5/32 is a high-performance satellite multiswitch designed for distributing satellite and terrestrial signals to up to 32 receivers. Ideal for multi-dwelling units and large installations, it ensures reliable signal distribution with minimal loss.

Advantages

Supports DiSEqC 2.0 protocol for advanced switching and control. Built-in power supply simplifies installation. High isolation between ports prevents interference.

Suitable for

• Satellite TV distribution in apartment buildings, hotels, and offices
• Systems requiring up to 32 receiver connections
• Combined satellite and terrestrial signal distribution

Key specifications

• Inputs: 5 (4x Satellite IF, 1x Terrestrial)
• Outputs: 32 for satellite receivers
• Satellite frequency range: 950-2150 MHz
• Terrestrial frequency range: 47-862 MHz
• Switching protocol: DiSEqC 2.0
• Power supply: Built-in 230V AC, 50/60Hz
• Connectors: F-type

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. Compatible with all standard satellite receivers.
