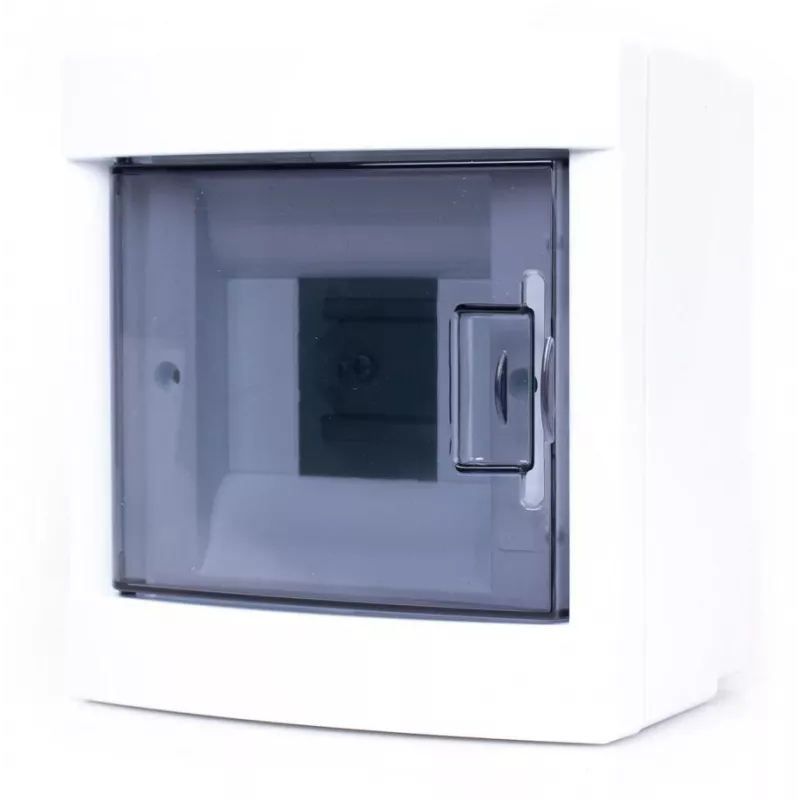

ADELID RM-NT-04T Επιτοίχιος Πίνακας Διανομής 4 Modules

The ADELID RM-NT-04T is a high-quality surface-mounted distribution board designed for indoor electrical installations. With a compact 4-module design, it provides reliable protection and organization for electrical circuits in residential and commercial settings.

Advantages

This distribution board offers easy installation and maintenance thanks to its transparent door, allowing quick visual inspection of the internal components. The included DIN rail and N+PE terminal blocks simplify wiring, while the IP40 rating ensures protection against dust and splashes.

Suitable for

• Residential electrical distribution
• Small commercial installations
• Lighting and power circuits

Key specifications

• Mounting Type: Surface-mounted
• Number of Modules: 4
• Number of Rows: 1
• IP Protection Rating: IP40
• Material: ABS Plastic

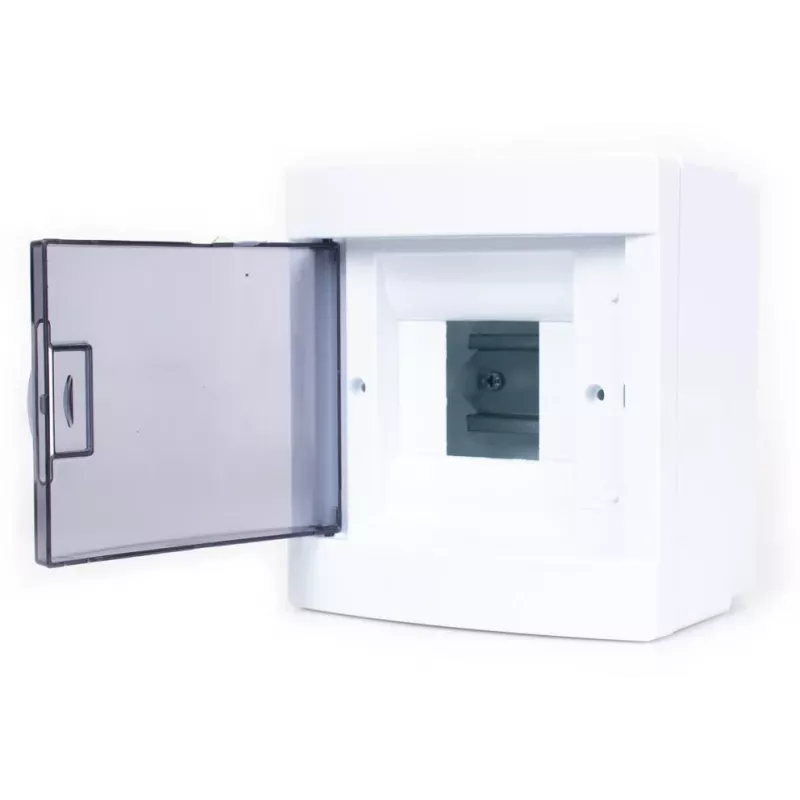

• Door Type: Transparent
• Color: White

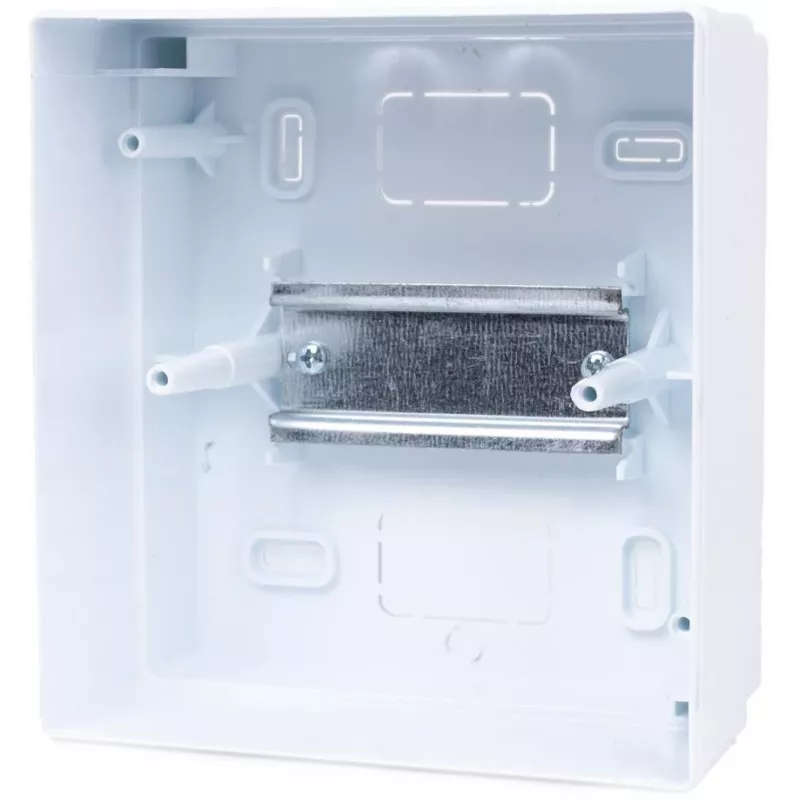

• DIN Rail Included: Yes

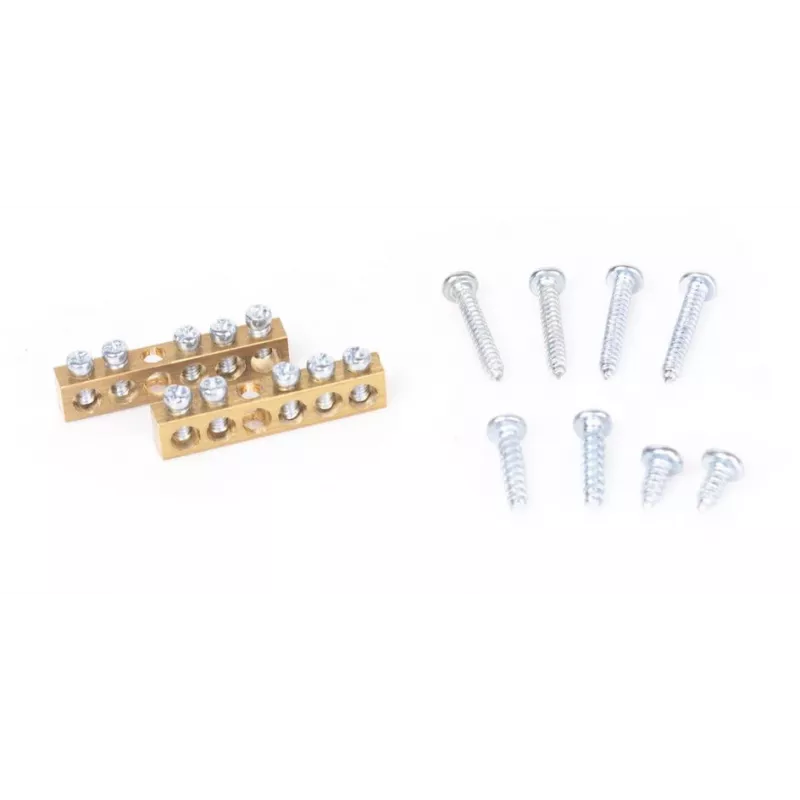

• Terminal Blocks Included: N+PE (Neutral and Earth)
• Rated Insulation Voltage: 500 V
• Rated Current (Enclosure): 63 A
• Glow-Wire Test Temperature: 650°C
• Operating Temperature Range: -5°C to +40°C
• Standards Compliance: PN-EN 60670-24, PN-EN 62208
• Halogen-Free: Yes

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. This distribution board is suitable for use with standard modular devices such as circuit breakers and RCDs.
