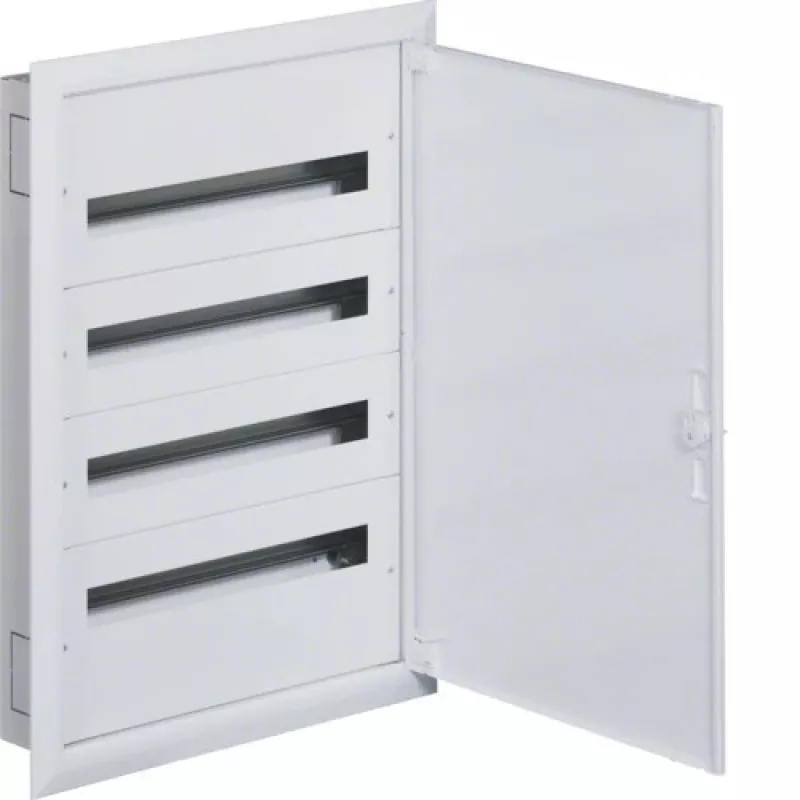

Hager FW424FT Ερμάριο Διανομής Χωνευτό IP30 4x24 Μονάδες 96 Συνολικά

The Hager FW424FT is a high-quality flush-mounted electrical enclosure designed for residential, commercial, and light industrial distribution applications. With a robust steel sheet construction and a white RAL 9010 door, this enclosure offers reliable protection and a clean aesthetic. It accommodates up to 96 modules (4 rows x 24 modules) and includes terminal blocks for neutral and protective earth conductors.

Advantages

Space-efficient design with 4 rows and 24 modules per row, allowing for organized and flexible circuit distribution. The flush-mounting installation saves space and provides a seamless finish. The enclosure is rated IP30 for protection against solid objects and IK07 for impact resistance, ensuring durability in demanding environments.

Suitable for

• Residential electrical distribution boards
• Commercial building power distribution
• Light industrial control and distribution panels

Key specifications

• Mounting Type: Flush-mounted
• IP Protection Rating: IP30
• Number of Rows: 4
• Modules per Row: 24
• Total Modules: 96
• Enclosure Material: Steel sheet
• Door Material: Steel, White (RAL 9010)
• Color: White (RAL 9010) for door/frame, Grey for interior
• Rated Insulation Voltage (Ui): 500 V AC
• Rated Operational Voltage (Ue): 400 V AC
• Protection Class: Class I
• Impact Resistance: IK07
• Glow Wire Test: 650 °C (for plastic parts)
• Standards: EN 61439-3, EN 62208
• Recess Dimensions (H x W x D): 705 x 510 x 90 mm
• Door Opening Angle: 120°

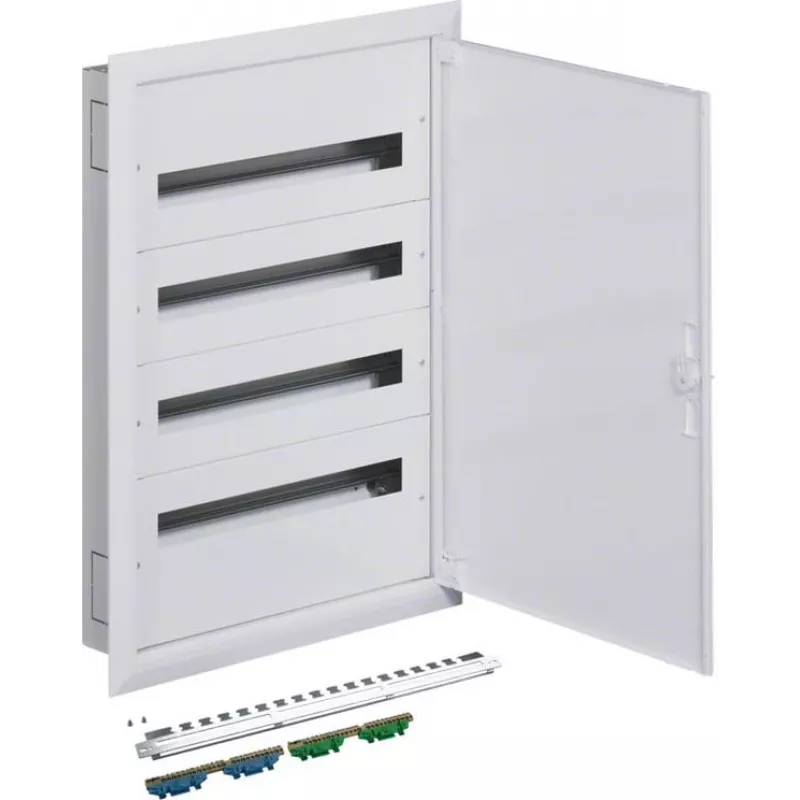

• Terminal Blocks: Included (N+PE)

Recommendations

For optimal installation, ensure the recess dimensions match the enclosure requirements. Use appropriate cable glands for IP30 protection. This enclosure is ideal for new constructions or renovations where a flush-mounted distribution board is desired.
