ADELID RM-PT-08P Χωνευτός Πίνακας Διανομής 8 Modules, Λευκό

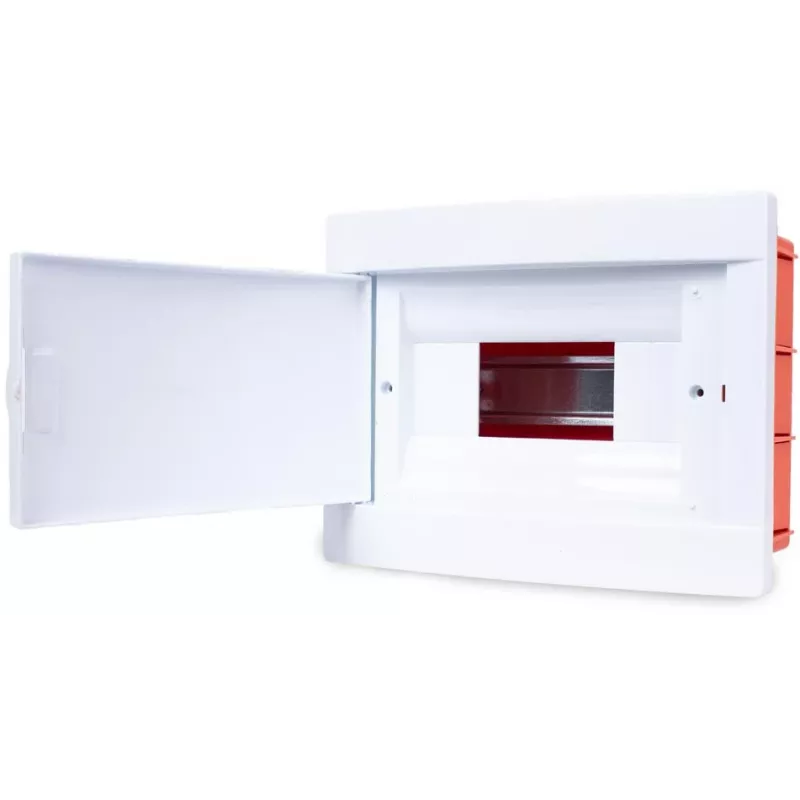

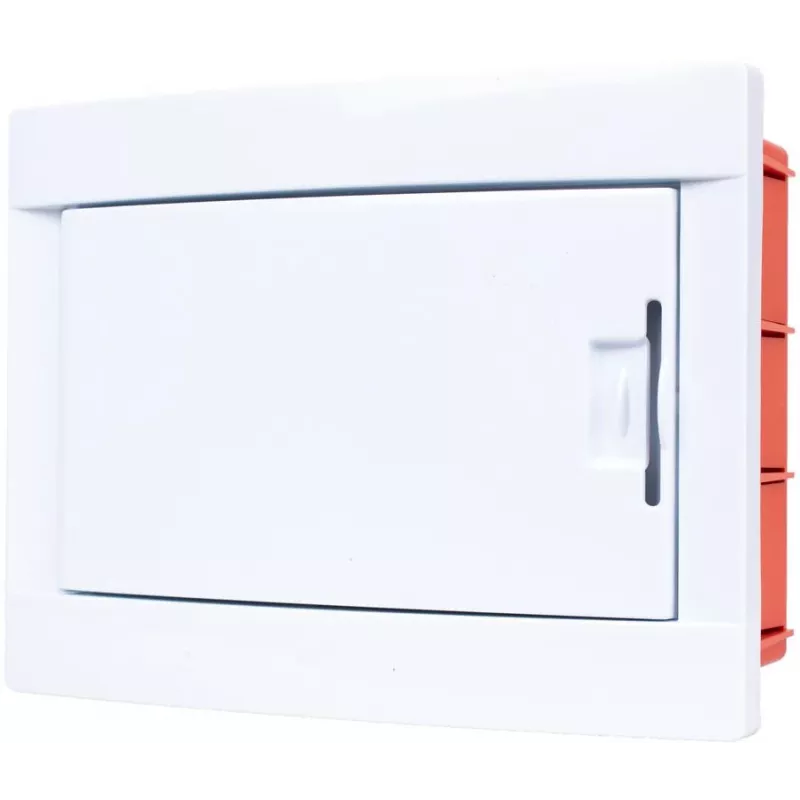

The ADELID RM-PT-08P is a high-quality flush-mounted distribution board designed for indoor electrical installations. With a capacity of 8 modules in a single row, this compact unit is ideal for residential and light commercial applications. Manufactured from durable ABS plastic with a transparent smoked door, it offers reliable protection and easy visual inspection of installed components.

Advantages

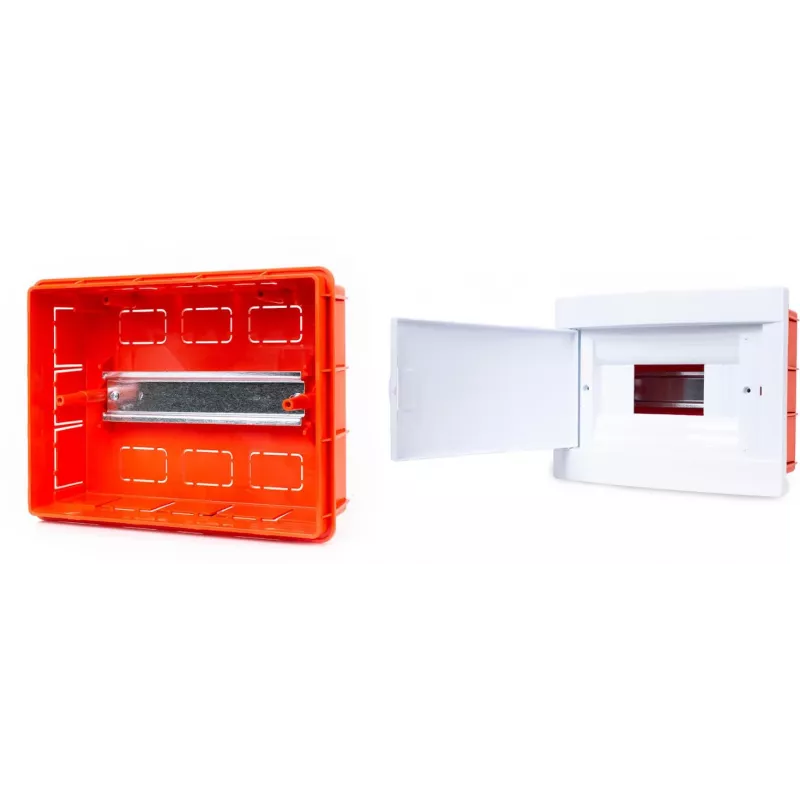

This distribution board features a reversible door with a 180° opening angle, allowing flexible installation and easy access. The included DIN rail and terminal blocks (neutral and earth) simplify wiring. The IP40 rating provides protection against solid objects larger than 1mm, while the Class II insulation ensures safety without the need for an earth connection. The glow wire test at 650°C confirms high fire resistance.

Suitable for

• Residential electrical distribution
• Small commercial installations
• Lighting and power circuits
• DIY and professional electrical projects

Key specifications

• Mounting Type: Flush-mounted (recessed)
• Module Capacity: 8 modules
• Number of Rows: 1
• Enclosure Material: ABS Plastic
• Door Type: Transparent (smoked)
• IP Protection Rating: IP40
• Insulation Class: Class II (double insulated)

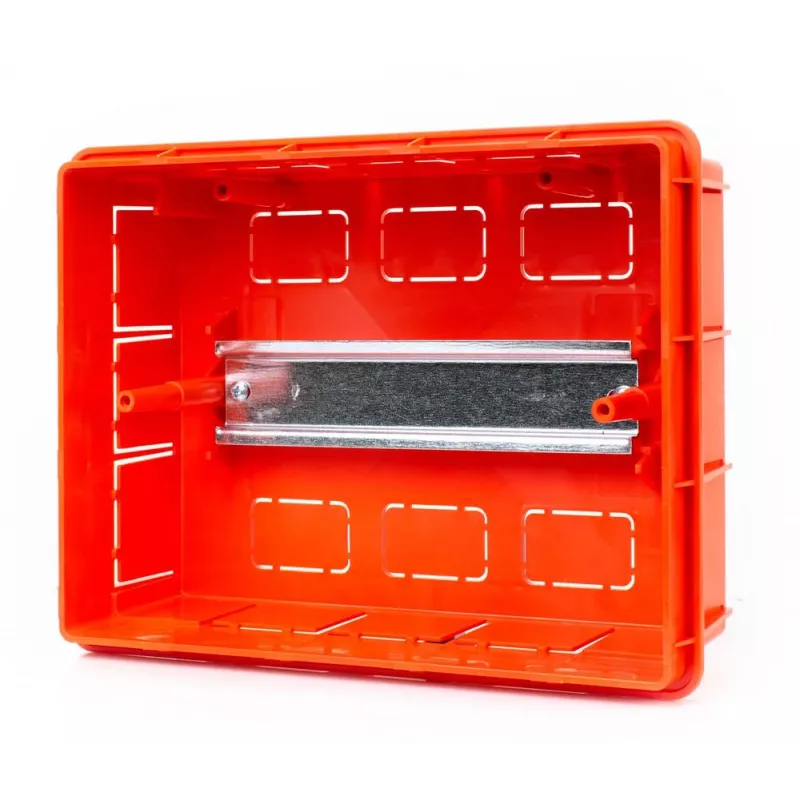

• DIN Rail: Included (1x 35mm)

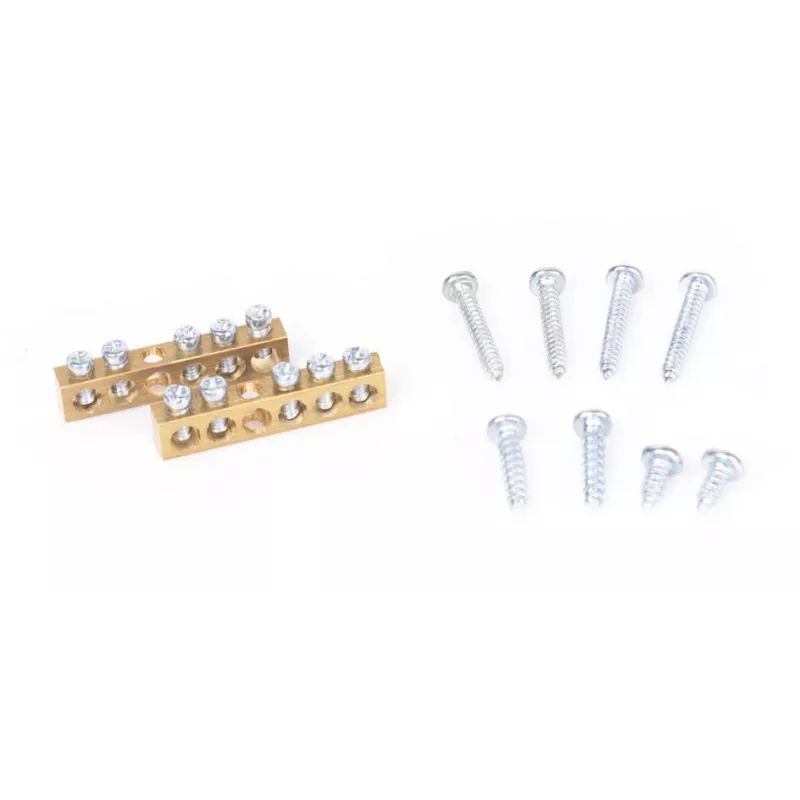

• Terminal Blocks: Included (1x Neutral, 1x Earth)
• Color: White (RAL 9003)
• Application Environment: Indoor
• Standards Compliance: EN 61439-3
• Glow Wire Test Temperature: 650°C
• Rated Insulation Voltage (Ui): 500V AC
• Rated Impulse Withstand Voltage (Uimp): 4kV
• Door Opening Angle: 180°
• Door Reversibility: Yes
• Cable Entry: Pre-punched knockouts

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. The board is designed for indoor use only. Always comply with local electrical regulations.
