ADELID RM-PT-18P Χωνευτός Πίνακας Διανομής 18 Modules 2x9 Διάφανη Πόρτα Καπνού

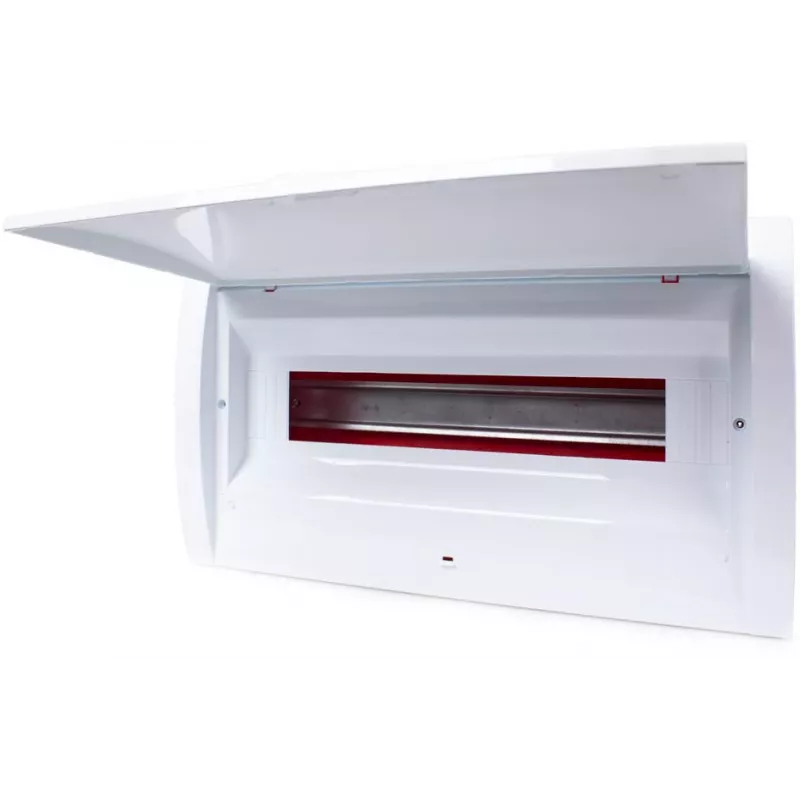

The ADELID RM-PT-18P is a high-quality flush-mounted distribution board designed for residential and commercial electrical installations. With 18 module positions arranged in 2 rows of 9, it provides ample space for circuit breakers, RCDs, and other DIN rail mounted devices. The transparent smoked door allows easy inspection while maintaining a sleek appearance.

Advantages

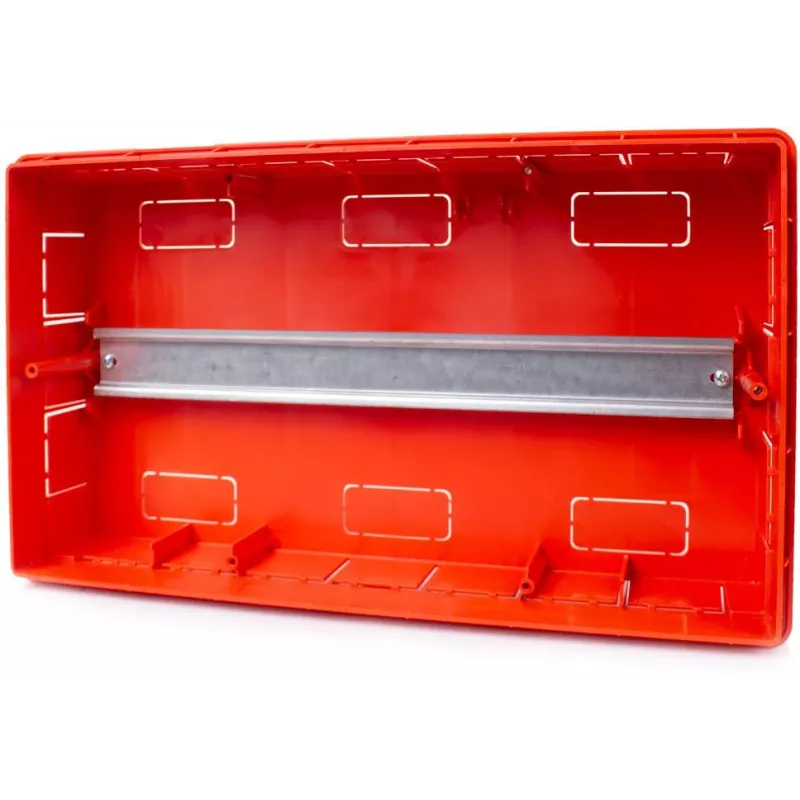

Made from durable ABS plastic with IP40 protection and IK07 impact resistance, this enclosure ensures long-lasting performance. The included DIN rail and N+PE terminal blocks simplify installation. Class II insulation and compliance with PN-EN standards guarantee safety and reliability.

Suitable for

• Flush-mounted electrical distribution in residential buildings
• Commercial installations requiring up to 18 modules
• Applications needing transparent door for visual status checks

Key specifications

• Mounting Type: Flush-mounted (recessed)
• Number of Modules: 18 (2 x 9 rows)
• Door: Transparent, smoked
• Material: ABS plastic
• Protection: IP40, IK07
• Rated Voltage: 400V AC
• Rated Current: 63A
• Insulation Class: Class II
• Colour: White frame/door, grey base
• External Dimensions (HxWxD): 380 x 250 x 100 mm
• Cutout Dimensions (HxWxD): 350 x 220 x 80 mm
• Standards: PN-EN 60439-1, PN-EN 60670-24, PN-EN 62208

Recommendations

For optimal performance, ensure cutout dimensions are accurate and use appropriate cable glands for cable entry. This distribution board is suitable for indoor use only.
