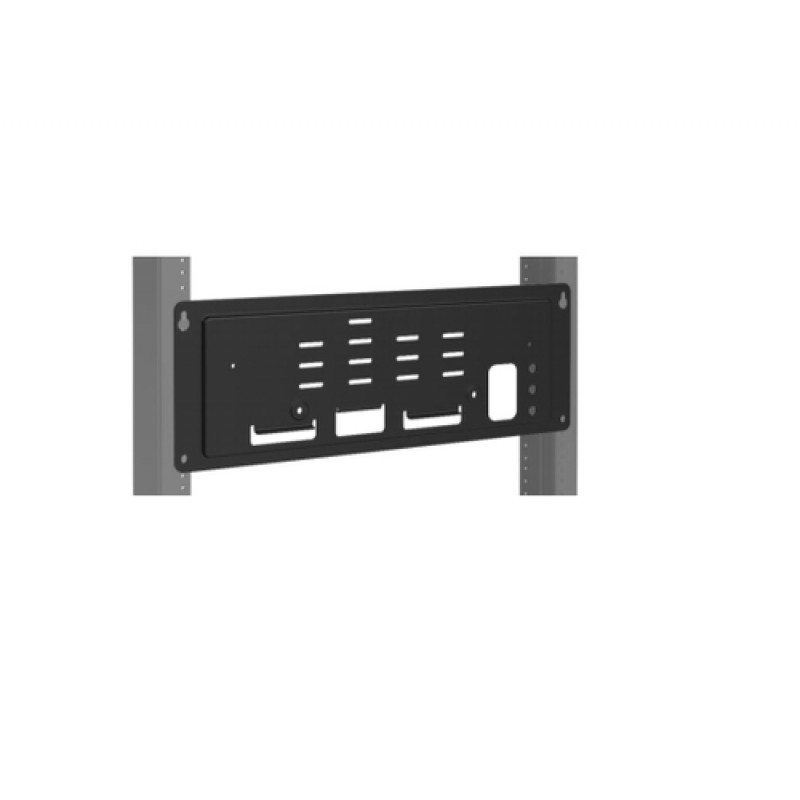

Zebra Ράφι - Πλάκα στήριξης - 48,3 cm (19 ίντσες)

For installations where a standard shelf is overkill, this Zebra mounting plate delivers a streamlined, front-mount solution for 19-inch racks. Its 1U low-profile design saves valuable rack space while providing a sturdy platform for lightweight equipment. Unlike generic brackets, the plate is formed from 1.5 mm SPCC cold rolled steel with a powder-coated black finish, ensuring durability and a clean appearance in any server room or network cabinet.

Highlights

• Universal compatibility with EIA-310-D standard 19-inch racks and open frames
• 1U height – ideal for space-constrained installations
• Solid, non-vented construction for stable mounting
• Includes 4x M6 cage nuts and screws for immediate installation
• Supports up to 5 kg (11 lbs) of equipment

In daily use

Installing the plate is straightforward: align it with the front rails of your rack, secure it using the included cage nuts and screws, and mount your device on top. The powder-coated surface resists scratches and corrosion, maintaining a professional look even in high-traffic environments. Because it is non-vented, it is best suited for equipment that does not require airflow from below.

Full specifications

• Product type: Equipment mounting plate
• Rack size compatibility: 19-inch
• Rack unit height: 1U
• Material: SPCC cold rolled steel
• Thickness: 1.5 mm
• Finish: Powder coated
• Color: Black
• Mounting type: Front mount
• Mounting standard: EIA-310-D
• Included hardware: 4x M6 cage nuts and screws
• Ventilation: Solid (non-vented)
• Max load capacity: 5 kg (11 lbs)
• Application: Server racks, network cabinets, data centers
• Installation: Screw-in

Final note

A reliable, no-frills mounting plate that gets the job done – perfect for lightweight devices in professional rack environments.
