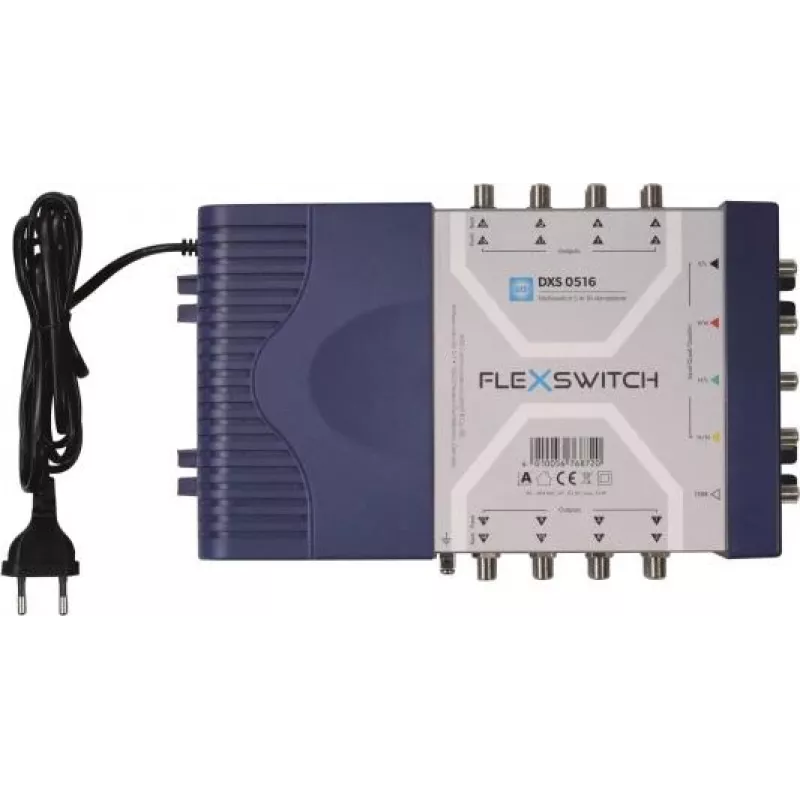

WISI DXS0516 FLEXSWITCH πολυδιακόπτης 5 εισόδων 16 εξόδων SAT/Terr

Distributing satellite and terrestrial signals to multiple receivers in a building often requires complex, bulky equipment. The WISI DXS0516 FLEXSWITCH Multiswitch solves this by combining four satellite polarities and one terrestrial input into a single compact unit, feeding up to 16 subscriber lines. Ideal for multi-dwelling units, hotels, and larger homes, it ensures every connected receiver gets a clean, reliable signal without interference.

Who is it for

This multiswitch is perfect for installers and system integrators working on residential or commercial projects where multiple satellite receivers need access to both satellite and terrestrial broadcasts. It suits buildings with up to 16 wall outlets, such as apartment blocks, small hotels, or office complexes. Its passive terrestrial path and DiSEqC compatibility make it versatile for both legacy and modern receivers.

Main features

• 5 inputs: 4 satellite (950–2150 MHz) + 1 terrestrial (5–862 MHz)
• 16 subscriber outputs with F-type connectors
• Supports DiSEqC 2.0 (backward compatible with 1.0 and 1.1)
• Integrated switching power supply (230 V AC, 50/60 Hz)
• Passive terrestrial path for reliable TV/FM distribution
• High isolation (>30 dB) between satellite and terrestrial signals
• Compact design for easy installation in cabinets or on walls

Specifications

• SAT frequency range: 950–2150 MHz
• Terrestrial frequency range: 5–862 MHz
• SAT subscriber gain: -2 to +2 dB
• Terrestrial subscriber gain: -20 to -16 dB
• Max SAT output level (IMD3 -35 dB): 90 dBµV
• Max terrestrial output level (IMD3 -60 dB): 80 dBµV
• SAT-SAT isolation: >30 dB
• SAT-terrestrial isolation: >30 dB
• LNB power supply: 18 V, max 500 mA
• Power consumption: 15 W max
• Operating temperature: -20 to +50 °C
• Connector type: F-type (all inputs/outputs)

Tips

For best performance, ensure the LNB is compatible with DiSEqC switching and that the terrestrial antenna signal is properly amplified if needed, as the terrestrial path is passive. Use high-quality coaxial cable (RG6 or better) to minimise signal loss over long runs. Mount the multiswitch in a well-ventilated area to prevent overheating.
