Video Splitter ROLINE 14.01.3586

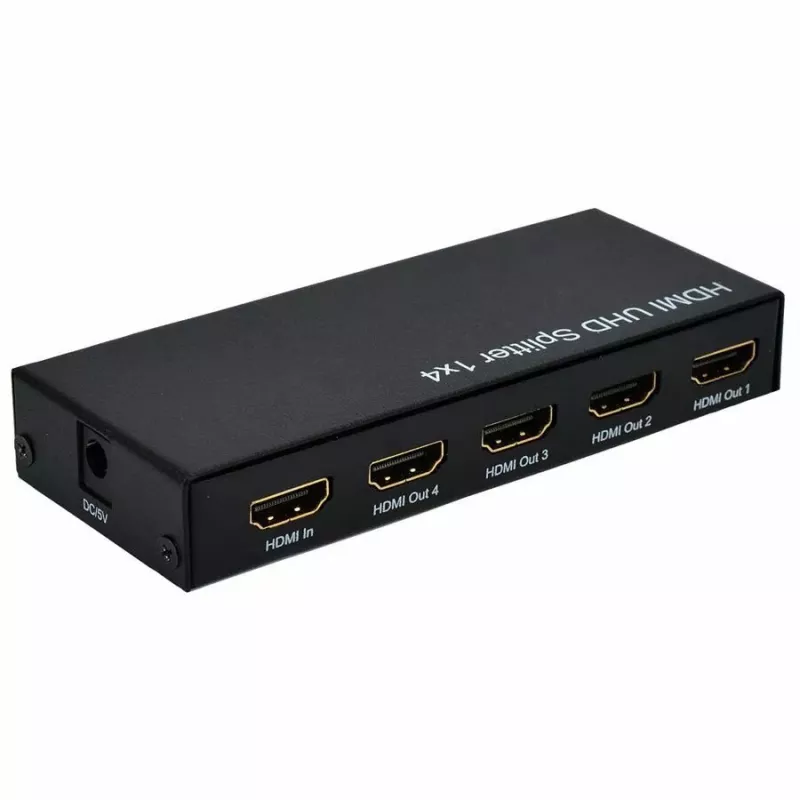

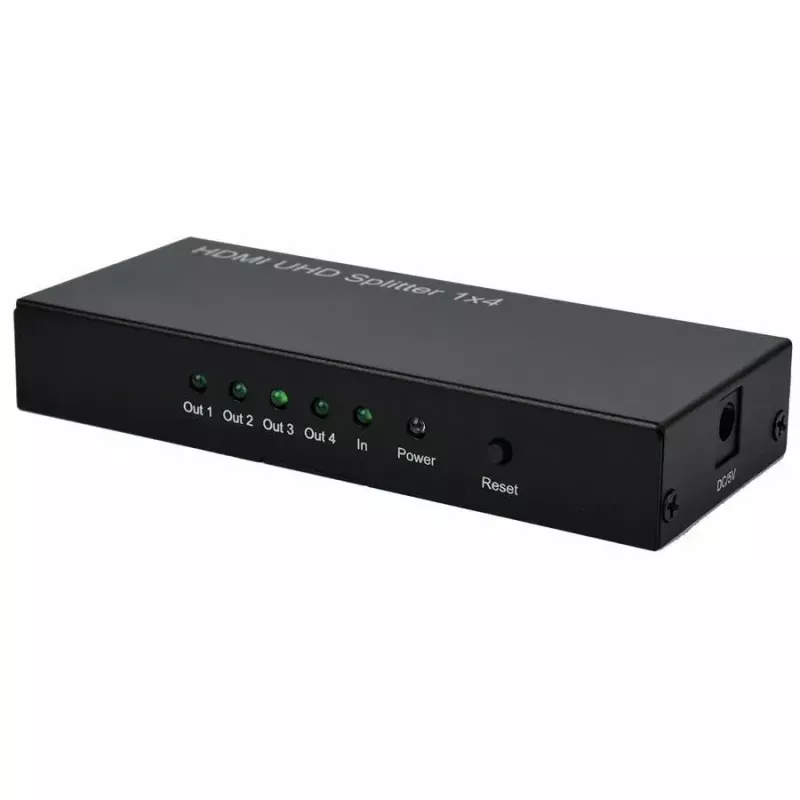

The ROLINE 14.01.3586 HDMI splitter duplicates a single HDMI input to four HDMI outputs, delivering video signals at resolutions up to 3840 x 2160. Compact and finished in black, the unit accepts one HDMI source and provides four HDMI outputs for simultaneous display on multiple screens. It is powered externally (5V DC, 2A) and has a small footprint (123 x 51 x 20 mm), suitable for home theatre, office or presentation setups.

Advantages

The splitter supports standard and high-definition formats including 480i, 480p, 720i, 720p, 1080i, 1080p and 2160p, and is compatible with common computer resolutions such as VGA, SVGA, XGA and UXGA. It also supports 3D video formats. No software installation is required: the device is plug & play and simple to install and operate. A power adapter (5V DC, 2A) is included.

Suitable for

• Home theatre systems to send one source to multiple displays
• Business presentations and meeting rooms
• Retail displays and digital signage
• Gaming setups where the same output is needed on several screens

Key specifications

• Manufacturer: ROLINE, model 14.01.3586
• Video port type: HDMI
• Inputs / outputs: 1 HDMI input, 4 HDMI outputs
• Maximum resolution: 3840 x 2160 pixels (4K)
• Supported resolutions: 480i/480p/720i/720p/1080i/1080p/2160p
• Supported computer resolutions: VGA, SVGA, XGA, UXGA
• 3D support: Yes
• Power supply: 5V DC, 2A (included)
• Colour: Black
• Dimensions (W x D x H): 123 x 51 x 20 mm

How to use

Connect the HDMI source (for example Blu-ray player, PC or game console) to the splitter's HDMI input. Connect up to four HDMI displays to the splitter's HDMI outputs. Attach the supplied 5V DC power adapter and plug it into a power outlet. Power on the source and the displays; the splitter will duplicate the input signal to all connected outputs automatically. No driver or software installation is required.

Recommendations

For optimal performance use high-quality HDMI cables and ensure all connected displays support the selected resolution. If using 4K/60Hz content, verify both source and displays support the desired frame rate; the device supports up to 3840 x 2160. Keep firmware and source device settings appropriate for the chosen output resolution.
