HDMI Switch ROLINE 14.01.3573 60Hz Μαύρο Πλαστικό 5 τεμ.

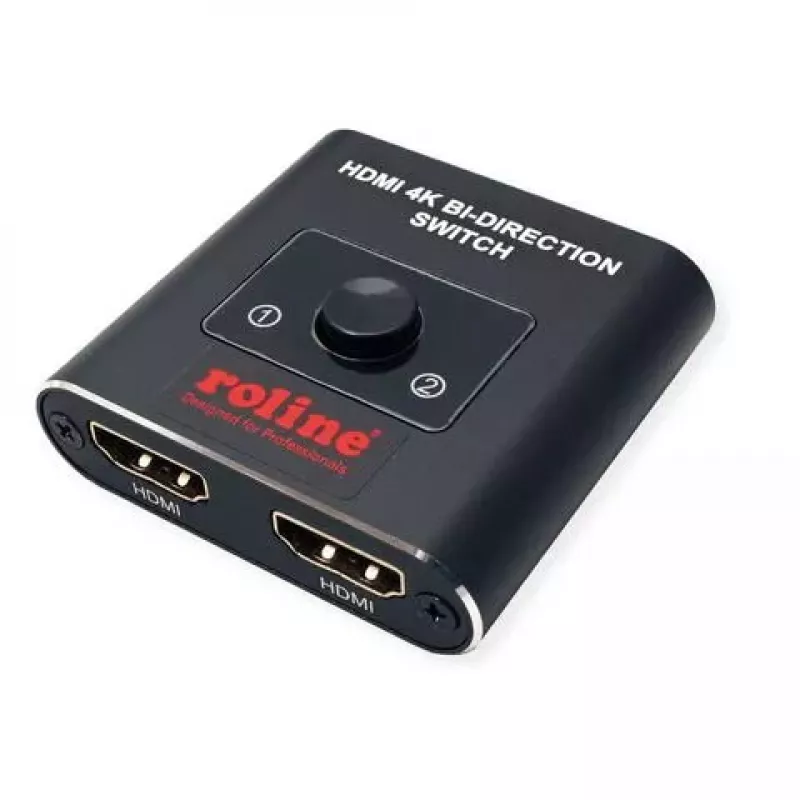

The ROLINE 14.01.3573 is a manual bidirectional HDMI switch in black plastic that enables simple switching between HDMI sources and displays at up to 60 Hz. Compact and lightweight, the unit supports two operating modes selected by a push button: either two HDMI inputs to one HDMI output (2→1) or one HDMI input to two HDMI outputs (1→2). A simultaneous output to multiple screens is not supported.

Advantages

The device provides a straightforward, manual way to route HDMI signals without software or network configuration. Its compact plastic housing and low weight make it easy to place near TVs, monitors, or projectors. The push-button operation makes mode selection quick and intuitive, and the unit supports standard HDMI connections for broad device compatibility.

Suitable for

• Connecting up to two HDMI source devices (DVD, Blu-ray, set-top box) to a single display
• Routing one HDMI source to two different displays (when not required simultaneously)
• Small meeting rooms, home entertainment setups, or classrooms where manual switching is acceptable

Key specifications

• Brand: ROLINE
• Model / MPN: 14.01.3573
• EAN: 7630049621985
• Function: Manual bidirectional HDMI switch (2→1 or 1→2)
• Maximum refresh rate: 60 Hz
• Connectors (mode 2→1): 2 × HDMI input, 1 × HDMI output
• Connectors (mode 1→2): 1 × HDMI input, 2 × HDMI output
• Housing: Black plastic
• Dimensions (W×D×H): 62 × 82 × 17 mm
• Weight: 0.0466 kg
• Package: 5 pieces

How to use

Connect HDMI cables from source devices (DVD, Blu-ray player, media box) to the HDMI input ports or to the single input port depending on the chosen mode, and connect the HDMI output port(s) to the display(s). Press the manual select push button to switch between the two operating modes or to toggle between input devices when using the 2→1 configuration. Ensure cables are fully inserted and the connected displays and sources are powered on. The device requires no external power supply.

Recommendations

Use the 2→1 mode when you need to switch between two sources on a single screen. Use the 1→2 mode only when you want to send the same signal to two displays one at a time, noting that simultaneous independent outputs are not supported. Keep HDMI cables short to reduce signal loss and place the switch close to the display or sources for reliable connections.
