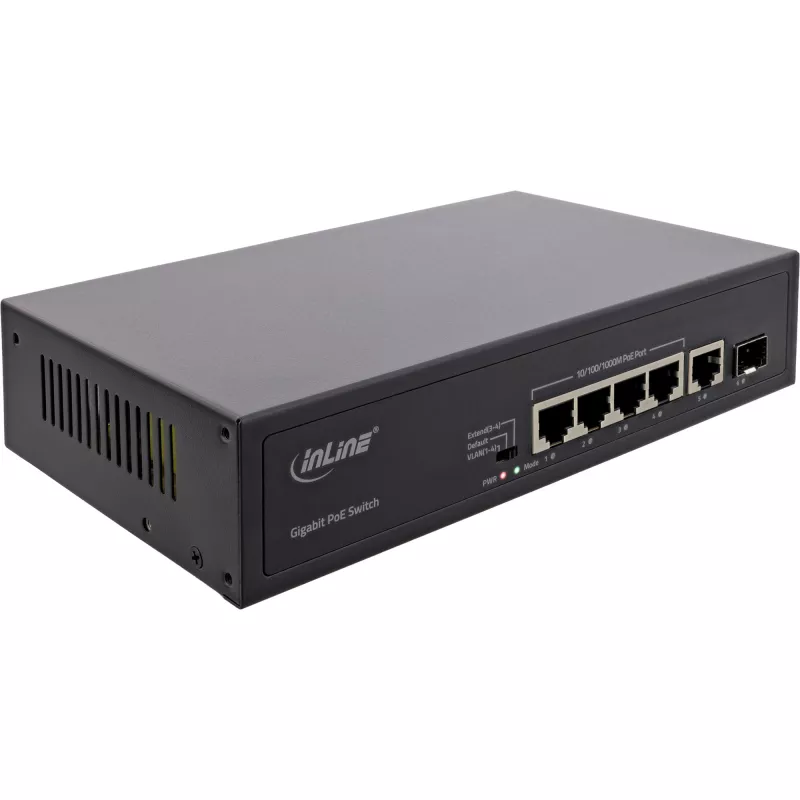

Unmanaged Switch InLine PoE+ Gigabit Network Switch 5 Port 4x PoE+ 1xSFP 1Gb/s desktop

The InLine® Gigabit Network Switch 5 Port (4x PoE+), 1xSFP, offers a fast network connection as well as PoE+ support on 4 of the 5 ports. The SFP port supports SFP modules with a bandwidth of 1.25 Gb/s. The 5x 10/100/1000Mb/s auto-negotiation RJ45 ports all support Auto MDI/MDIX.

The switch is an easy-to-use and powerful solution to upgrade your old network to a Gigabit network and to power PoE-enabled devices such as IP cameras, IP phones, access points, etc. via the connected patch cable.

Standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x Flow control, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
Ports: 4x 10/100/1000Base-T RJ45, Auto-MDI/MDI-X, PoE+ support 1x 10/100/1000Base-T RJ45, Auto-MDI/MDI-X 1x 1000Base-X SFP port

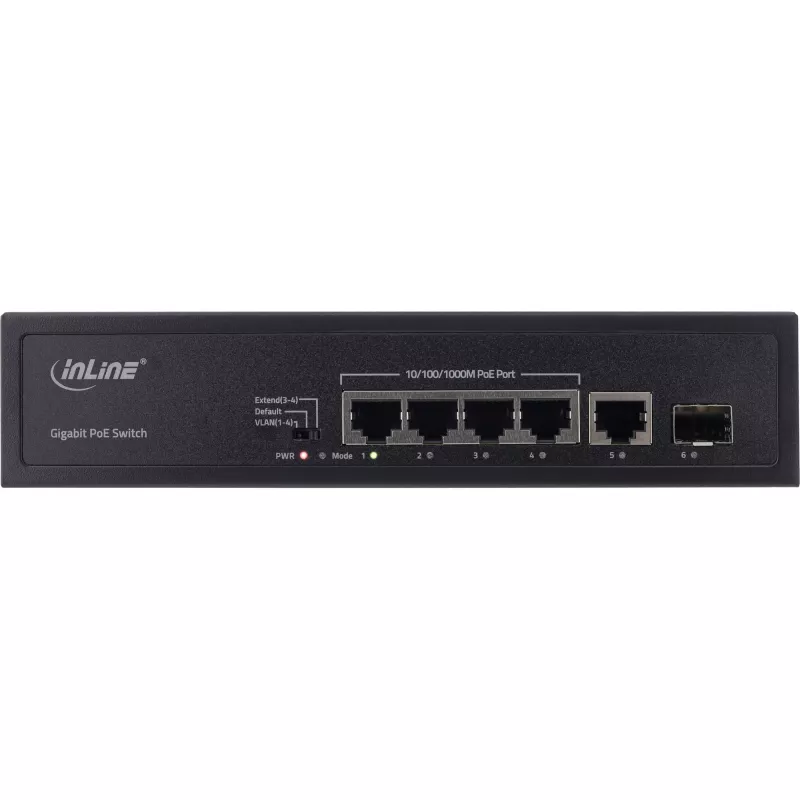

Three modes: Normal operation, VLAN port isolation (ports 1-4), range extension up to 250 metres via patch cable at 10 Mb/s (ports 3 and 4)
PoE Type of power supply: Endspan
PoE output voltage: Per port 52V DC
PoE output power: Per port max. 30 watts
Total power: 65 watts
LED indicators: Power, mode, port (1-6)
Dimensions (W x D x H): 20.2 x 12 x 4.5 cm
Weight: approx. 616 g

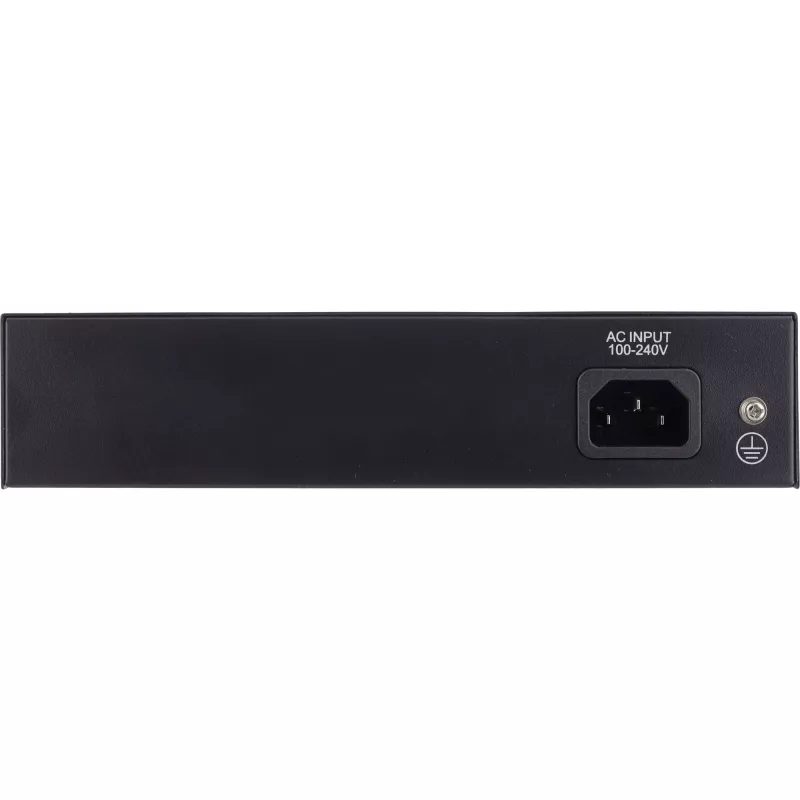

Power consumption: 100-240V AC, 50/60 Hz
Ambient conditions: Operating temperature 0-40°C, storage temperature -20-70°C, humidity 20-95% non-condensing

Content of delivery:

1x InLine® PoE+ Gigabit Network switch
1x manual (German/English)
1x power cable
4x rubber feet

InLine PoE+ Gigabit Network Switch 5 Port (4x PoE+), 1xSFP, 1Gb/s, desktop. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power over Ethernet (PoE)

How to use

Place the switch on a flat surface and connect the included power cable to a mains outlet. Connect network devices to the RJ45 ports using Cat5e or higher patch cables; PoE devices will receive power automatically on the four PoE+ ports. Use the SFP slot for fiber uplink by inserting a compatible 1.25 Gb/s SFP module. Select the desired operating mode (normal, VLAN isolation, or range extension) using the mode switch or button as indicated in the user manual.

Recommendations

For reliable PoE operation, ensure the combined power draw of all connected devices does not exceed the 65 W total budget. Use quality Ethernet cables (Cat5e or better) and compatible SFP modules. Install the switch in a ventilated area within the specified operating temperature range.
