Θήκη επιτοίχιας τοποθέτησης 2-Port Keystone Jack Equip 125122

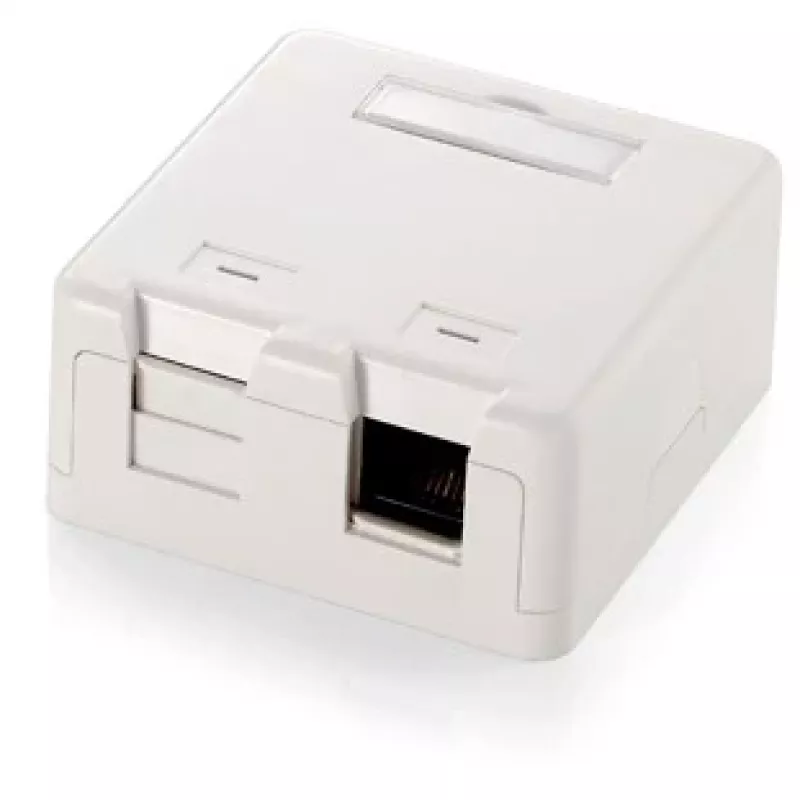

The Equip 2-Port Keystone Jack Surface Mount Box (model 125122) is a compact white enclosure for organizing two Ethernet keystone jacks. With external dimensions of 65 mm × 63 mm × 30 mm and a lightweight design (0.039 kg), the surface mount box accepts Cat.5e, Cat.6, or Cat.6A keystone jacks and is intended for tidy network terminations in home or office environments. The package includes adhesive tape for tool-free installation.

Advantages

This surface mount box supports two keystone Ethernet jacks, enabling dual-port network connections in a single compact housing. Its small footprint and white finish make it suitable for discreet placement on walls or other flat surfaces. The included adhesive tape simplifies installation without requiring screws or tools, while compatibility with Cat.5e, Cat.6 and Cat.6A jacks ensures flexibility for different network speeds and standards.

Suitable for

• Adding one or two Ethernet wall ports where in-wall wiring is not available
• Home networking and small office installations
• Temporary network setups or locations requiring non-permanent mounting

Key specifications

• Brand: EQUIP
• Model / MPN: 125122
• EAN: 4015867130568
• Ports: 2 keystone openings (supports Cat.5e / Cat.6 / Cat.6A keystone jacks)
• Dimensions (W × H × D): 65 × 63 × 30 mm
• Package dimensions: 160 × 75 × 110 mm
• Weight: 0.039 kg
• Colour: White

How to use

Fit compatible keystone jacks (Cat.5e, Cat.6 or Cat.6A) into the two openings of the surface mount box until they click into place. Clean and dry the mounting surface, remove the backing from the supplied adhesive tape and press the box firmly onto the surface for secure adhesion. Route and terminate network cables to the keystone jacks following standard wiring schemes (T568A or T568B). For greater permanence, optionally use screws through the box (if desired) but note that screws are not included.

Recommendations

For best results, verify jack compatibility before installation and test network connections after termination. Use the adhesive mounting only on clean, non-porous surfaces and avoid placing the box in locations exposed to moisture or direct sunlight for prolonged periods.
