Εσωτερικό Wi-Fi Intel Wi-Fi 6E AX210

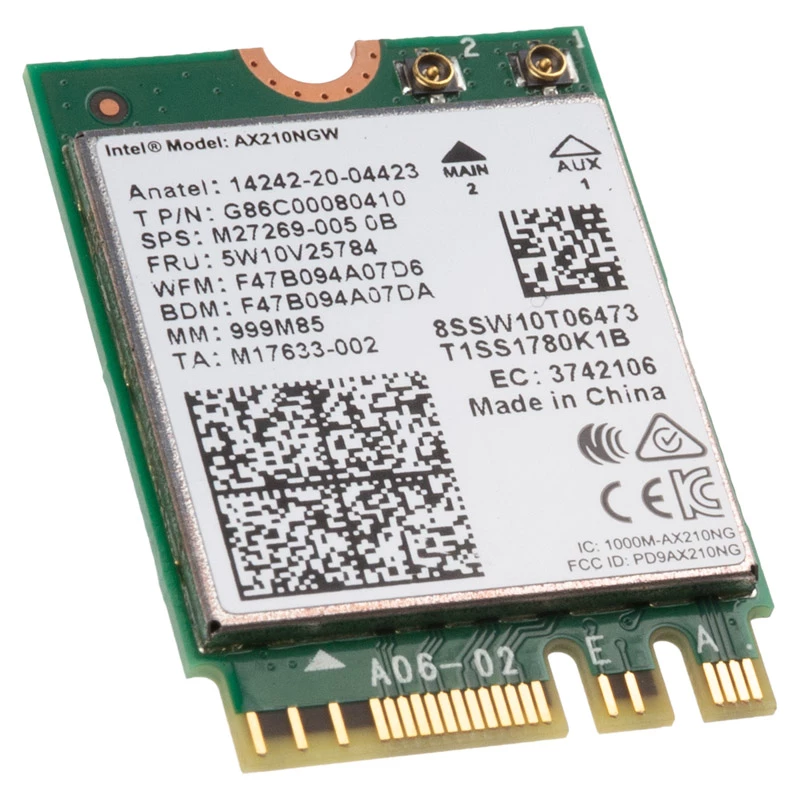

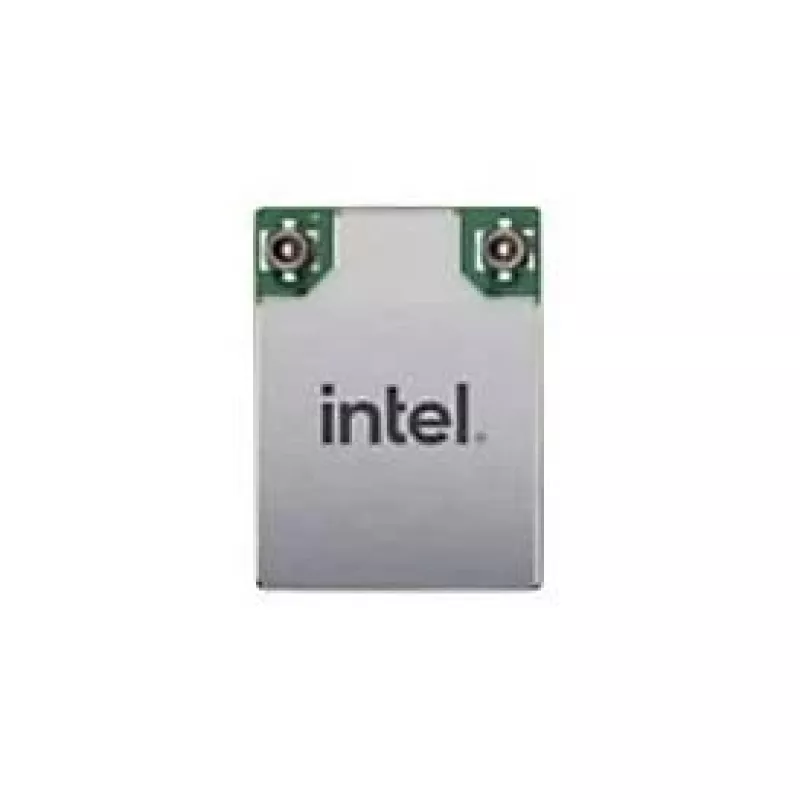

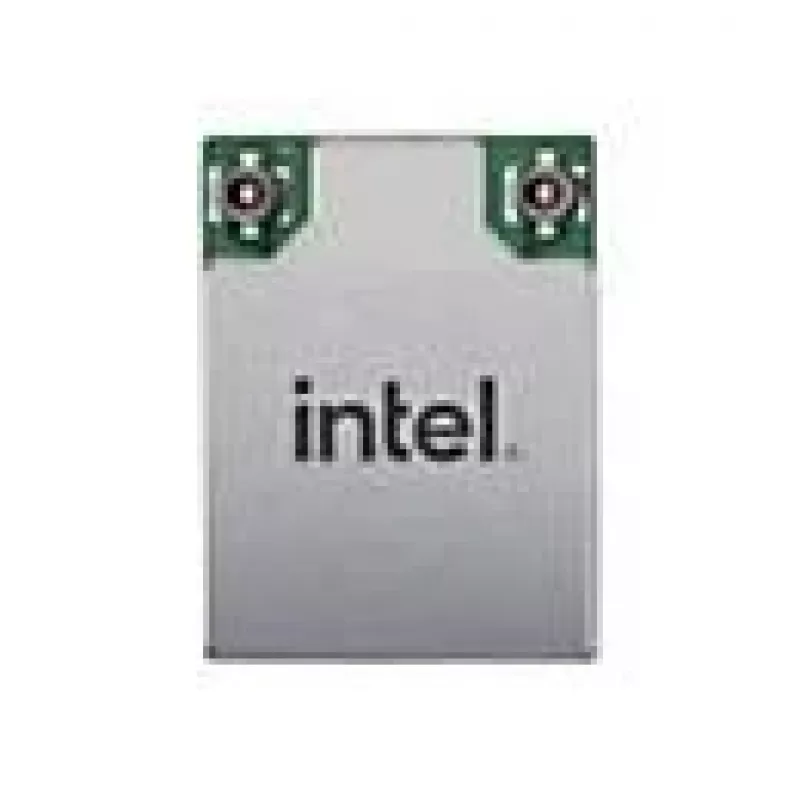

The Internal WLAN Intel Wi‑Fi 6E AX210 is an M.2 wireless network card by INTEL (MPN AX210.NGWG.NV) designed for internal installation in compatible laptops and motherboards. It supports the Wi‑Fi 6E standard with a maximum data transfer rate of 2400 Mbit/s, uses a 2x2 antenna configuration and connects via PCI Express. The card adds advanced wireless capabilities for higher throughput and improved performance in dense network environments.

Advantages

The Intel Wi‑Fi 6E AX210 provides support for the 6 GHz band where available, improved spectral efficiency with OFDMA for simultaneous multi‑user transmission, and hardware security features such as Intel® Trusted Execution Technology. With a 2x2 antenna setup and PCI Express host interface it delivers stable high‑speed wireless connectivity suitable for bandwidth‑intensive tasks while keeping a compact internal form factor.

Suitable for

• Gaming on laptops and compact desktops
• High‑definition streaming and video conferencing
• Large file transfers and cloud backups
• Use in crowded Wi‑Fi environments and shared networks

Key specifications

• Brand: INTEL
• Model / MPN: AX210.NGWG.NV
• Interface: WLAN (M.2 form factor, PCI Express host interface)
• Wireless standard: Wi‑Fi 6E (includes support for new 6 GHz band where available)
• Maximum data transfer rate: 2400 Mbit/s
• Antenna configuration: 2x2
• Connectivity technology: Wireless
• Weight: 0.0028 kg
• EAN: 675901877022

How to use

Install the Intel Wi‑Fi 6E AX210 into a compatible M.2 slot on a laptop or motherboard that supports CNVi or M.2 WLAN modules and has PCI Express lanes available. Secure the module with the mounting screw and attach the device antennas or connect the internal antenna cables according to the host device's layout. After physical installation, install the appropriate drivers from Intel or the system vendor and verify wireless settings in the operating system to enable Wi‑Fi 6E features.

Recommendations

For optimal performance, use the module in systems with driver and firmware updates applied, enable 6 GHz band only where regulatory domain and router/access point support it, and position antennas to reduce physical obstructions. Ensure your system BIOS and operating system support the AX210 module and that the device has proper thermal clearance.
