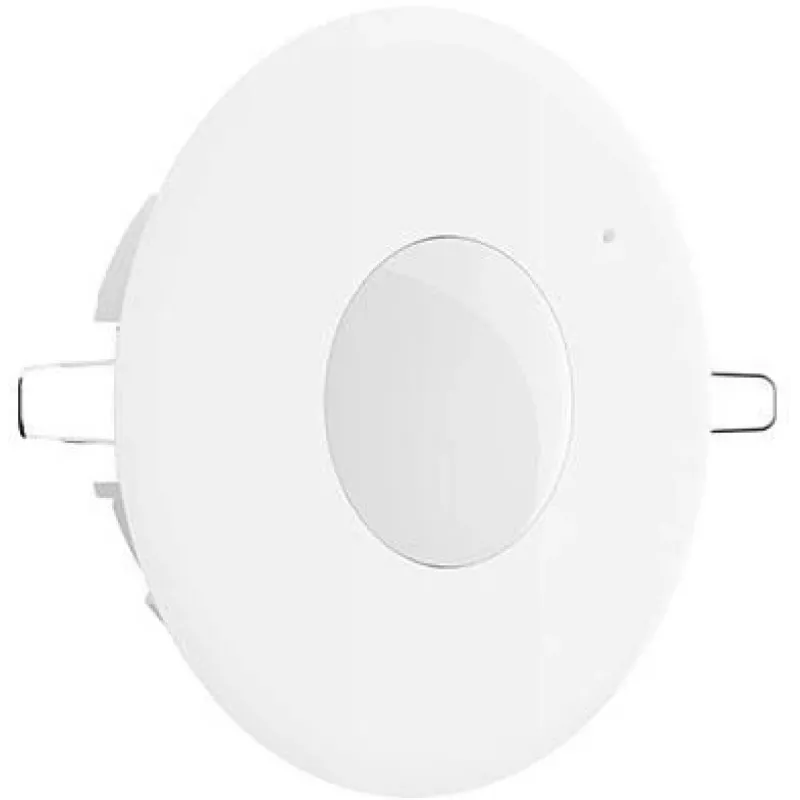

SATEL SLIM-R-PIR-PRO ανιχνευτής κίνησης PIR οροφής

The SATEL SLIM-R-PIR-PRO is a professional ceiling-mounted passive infrared (PIR) motion detector designed for indoor security applications. Featuring a 360° detection angle and a maximum detection diameter of 12 meters, it provides comprehensive coverage for residential and commercial premises. The detector incorporates digital signal processing and temperature compensation to minimize false alarms, while sensitivity adjustment via DIP switches allows fine-tuning to specific environments.

Advantages

Reliable detection with advanced false alarm immunity; easy ceiling installation; adjustable sensitivity; remote LED control; compact and discreet design.

Suitable for

• Indoor security systems in homes and offices
• Ceiling-mounted motion detection in rooms up to 12 m diameter
• Integration with SATEL alarm control panels

Key specifications

• Detection method: Passive Infrared (PIR)
• Mounting type: Ceiling
• Detection angle: 360°
• Recommended mounting height: 2.4 m to 3.7 m
• Max detection diameter: 12 m (at 3.7 m height)
• Power supply: 12 V DC (±15%)
• Standby current: 10 mA
• Max current: 12 mA
• Alarm output: NC relay, 40 mA / 24 V DC
• Tamper output: NC relay, 40 mA / 24 V DC
• Operating temperature: -10°C to +55°C
• Environmental class: II (EN 50130-5)
• Security grade: Grade 2 (EN 50131-2-2)
• Digital signal processing: Yes
• Temperature compensation: Yes
• Sensitivity adjustment: Yes (via DIP switches)
• LED indicator: Yes (remote control option)
• Housing material: ABS plastic

Recommendations

For optimal performance, mount the detector at the recommended height of 2.4–3.7 m and avoid areas with direct sunlight, heat sources, or drafts. Use with a compatible SATEL control panel for full functionality.
