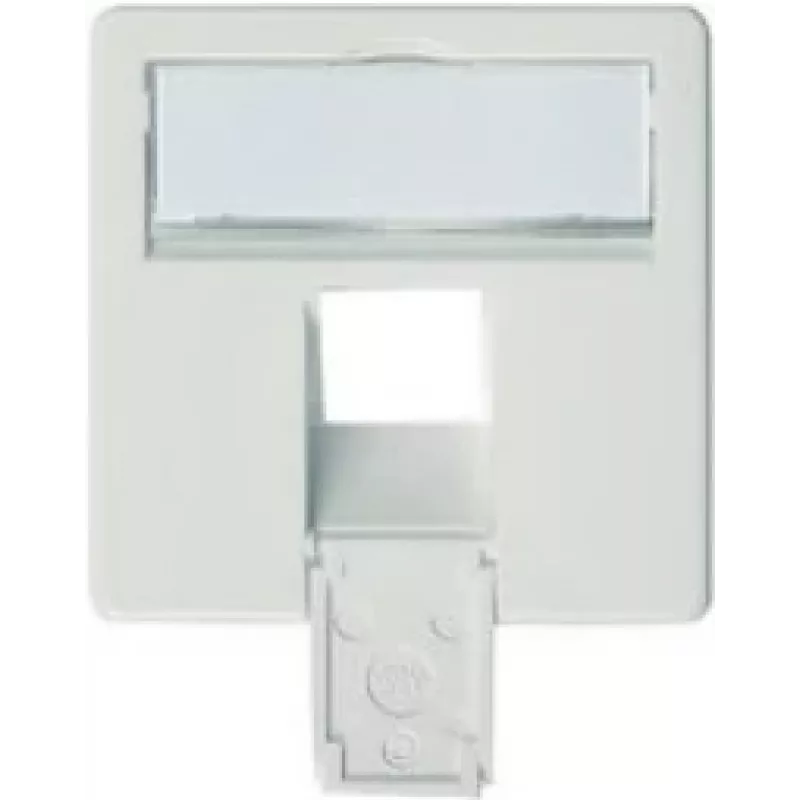

Telegärtner F00020A0123 Keystone Module Cat.6A θωρακισμένο RJ45 λευκό

The Telegärtner F00020A0123 is a high-performance shielded keystone module designed for professional network installations. It supports Category 6A (Class EA) and is fully compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards, ensuring reliable 10 Gigabit Ethernet transmission up to 500 MHz. The module features a die-cast zinc housing with nickel plating and gold-plated contacts for optimal conductivity and durability. It accepts solid conductors from AWG 24/1 to AWG 22/1 and stranded conductors from AWG 26/7 to AWG 22/7. Termination is via LSA-Plus (tool-less or with LSA tool) and supports T568A/B wiring schemes. The module is PoE, PoE+, and 4PPoE compatible (IEEE 802.3af/at/bt) and operates in temperatures from -40°C to +70°C. Color: White (RAL 9010).

Advantages

Shielded design minimizes electromagnetic interference, ensuring stable high-speed data transmission. Tool-less termination option simplifies installation and reduces labor time. Robust construction with die-cast zinc housing and gold-plated contacts guarantees long-term reliability and over 750 insertion cycles.

Suitable for

• Data centers and server rooms requiring 10GBASE-T connectivity
• Structured cabling systems in commercial buildings
• Industrial environments with high EMI
• PoE applications including security cameras, access points, and IoT devices

Key specifications

• Connector Type: RJ45
• Performance Category: Cat.6A (Class EA)
• Shielding: Shielded (STP/FTP)
• Transmission Speed: Up to 10 Gigabit Ethernet (10GBASE-T)
• Frequency Range: Up to 500 MHz
• Mounting Type: Keystone (AMJ-Kompakt)
• Termination Type: LSA-Plus (tool-less or with LSA tool)
• Housing Material: Die-cast zinc (nickel-plated)
• Contact Plating: Gold (on nickel)
• Color: White (RAL 9010)
• Number of Ports: 1
• PoE Support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Operating Temperature: -40°C to +70°C
• Insertion Cycles: > 750
• Conductor Gauge: AWG 24/1 - AWG 22/1 (solid), AWG 26/7 - AWG 22/7 (stranded)

Recommendations

For optimal performance, pair with Telegärtner patch panels and RJ45 connectors. Ensure proper grounding of shielded cabling systems. Suitable for use with Cat.6A and Cat.7 cables.
