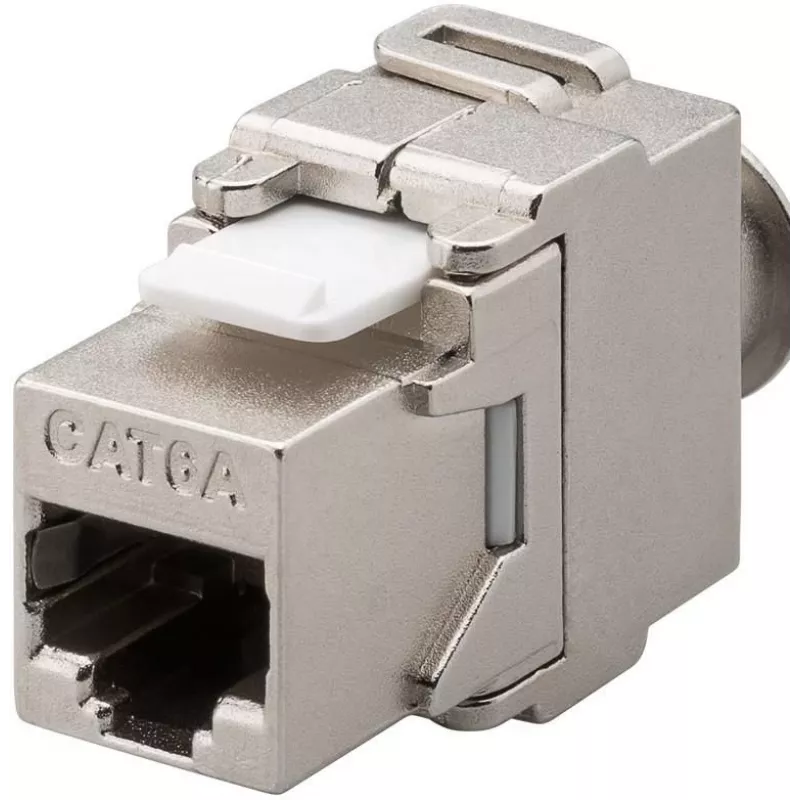

Microconnect KEYSTONE-10 Keystone-Modul

The MicroConnect KEYSTONE-10 is a grey keystone module with RJ-45 and IDC connectors designed for network cabling installations. It provides a compact, lightweight solution for terminating Ethernet cables and integrating into patch panels, wall plates or keystone-compatible housings.

Advantages

The module offers a small footprint and low weight (0.03 kg), simplifying handling and installation in confined spaces. Built with standard RJ-45 and IDC interfaces, it enables reliable electrical contact and quick terminations without the need for specialized tools. Its neutral grey colour allows discreet integration into various mounting frames.

Suitable for

• Ethernet cable terminations in patch panels
• Wall plates and keystone faceplates
• Structured cabling projects in offices and homes
• Network repairs and on-site replacements

Key specifications

• Model: MicroConnect KEYSTONE-10
• Connectors: RJ-45 and IDC
• Weight: 0.03 kg
• Colour: Grey
• Manufacturer part number (MPN): KEYSTONE-10
• EAN: 5712505470985

How to use

Insert the Keystone module into a compatible keystone opening in a wall plate, patch panel or housing until it clicks into place. Terminate the Ethernet cable using the IDC connector according to standard wiring schemes (e.g., T568A/T568B) and secure the RJ-45 connector as required by the installation. Verify continuity and signal integrity with appropriate network testing tools after installation.

Recommendations

Handle the module carefully to avoid damaging the IDC contacts. Use proper cable preparation and follow standard wiring colour codes for reliable connections. Test the link after installation to confirm correct termination.
