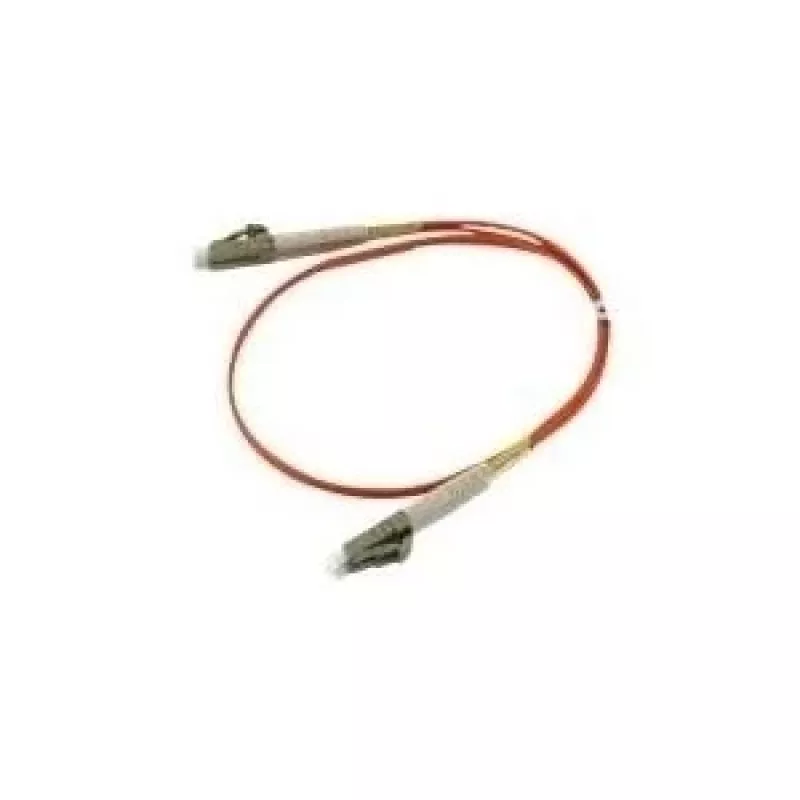

Synergy21 S216203 καλώδιο patch οπτικών ινών LC-LC duplex OM2 3m πορτοκαλί LSZH

The Synergy21 S216203 is a high-quality fiber optic patch cable designed for reliable data transmission in demanding network environments. Featuring duplex LC male connectors on both ends, this 3-meter cable supports multimode OM2 performance with a 50/125 µm core/cladding diameter. The orange LSZH (Low Smoke Zero Halogen) jacket ensures safety and easy identification, making it ideal for data centers, LAN, SAN, and telecommunications applications.

Advantages

This cable offers low insertion loss and high return loss, ensuring minimal signal degradation and reliable connectivity. The LSZH jacket reduces toxic smoke emissions in case of fire, enhancing safety in enclosed spaces. Its durable construction and compliance with RoHS and REACH standards guarantee long-term performance and environmental responsibility.

Suitable for

• Data center cabling infrastructure
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Telecommunications systems
• High-speed fiber optic connections

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Type: Multimode
• Fiber Category: OM2
• Core/Cladding Diameter: 50/125 µm
• Connector A Type: LC Male
• Connector B Type: LC Male
• Connector Configuration: Duplex
• Cable Length: 3 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Attenuation (850nm): ≤ 3.0 dB/km
• Attenuation (1300nm): ≤ 1.0 dB/km
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 30 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Minimum Bend Radius (Installation): 30 mm
• Minimum Bend Radius (Long Term): 10 mm
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean and properly mated. Avoid sharp bends exceeding the minimum bend radius. This cable is suitable for use with OM2-compatible equipment and supports data rates up to 1 Gbps over typical distances.
