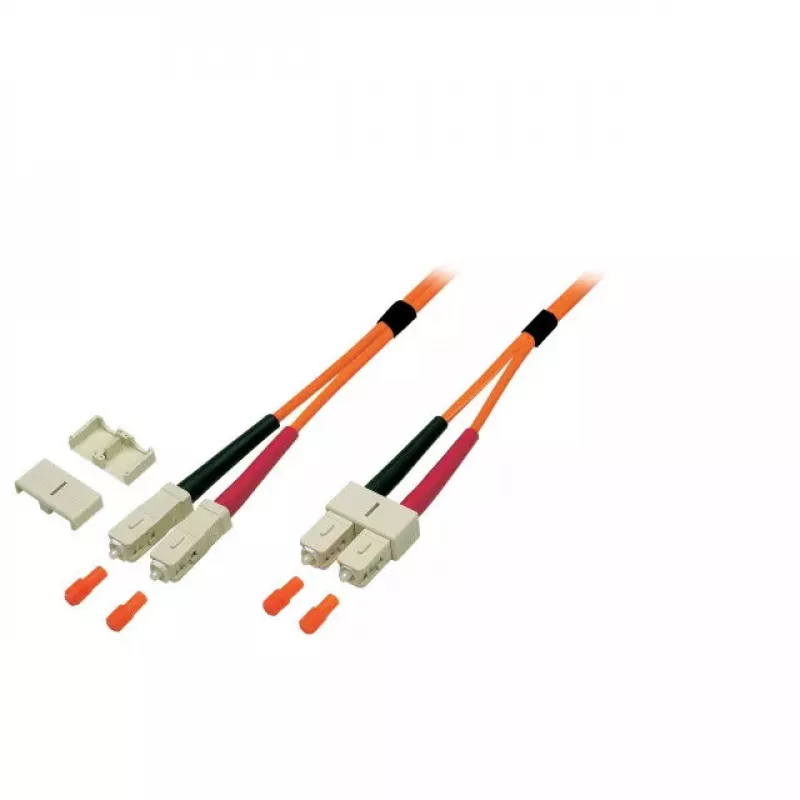

Καλώδιο οπτικών ινών EFB Elektronik O6413.5 5 m SC πορτοκαλί

The EFB Elektronik O6413.5 is a 5 m multimode fibre optic patchcord with SC connectors on both ends and an OM2 core diameter of 50 µm. It serves as a short, reliable connection between active device ports and passive interfaces in structured cabling systems compliant with ISO/IEC 11801, providing consistent performance for data centre and network links.

Advantages

The cable is reinforced with aramid yarn for improved tensile strength and long-term stability. Its LSZH (halogen-free, flame-retardant) sheath meets IEC-60754-2, IEC-60332-1 and IEC-61034 standards. Connectors are manufactured to quality grades B/2 for singlemode (where applicable) and A/1 for multimode according to IEC-61753 series drafts. Each patchcord is 100% inspected and supplied with an individual test protocol.

Suitable for (tasks / use cases)

• Short interconnects in data centres and server rooms
• Patching between switches, routers and optical equipment
• Multimode fibre links within local area networks (OM2, 50 µm)
• Environments requiring low-smoke, halogen-free cable jackets

Key specifications

• Brand: EFB Elektronik
• Manufacturer part number (MPN): O6413.5
• EAN: 4049759027230
• Type: Fibre optic patchcord, multimode OM2
• Length: 5 m
• Core diameter: 50 µm
• Connectors: SC – SC
• Sheath: LSZH (halogen-free, flame retardant)
• Reinforcement: Aramid yarn for tensile resistance
• Inspection: 100% tested with individual test report

How to use

Route the patchcord between the SC ports of the active device and the passive panel or port, avoiding sharp bends and excessive tension. Ensure connector endfaces are clean before insertion to prevent signal loss or damage; use appropriate cleaning tools if necessary. Insert SC connectors fully until the latch engages and verify link status on network equipment. For best performance, maintain bend radius recommendations for multimode fibre and secure the cable to prevent strain on connectors.

Recommendations

Store and install the cable in environments that comply with LSZH requirements and avoid exposure to harsh chemicals or extreme temperatures. For critical links, verify and keep the supplied individual test protocol as part of documentation and perform periodic inspections of connector endfaces.
