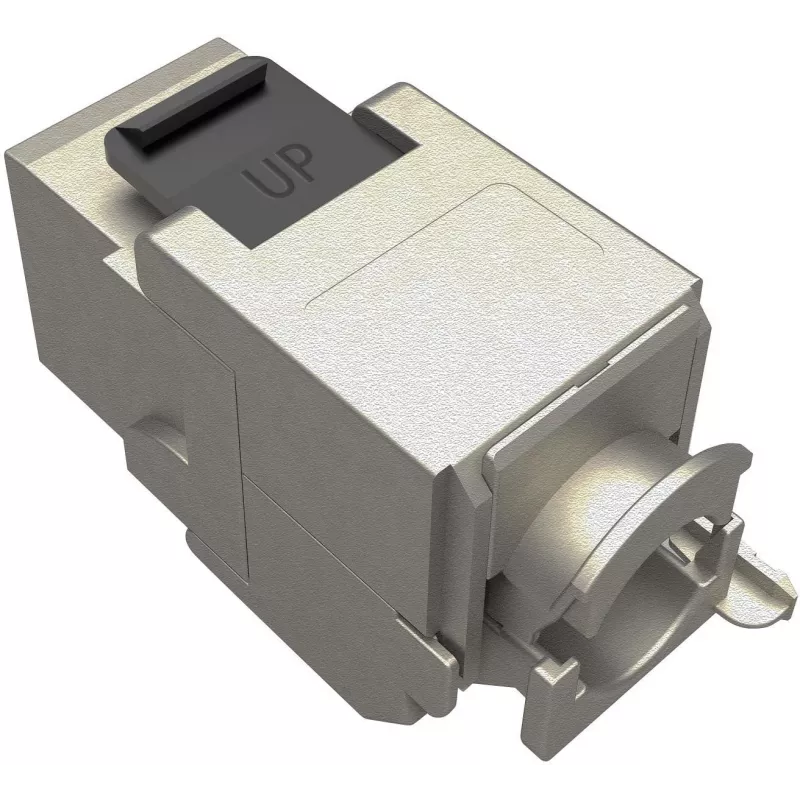

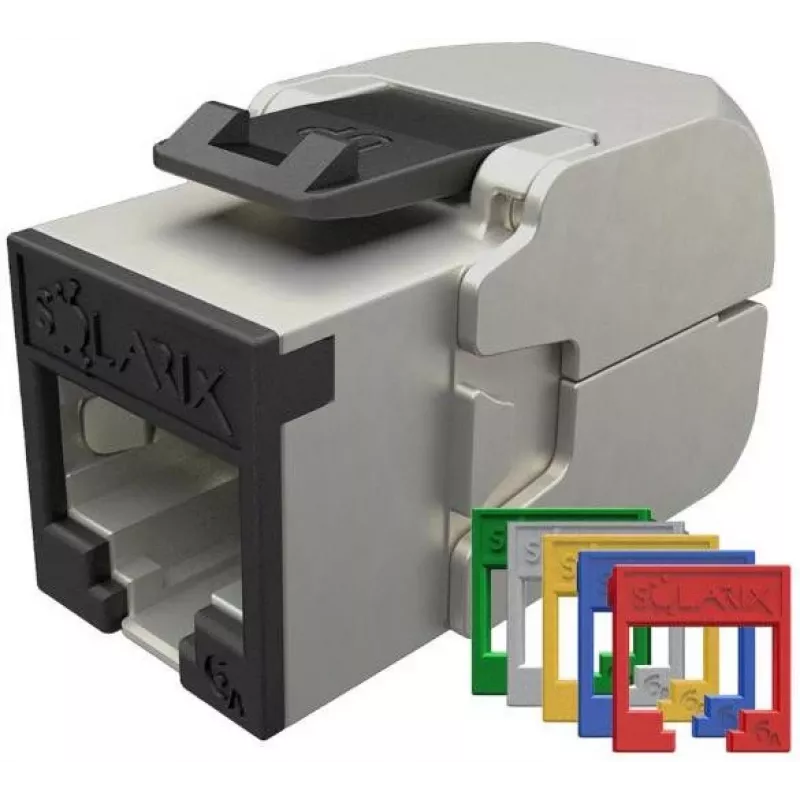

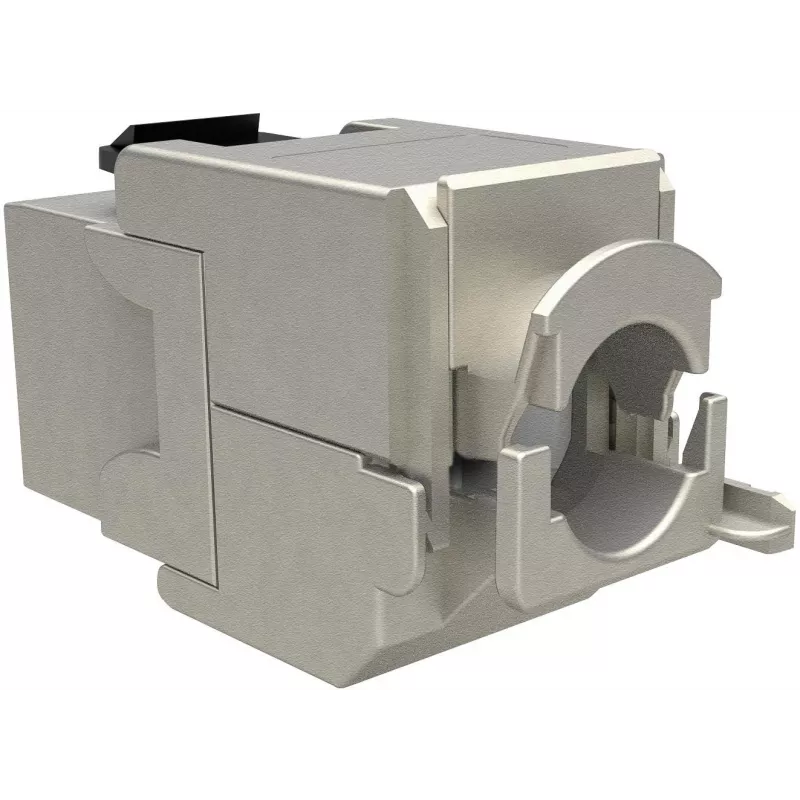

Solarix Cat.6A STP RJ45 Keystone Jack Toolless SXKJ-10G-STP-RAL-SA

The Solarix SXKJ-10G-STP-RAL-SA is a high-performance Cat.6A shielded keystone jack designed for 10 Gigabit Ethernet networks. Featuring a toolless self-clamping termination mechanism, it simplifies installation and ensures reliable connections in data centers, LAN networks, and commercial installations.

Advantages

Toolless termination reduces installation time and eliminates the need for specialized tools. The die-cast zinc alloy housing provides robust shielding against electromagnetic interference (EMI), ensuring signal integrity for high-speed data transmission. Gold-plated contacts guarantee corrosion resistance and long-term reliability.

Suitable for

• Data centers requiring high-density cabling
• Enterprise LAN networks
• Commercial structured cabling systems
• 10GBASE-T applications

Key specifications

• Category: Cat.6A (Class EA)
• Shielding: STP (Shielded Twisted Pair)
• Connector: RJ45

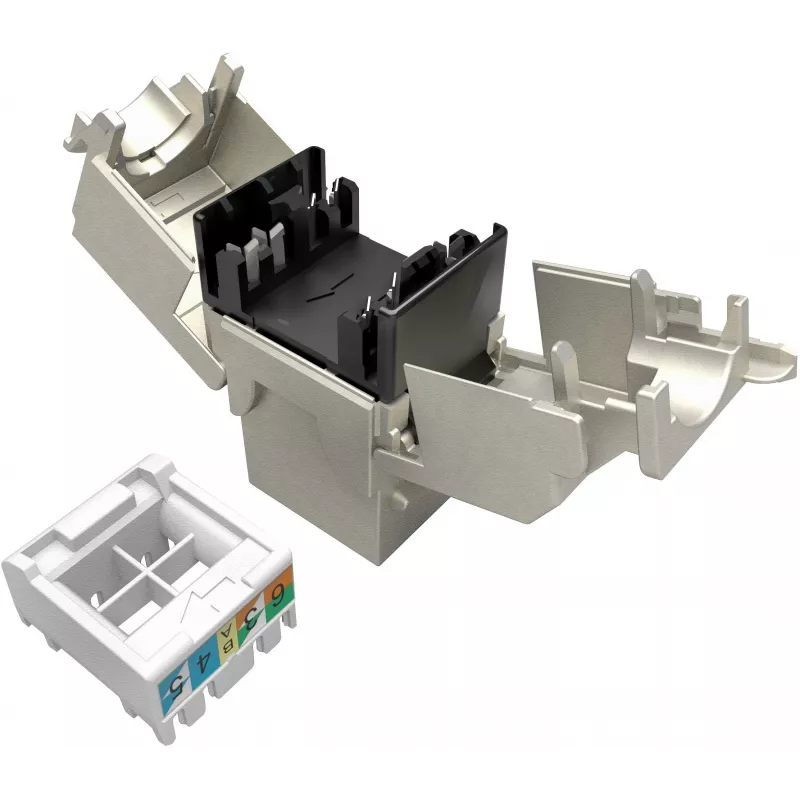

• Termination: Toolless (self-clamping)
• Max Data Rate: 10 Gigabit Ethernet
• Frequency Bandwidth: 500 MHz
• Housing Material: Die-cast Zinc Alloy
• Contact Material: Phosphor Bronze with 50µ" Gold Plating
• Wire Gauge: 22-26 AWG Solid/Stranded
• Wiring Standard: T568A/B
• Compatibility: Standard keystone faceplates and panels
• RJ45 Mating Cycles: 750
• IDC Termination Cycles: 200
• Operating Temperature: -10°C to +60°C
• Certifications: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

For optimal performance, use with Cat.6A STP patch cables and ensure proper grounding of the shielding. Suitable for both solid and stranded conductors.
