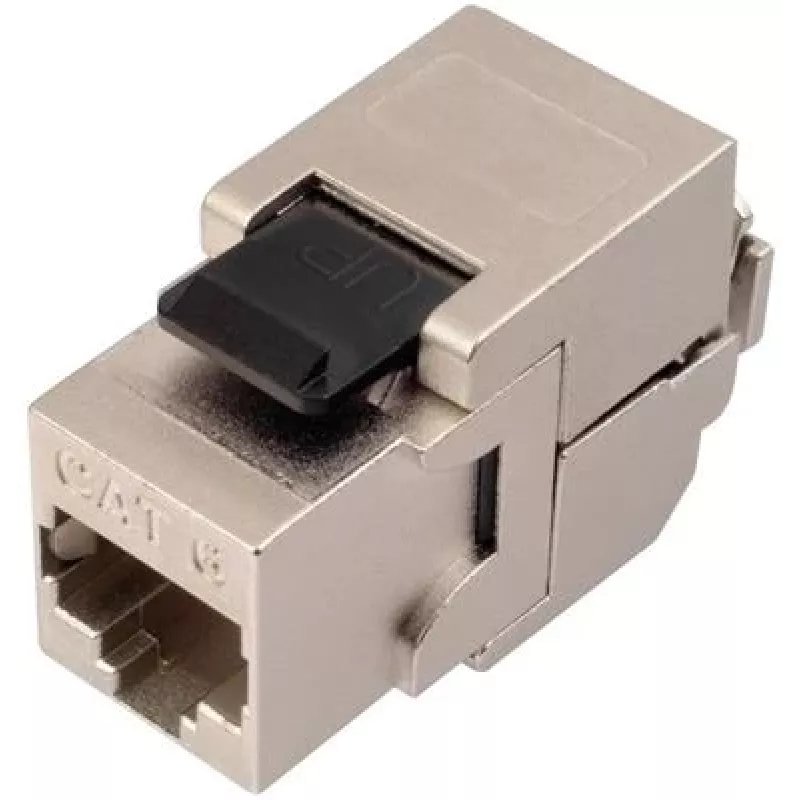

SOLARIX Cat.6 STP RJ45 Keystone Module, IDC Χωρίς Εργαλεία, Μαύρο

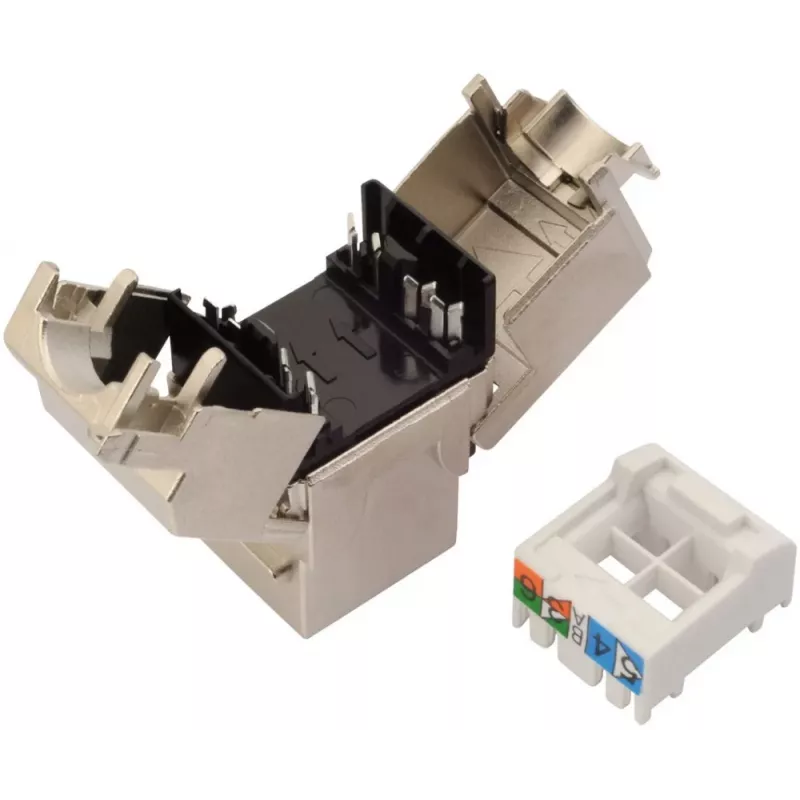

The SOLARIX SXKJ-6-STP-BK-SA is a high-performance Cat.6 STP (Shielded Twisted Pair) keystone module designed for professional network installations. Featuring a tool-less IDC termination mechanism, it enables fast and reliable cable termination without the need for a punch-down tool, making it ideal for both structured cabling and on-site repairs.

Advantages

Tool-less design reduces installation time and eliminates the need for specialized tools. The robust zinc alloy housing provides excellent shielding against electromagnetic interference (EMI), ensuring stable data transmission. Gold-plated contacts (50µm) guarantee reliable connectivity and corrosion resistance over many mating cycles.

Suitable for

• Structured cabling in data centers and server rooms
• Enterprise and home network installations
• PoE applications including PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt)
• 10/100/1000BASE-T Ethernet networks

Key specifications

• Category: Cat.6
• Shielding: STP (Shielded Twisted Pair)
• Connector: RJ45 (8P8C) front, tool-less IDC rear
• Wiring standard: T568A/B
• Housing material: Zinc alloy
• Colour: Black
• Contact plating: Gold (50µm)
• Compatibility: Standard keystone port (19.2 x 14.9 mm)
• Mating cycles: ≥ 750
• Termination cycles: ≥ 20
• Frequency range: Up to 250 MHz
• Standards: ISO/IEC 11801, EN 50173, ANSI/TIA-568-C.2
• Conductor gauge: 22-26 AWG solid/stranded

Recommendations

For optimal performance, use with SOLARIX patch panels and Cat.6 STP patch cables. Ensure proper grounding of the shielded system to maximize EMI protection.
