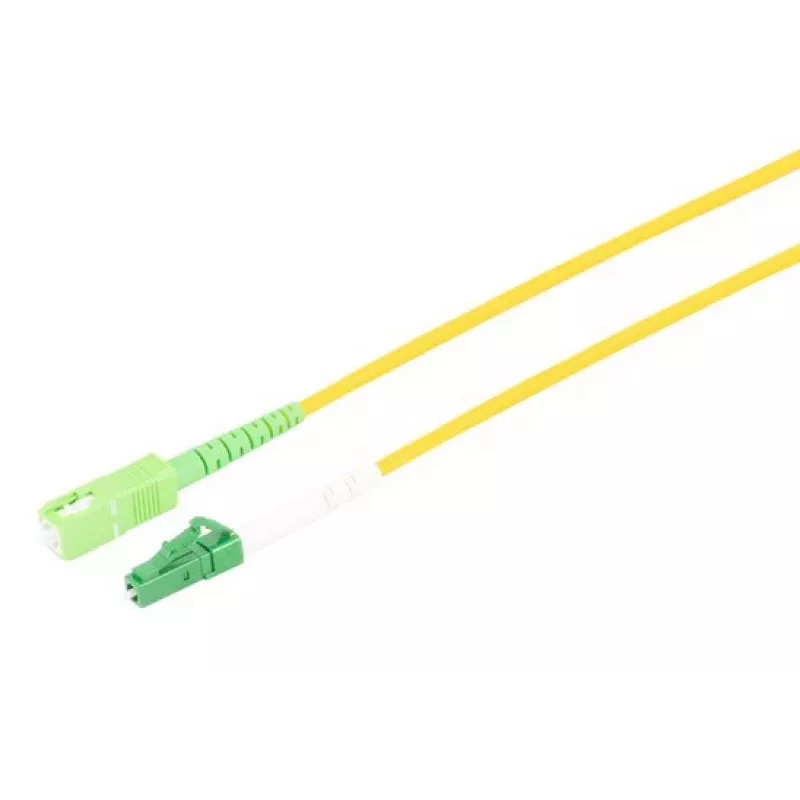

S CONN S/CONN maximum connectivity Καλώδιο Patch LWL Simplex LC/APC SC/APC OS2 - Καλώδιο - 0,5 m

High-quality fiber optic patch cable from S CONN, designed for reliable single-mode connections in data centers, telecommunications, LAN, and FTTH applications. This simplex cable features LC/APC to SC/APC connectors with angled physical contact (APC) polish for low insertion loss and high return loss.

Advantages

Low insertion loss (≤0.2 dB) and high return loss (≥60 dB) ensure excellent signal integrity. Bend-insensitive design (G.657.A1/A2) allows for flexible routing without performance degradation. LSZH jacket provides safety in enclosed spaces.

Suitable for

• Data center cabling
• Telecommunications networks
• Local area networks (LAN)
• Fiber to the home (FTTH)

Key specifications

• Fiber mode: Single-mode OS2
• Connectors: LC/APC to SC/APC
• Length: 0.5 m
• Jacket: LSZH, yellow, 3.0 mm diameter
• Core/Cladding: 9/125 µm
• Operating temperature: -20°C to +70°C

Recommendations

For optimal performance, ensure connectors are clean before installation. Compatible with standard single-mode transceivers and patch panels.
