OXT Mini Smart Dimmer Module 2 καναλιών WiFi TUYA T226

The OXT Mini Smart Dimmer Module T226 is a compact, two-channel Wi-Fi dimmer designed for in-wall installation. It enables wireless control of dimmable LED, incandescent, and halogen lighting via the Tuya Smart or Smart Life app, as well as voice commands through Amazon Alexa and Google Assistant. The module supports leading/trailing edge phase-cut dimming and is compatible with AC 100-240V supplies.

Advantages

This smart dimmer module offers easy retrofitting behind existing switches, eliminating the need for additional wiring. With two independent channels, it can control two separate lighting circuits or zones. The Tuya platform provides reliable cloud connectivity and seamless integration with a wide range of smart home ecosystems.

Suitable for

• Residential and commercial lighting control
• Retrofitting existing switch boxes for smart dimming
• Two-zone or two-circuit dimming applications
• Integration with Alexa or Google Assistant voice control

Key specifications

• Product Type: Smart Dimmer Module
• Number of Channels: 2
• Wireless Connectivity: Wi-Fi 2.4GHz (IEEE 802.11 b/g/n)
• Smart Home Platform: Tuya Smart / Smart Life
• Input Voltage: AC 100-240V, 50/60Hz
• Max Load per Channel: 100W LED, 150W Incandescent/Halogen
• Dimming Technology: Phase-cut (Leading/Trailing Edge)
• Compatible Load Types: Dimmable LED, Incandescent, Halogen
• Control Methods: App, Voice, Manual Switch
• Operating Temperature: -10°C to 40°C
• Operating Humidity: 0% to 90% RH (non-condensing)
• Material: PC V0 Fire-retardant
• Certifications: CE, RoHS
• Installation Type: In-wall (behind switch)

Recommendations

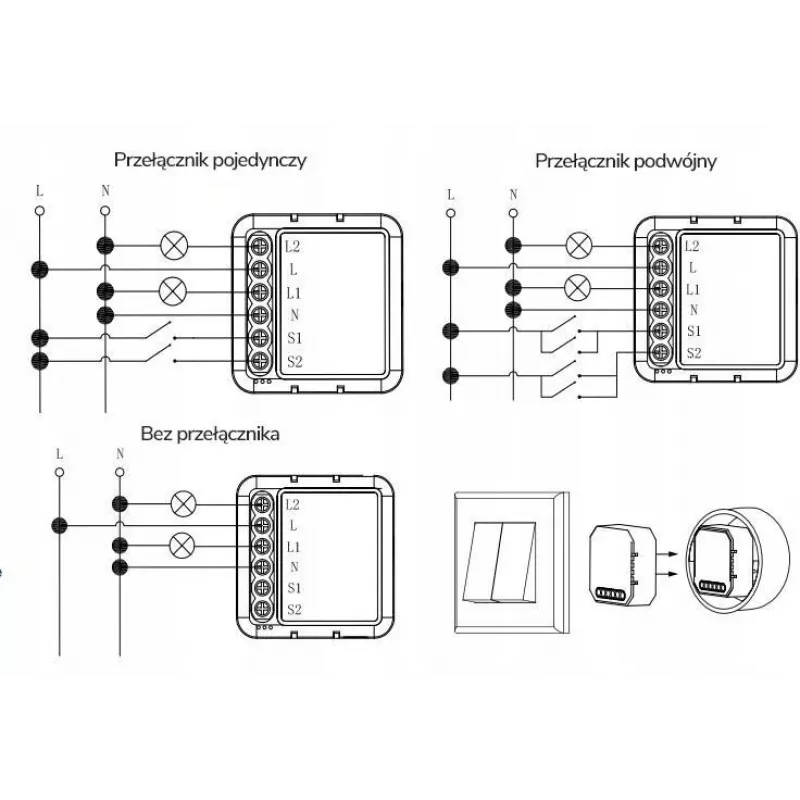

Ensure the connected lighting loads are dimmable and compatible with phase-cut dimmers. For optimal performance, use a neutral wire connection. The module should be installed by a qualified electrician in accordance with local regulations.
