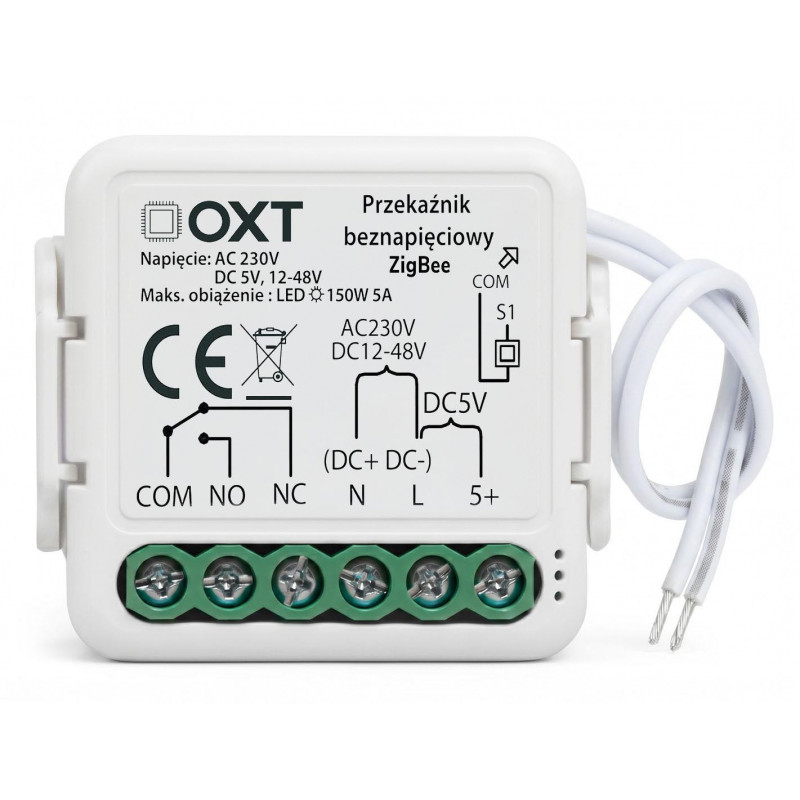

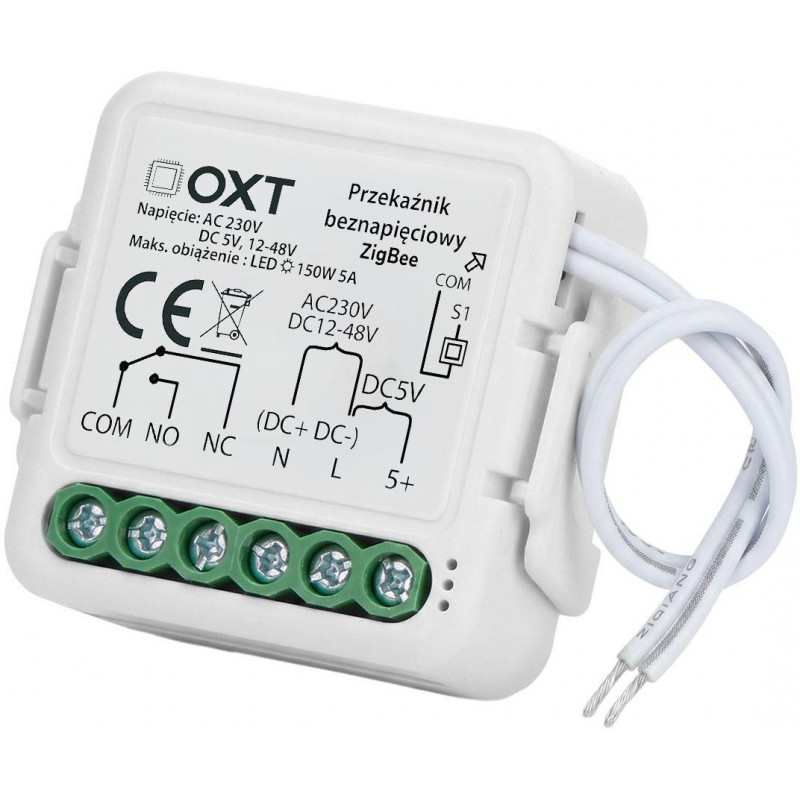

OXT T250DC Mini ZigBee Tuya ρελέ, ελεύθερης επαφής, AC 230 V / DC 5 V / 12-48 V

The OXT Mini Module Voltage-free Relay is a compact smart relay module for intelligent control of electrical devices in homes, offices, and automation systems. With its voltage-free NO/NC/COM contact, it is suitable for safely controlling gates, heaters, actuators, lighting, computers, or access control systems. It supports 230 V AC, 5 V DC, and 12–48 V DC power and integrates via ZigBee 3.0 with the TUYA Smart / Smart Life ecosystem.

Key features

• Voltage-free NO/NC/COM contact for versatile applications
• Supports 230 V AC, 5 V DC, and 12–48 V DC power
• ZigBee 3.0 communication and compatibility with TUYA Smart / Smart Life
• Operating modes: monostable, bistable, and bistable with button synchronization

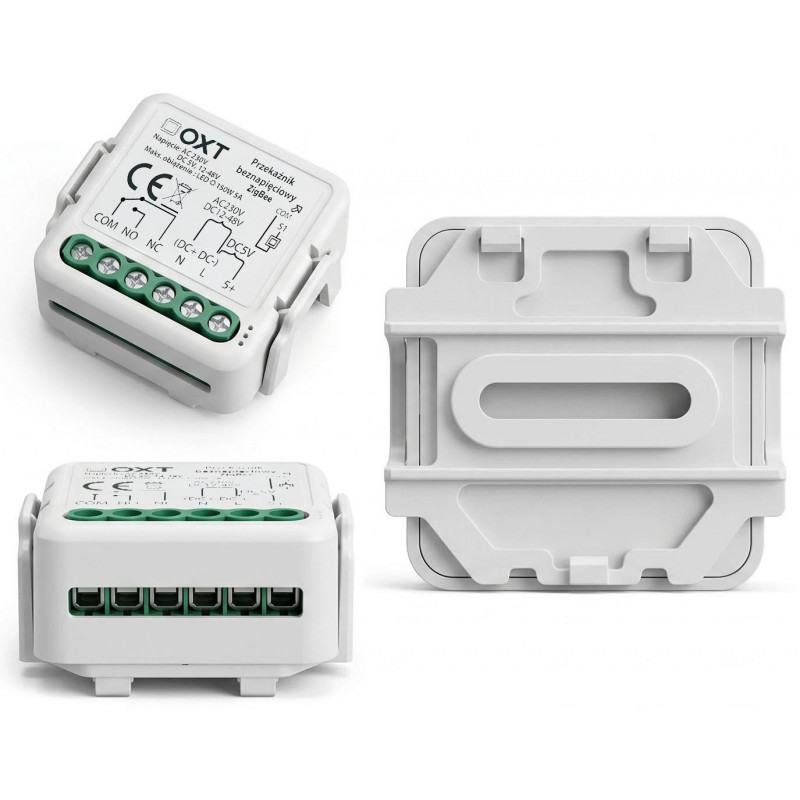

• Compact Mini housing for flush-mounted box installation
• Maximum load 10 A, LED up to 250 W

Specifications

• Brand: OXT
• MPN: T250DC
• Product type: Smart Relay Module
• Connectivity technology: ZigBee
• Power supply: AC 100–240 V, DC 5 V, DC 12–48 V
• Communication protocol: ZigBee 3.0
• Applications: TUYA Smart, Smart Life
• Relay type: voltage-free, dry contact
• Maximum load current: 10 A
• Maximum lighting power: LED 250 W
• Dimensions: 39 × 39 × 20 mm
• Protection degree: IP20
• Operating temperature: -10°C to +40°C
