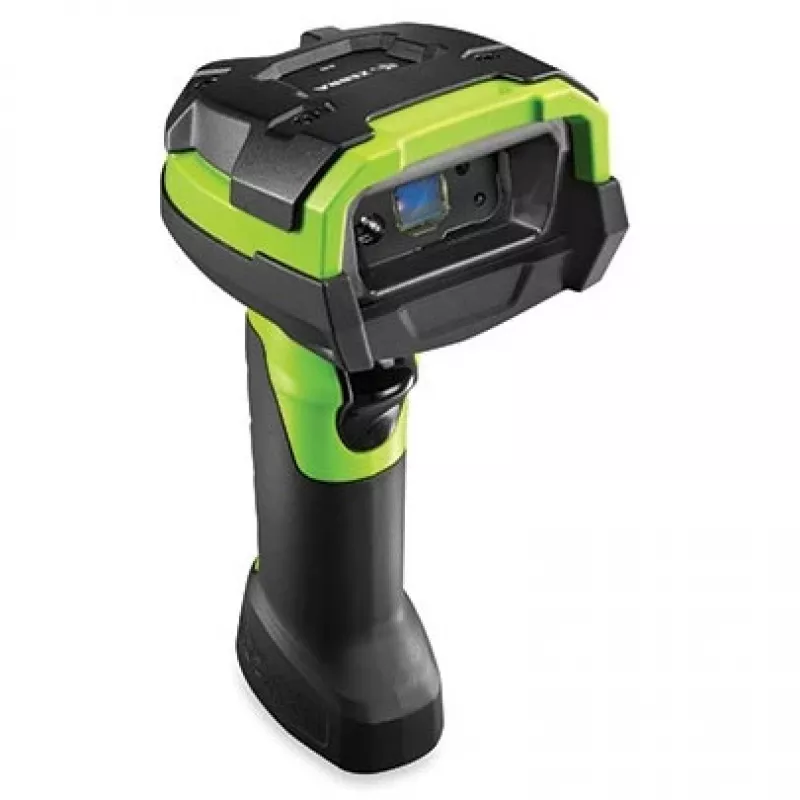

Origin Storage Zebra DS3678-ER Φορητός σαρωτής - USB - με σταθμό φόρτισης

The Zebra DS3678-ER handheld bar code reader is an ultra-rugged 1D/2D scanner designed for demanding warehouse environments. Available in corded (DS3608-ER) and cordless (DS3678-ER) variants, it captures barcodes from near contact up to 70 ft. / 21.4 m, tolerates harsh conditions with an IP67 rating, and offers a range of connectivity options for flexible deployment.

Advantages

The DS3678-ER delivers extended-range scanning of virtually any 1D or 2D barcode in a wide range of conditions, including damaged, dirty, under shrinkwrap or poorly printed codes. Its ultra-rugged design provides dust-tight, sprayproof and waterproof protection (IP67) and a sealed cradle (IP65) for cordless configurations. Cordless models include a long-lasting 3100 mAh Lithium‑Ion battery and offer wireless operation up to approximately 100 meters, while wired models provide reliable RS-232 and USB connectivity. Complementary Zebra management tools enable remote configuration, firmware updates, data formatting and battery monitoring.

Suitable for

• Scanning picklists, labels and small codes at close range
• Reading pallet and location barcodes on high warehouse racks
• Operations in cold storage, wet or dusty environments
• High-throughput picking, receiving and inventory tasks

Key specifications

• Scanner type: 1D/2D handheld
• Scan range: up to 70 ft. / 21.4 m
• Ingress protection: IP67 (scanner), IP65 (cradle)
• Sensor type: Laser
• Connectivity: Wired & wireless (RS-232, USB and cordless options)
• Battery (cordless): 3100 mAh Lithium‑Ion
• Supported 1D codes: U.P.C., Plessey, MSI, GS1-128 (UCC/EAN-128), Code 93, Code 39, Code 128, Code 11, Codabar
• Supported 2D codes: Composite Codes, Aztec, QR Code, Data Matrix, Han Xin, MaxiCode, Micro QR, MicroPDF417, PDF417, TLC-39
• Weight: 0.436 kg
• Colour: Black, Green

How to use

Point the DS3678-ER at the barcode and press the trigger to scan; the device reads codes from near contact to long range without special settings. For cordless models, ensure the battery is charged and the scanner is paired with the host via the chosen communication method. Use Zebra’s management software to configure output formatting so scanned data transmits correctly to your business applications.

Recommendations

For reliable performance, keep the scanner and cradle contacts clean, charge the battery per manufacturer guidance, and use Zebra’s remote management tools to apply firmware updates and monitor battery health. In extreme cold or wet environments, verify seals and mounting to maintain the IP-rated protection.
